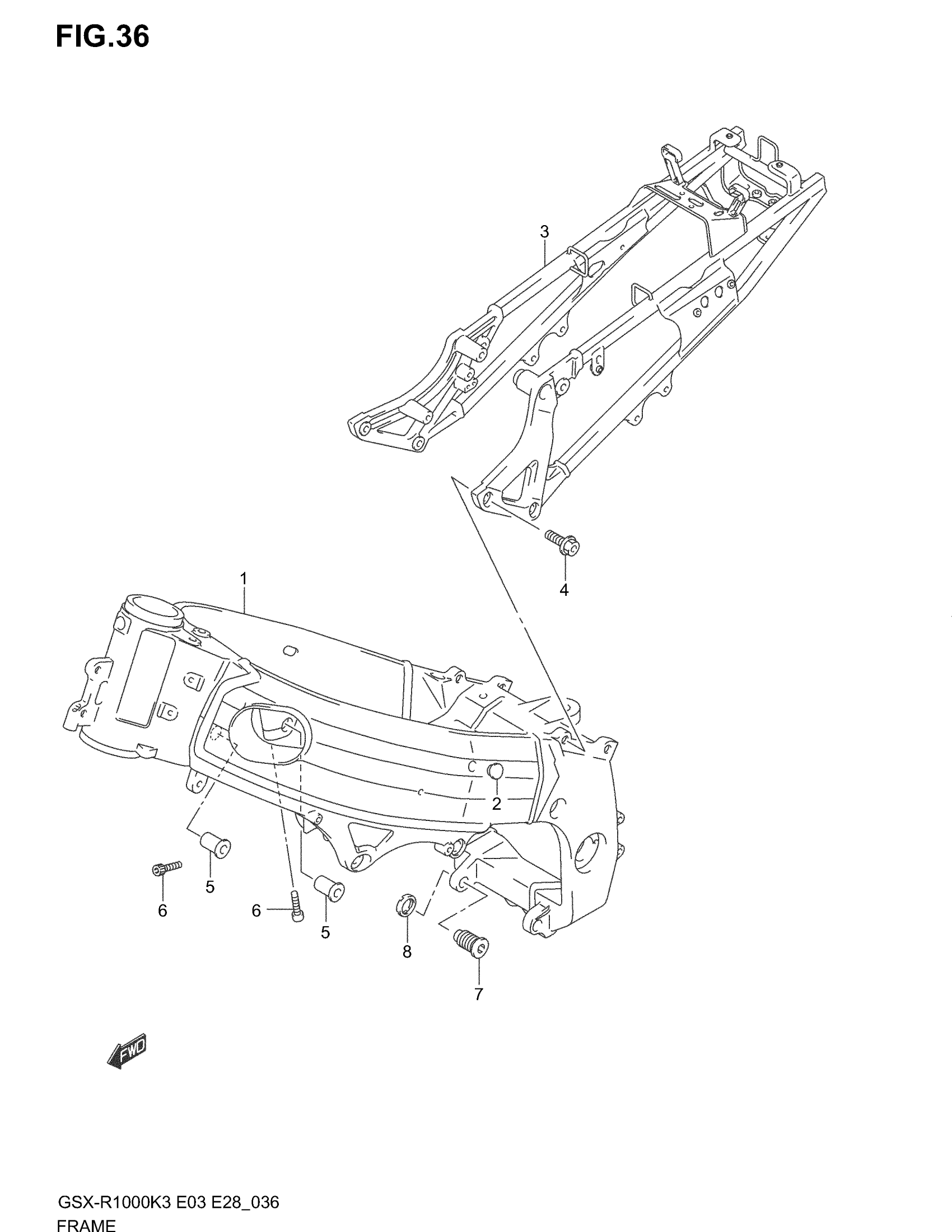

Suzuki GSX-R1000 (2004) FRAME Diagram

#

Description

Price

1

FRAME (BLACK) | MODEL K3 This part replaces 41100-18G00-YAP.

41100-18G01-YAP

Unavailable

1

FRAME (BLACK) | MODEL K4

41100-18G01-YAP

Unavailable

2

CUSHION,NET COV This part replaces 43585-18G00.

43585-18G01

$4.15

3

RAIL, SEAT (BLACK)

41200-18G00-YAP

Unavailable

4

BOLT,SEAT RAIL This part replaces 41233-18G00.

41233-18G20

$7.92

5

SPACER, ENGINE MOUNT

41911-40F01

$21.23

6

BOLT, SPACER This part replaces 09106-08149.

09106-08170

$3.19

7

BOLT, CRANKCASE ADJUST

41921-35F00

$61.88

8

NUT, CRANK CASE ADJUST

41922-18G00

$41.45
