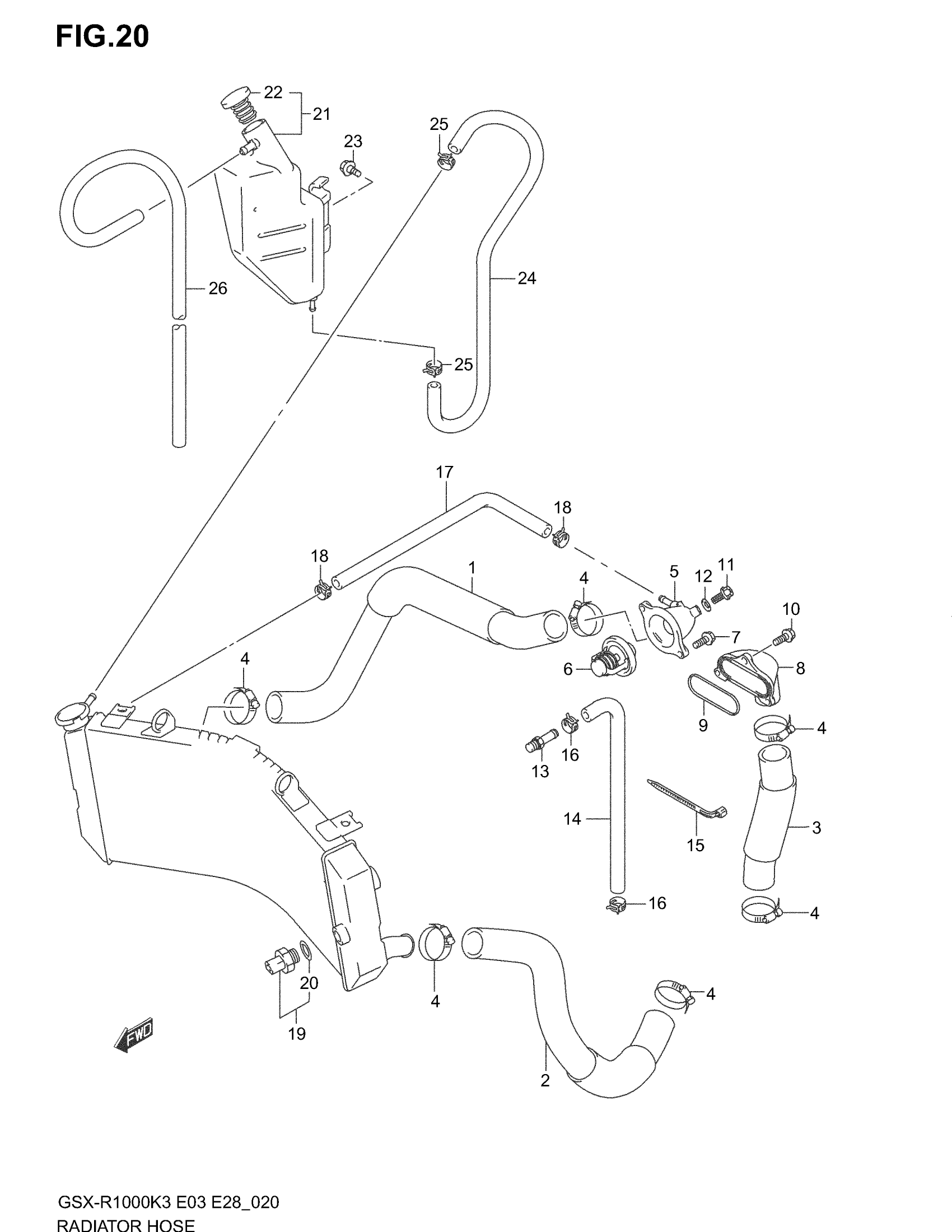

Suzuki GSX-R1000 (2004) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-40F00

$67.75

2

HOSE, RADIATOR OUTLET

17852-40F10

$43.92

3

HOSE, RADIATOR OUTLET

17853-40F10

$22.99

4

CLAMP

09402-38511

$11.00

5

COVER, THERMOSTAT

17661-35F00

$57.22

6

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

$24.64

7

..BOLT This part replaces 01547-06203.

01547-0620B

$2.50

8

CONNECTOR This part replaces 17861-33E10.

17861-33E20

$21.58

9

O RING

17863-33E00

$3.86

10

..BOLT This part replaces 01547-06203.

01547-0620B

$2.50

11

BOLT, THERMOSTAT COVER AIR

17568-50F00

$6.32

12

GASKET, AIR BOLT (6.4X11.5X0.8)

09168-06026

$2.88

13

UNION, BYPASS

09362-09011

$7.84

14

HOSE, WATER BYPASS

17854-40F00

$25.87

15

CLAMP, BYPASS HOSE

09407-18402

$2.29

16

CLIP This part replaces 09401-12409.

09401-12414

$3.09

17

HOSE, WATER BYPASS NO.2 (5X11X600) | L:600!500

09352-50111-600

$11.11

18

CLIP (ID:10.5,H:8)

09401-10409

$2.37

19

SWITCH,RDTR FAN | Includes Item(s) 20 This part replaces 17680-33E00.

17680-33E01

$46.33

20

O RING

17689-50F00

$2.63

21

TANK ASSY, RESERVOIR | Includes Item(s) 22

17910-18G00

Unavailable

22

.CAP,RESERVOIR TANK

17931-02FA0

$5.32

23

BOLT

09111-06085

$4.28

24

HOSE, RESERVOIR TANK INLET

17981-18G00

$14.57

25

CLIP

09401-08411

$1.82

26

HOSE, RSVR TANK INLET This part replaces 17982-18G00.

17900-44810

$12.59
