2004 Suzuki GSX-R1000 Cam Chain Diagram

← All diagrams

Find the part on the Cam Chain diagram for your 2004 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

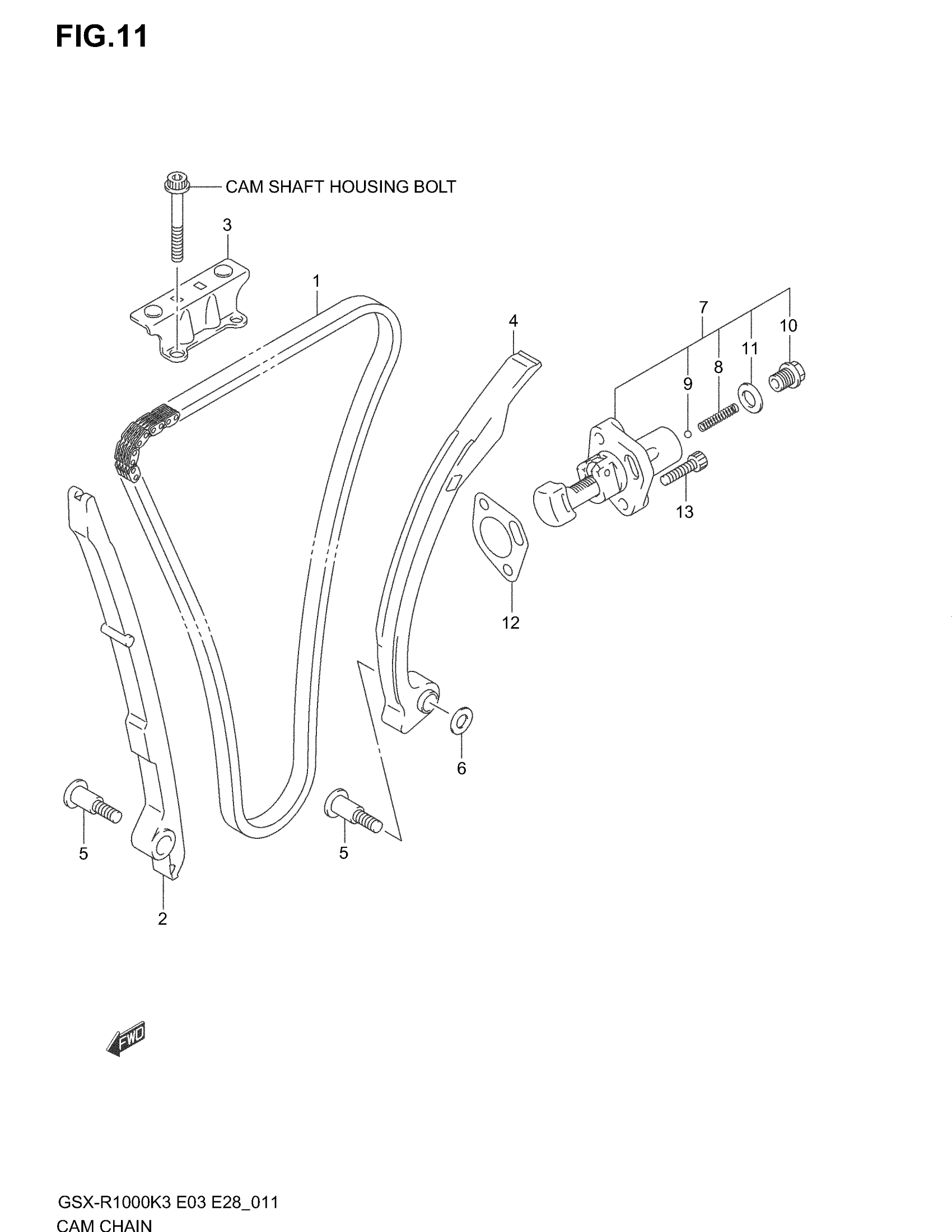

2004 Suzuki GSX-R1000 Cam Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$152.55

In stock

2

1

$53.18

In stock

4

1

$66.38

In stock

5

BOLT

12812-26B02

2

$9.53

In stock

6

WASHER

12813-30G00

1

$5.10

In stock

8

SPRING

12831-40F00

1
Out of stock

9

BALL

12839-35F00

1

$4.36

In stock

10

PLUG

12833-05A00

1

$21.62

In stock

11

GASKET

12837-24F10

1

$4.76

In stock

12

GASKET, ADJUSTER

12837-18G00

1

$4.76

In stock

13

BOLT This part replaces 07130-06253.

07130-0625B

2
Out of stock
