2004 Suzuki GSX-R1000 Crankcase Cover Diagram

← All diagrams

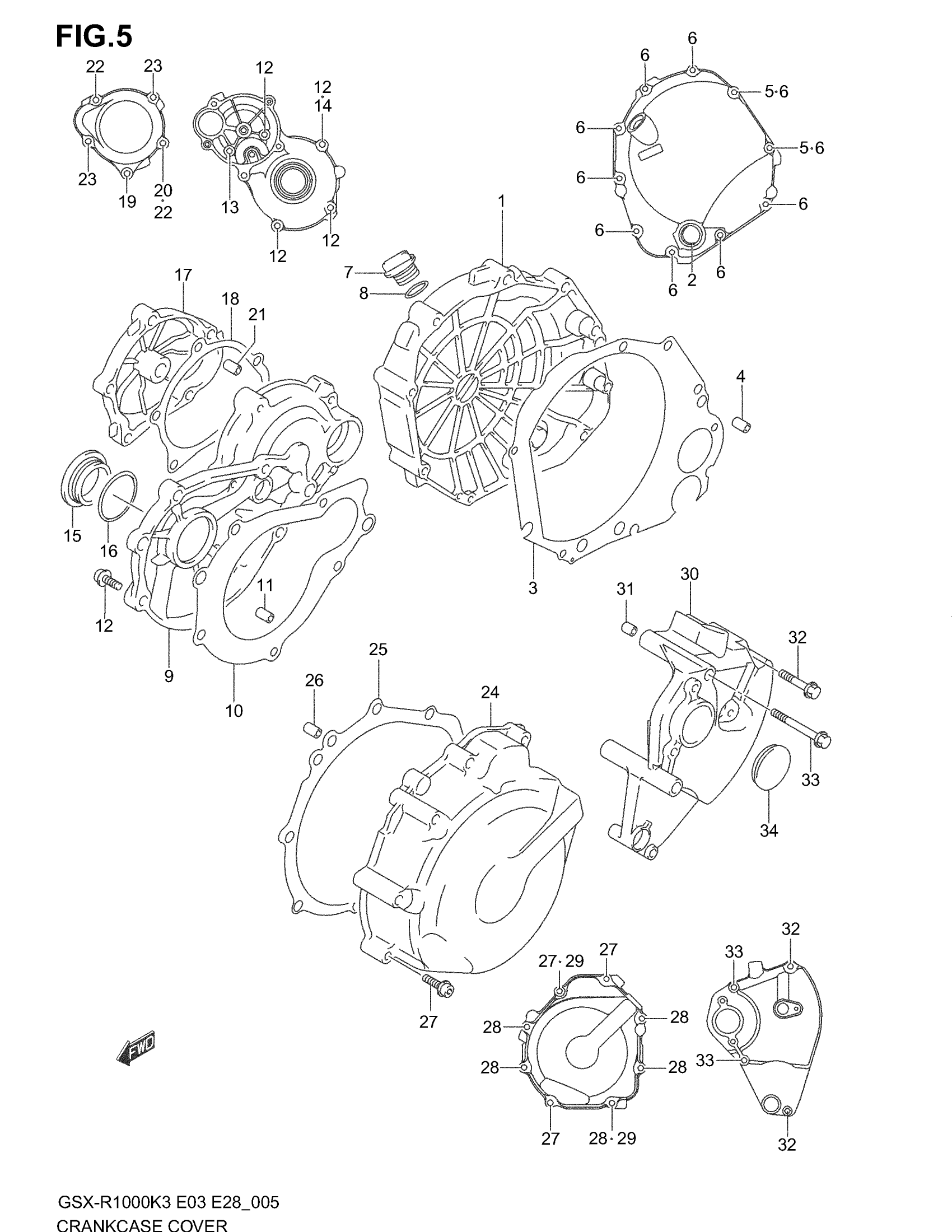

Find the part on the Crankcase Cover diagram for your 2004 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki GSX-R1000 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-40F00

1
Out of stock

2

LENS, OIL LEVEL

11971-33210

1
Out of stock

3

.GASKET, CLUTCH COVER This part replaces 11482-40F00.

11482-40F10

1
Out of stock

4

PIN

04211-09189

2
Out of stock

5

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

6

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

10
Out of stock

7

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

8

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

9

COVER, STARTER CLUTCH

11381-35F01

1
Out of stock

10

GASKET

11491-33E02

1
Out of stock

11

PIN

04211-09149

2
Out of stock

12

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

4
Out of stock

13

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

1
Out of stock

14

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

15

PLUG, SHAFT HOLE

09259-36021

1
Out of stock

16

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

17

CAP, STARTER IDLE GEAR

11382-33E00

1
Out of stock

18

GASKET

11492-33E00

1
Out of stock

19

BOLT This part replaces 01547-06553.

01547-0655B

1
Out of stock

20

GASKET, BOLT (5.8X13X1.2)

09168-06023

1
Out of stock

21

PIN

04211-09149

2
Out of stock

22

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

2
Out of stock

23

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

2
Out of stock

24

COVER, MAGNETO | MODEL K3 This part replaces 11351-18G00.

11351-18G10

1
Out of stock

24

COVER, MAGNETO | MODEL K4 This part replaces 11351-18G01.

11351-18G10

1
Out of stock

25

GASKET

11483-18G00

1
Out of stock

26

PIN

04211-09149

2
Out of stock

27

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

3
Out of stock

28

BOLT This part replaces 01547-06453.

01547-0645B

5
Out of stock

29

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

30

COVER, ENGINE SPROCKET

11361-40F01

1
Out of stock

31

PIN

04211-09129

2
Out of stock

32

BOLT This part replaces 01547-06553.

01547-0655B

2
Out of stock

33

BOLT This part replaces 01547-06903.

01547-0690B

2
Out of stock

34

CAP, CLUTCH RELEASE ADJUST

09250-30003

1
Out of stock
