2004 Suzuki GSX-R1000 Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 2004 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

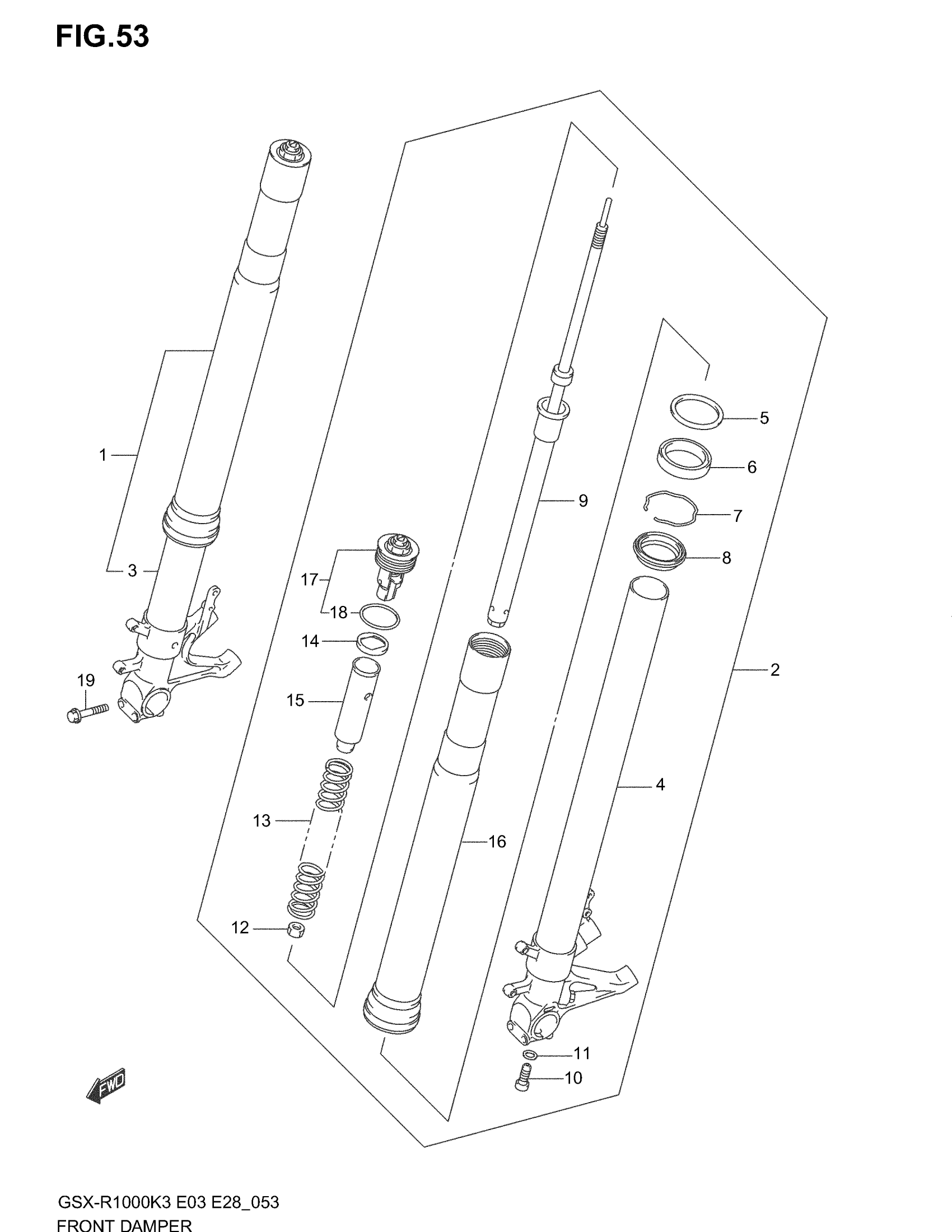

2004 Suzuki GSX-R1000 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-40F30

1
Out of stock

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 18

51104-40F30

1
Out of stock

3

TUBE,INNER,R This part replaces 51110-40F30.

51110-40F31

1
Out of stock

4

TUBE, INNER LH

51120-40F30

1
Out of stock

5

WASHER

51158-40F00

2
Out of stock

6

SEAL, OIL

51153-40F00

2
Out of stock

7

RING, STOPPER

51156-14200

2
Out of stock

8

SEAL, DUST

51173-02FA0

2
Out of stock

9

CYLINDER

51146-40F30

2
Out of stock

10

BOLT

51147-16G00

2
Out of stock

11

GASKET

51148-41310

2
Out of stock

12

NUT

51129-24F00

2
Out of stock

13

SPRING, FRONT

51171-40F30

2
Out of stock

14

GUIDE, SPRING

51158-40F30

2
Out of stock

15

SPACER, SPRING

51176-40F30

2
Out of stock

16

TUBE, OUTER

51130-40F30

2
Out of stock

17

CAP, FRONT FORK

51351-40F30

2
Out of stock

18

..O RING

62278-14100

2
Out of stock

19

BOLT

51328-40F30

4
Out of stock
