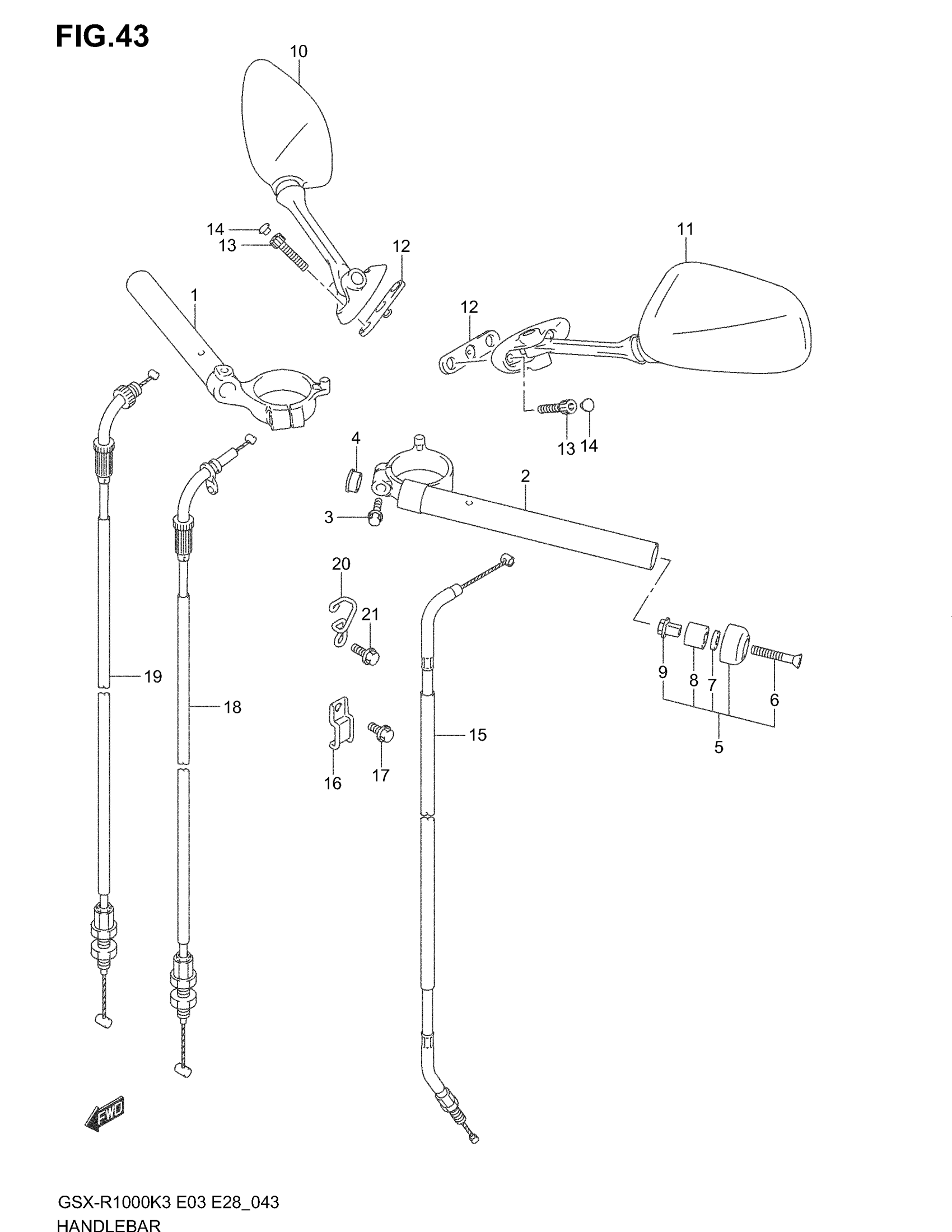

Suzuki GSX-R1000 (2004) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-18G00

Unavailable

2

HANDLEBAR, LH

56151-18G00

Unavailable

3

BOLT, HANDLEBAR

56123-35F00

$6.95

4

CAP

09250-14006

$2.00

5

BALANCER SET,HA | Includes Item(s) 6 - 9 This part replaces 56200-18840.

56200-18843

$81.88

6

SCREW This part replaces 02122-06403.

02122-0640A

$3.08

7

WASHER

09160-06131

$2.53

8

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.44

9

NUT This part replaces 56273-10G00.

56273-10G10

$7.92

10

MIRROR ASSY, REAR VIEW RH This part replaces 56500-16G00.

56500-16G10

$213.06

11

MIRROR ASSY, REAR VIEW LH This part replaces 56600-16G00.

56600-16G10

$131.45

12

CUSHION

94576-24F00

$6.14

13

BOLT This part replaces 07130-06303.

07130-0630B

$3.04

14

CAP

09250-05009

$2.10

15

CABLE ASSY, CLUTCH

58200-18G00

$24.23

16

GUIDE, CLUTCH CABLE

58621-06G00

$11.18

17

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

18

CABLE ASSY, THROTTLE NO.1

58300-18G00

$50.60

19

CABLE ASSY, THROTTLE NO.2

58300-18G10

$34.12

20

GUIDE, THROTTLE CABLE

58621-18G00

Unavailable

21

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
