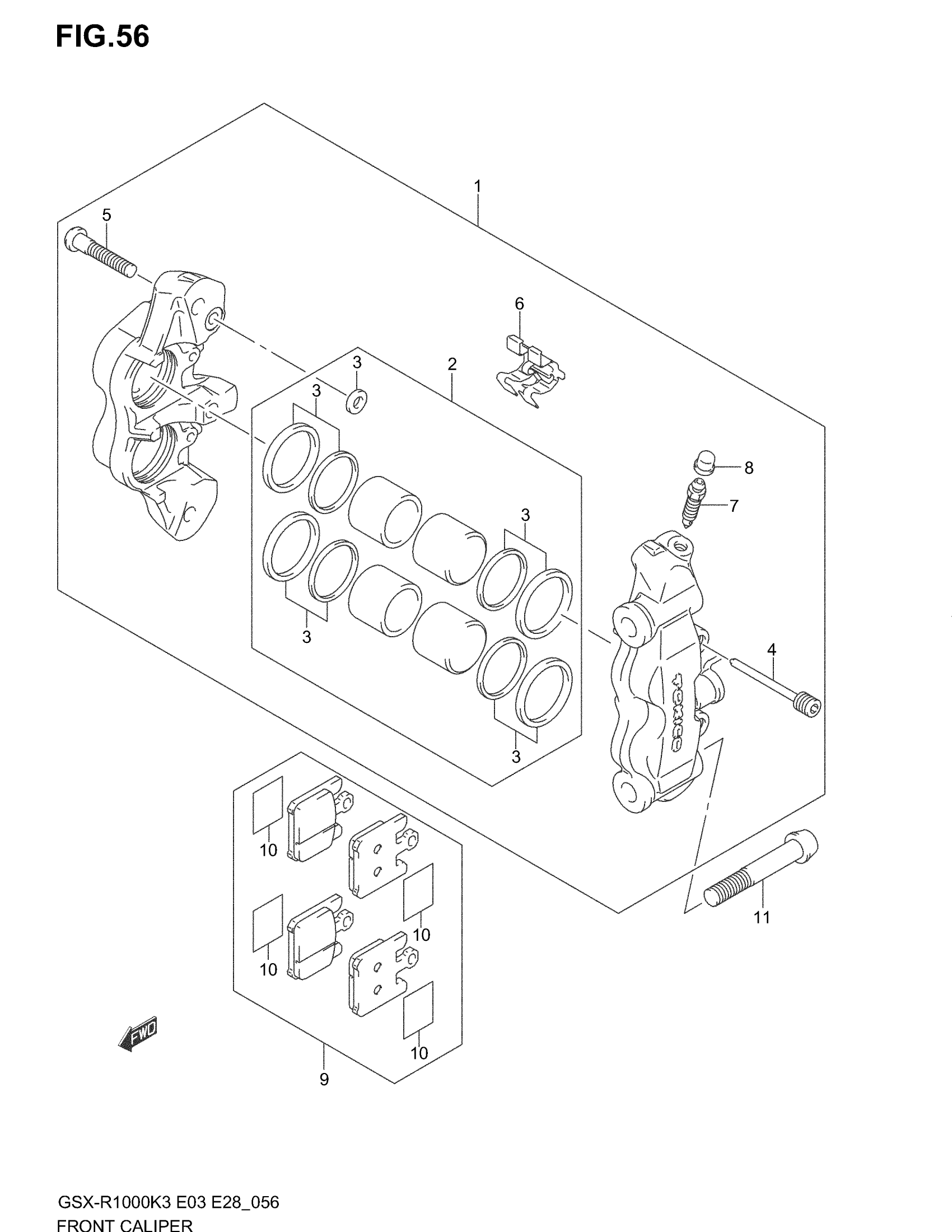

Suzuki GSX-R1000 (2004) FRONT CALIPER (MODEL K3) Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-18G00-999

Unavailable

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 8

59300-18G00-999

Unavailable

2

PISTON SET

59300-35850

Unavailable

3

SEAL SET, PISTON

59300-18820

$57.68

4

PIN, PAD

59141-18G00

$35.53

5

BOLT

59145-18G00

$11.20

6

SPRING, PAD

59151-18G00

Unavailable

7

BLEEDER

59121-18410

$7.99

8

CAP

55156-66310

$4.73

9

PAD SET | Includes Item(s) 10

59100-18851

Unavailable

10

TAPE

59181-18G00

Unavailable

11

BOLT

09106-10076

$4.42
