2002 Suzuki GSX-R1000 Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

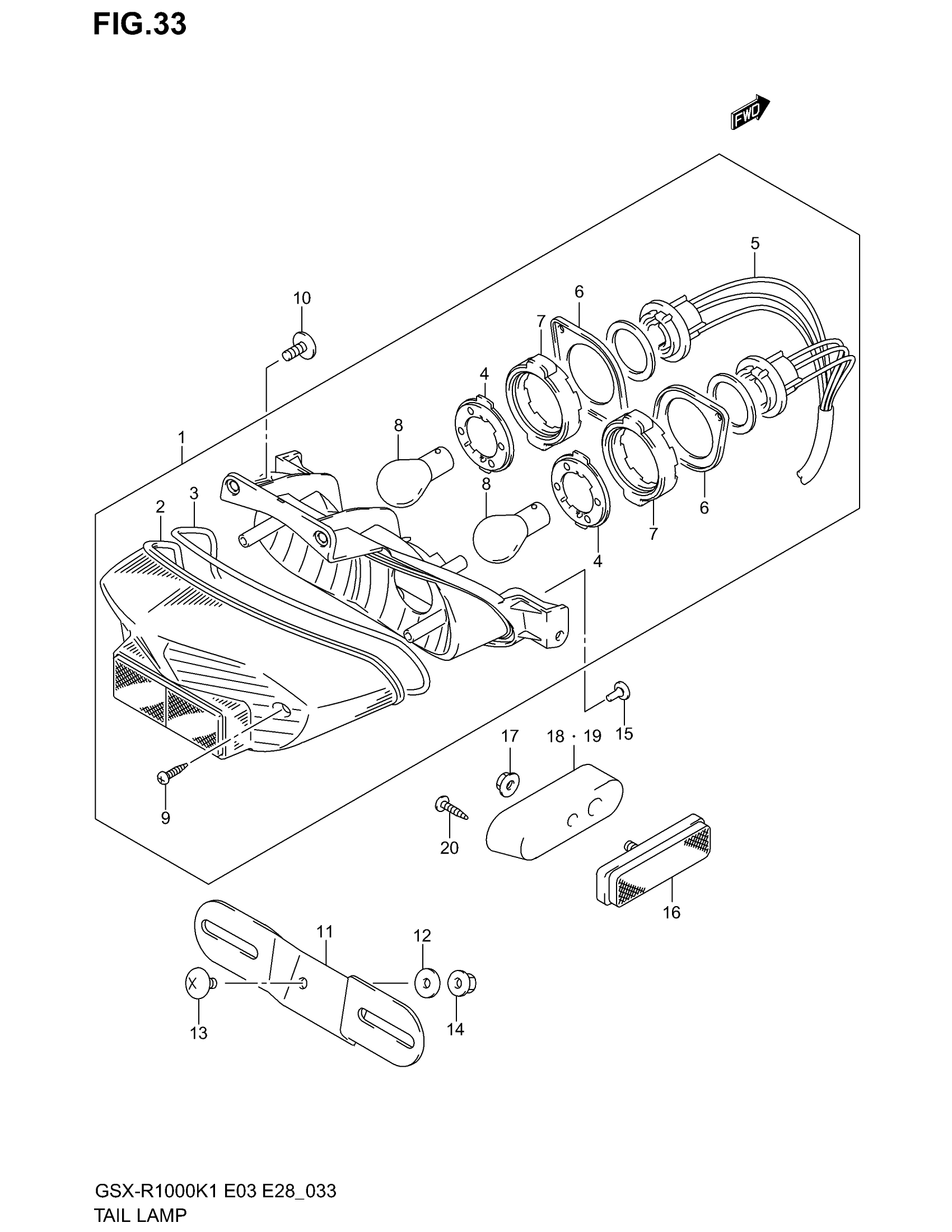

2002 Suzuki GSX-R1000 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 9

35710-35F31

1
Out of stock

2

LENS

35712-35F30

1
Out of stock

3

GASKET

35713-35F00

1
Out of stock

4

PLATE, NO.1

35716-48B21

2
Out of stock

5

SOCKET & CORD

35718-35F00

1
Out of stock

6

PLATE, NO.2

35736-48B21

2
Out of stock

7

CUSHION

35765-48B21

2
Out of stock

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

2
Out of stock

9

SCREW

03211-04207

2
Out of stock

10

SCREW This part replaces 02142-05103.

02142-0510B

4
Out of stock

11

BRACKET, LICENSE PLATE

35927-35F00

1
Out of stock

12

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

13

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

14

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

15

CUSHION, LICENSE PLATE

09321-06026

1
Out of stock

16

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

2
Out of stock

17

NUT This part replaces 08316-10053.

08316-1005A

2
Out of stock

18

BRACKET, REAR SIDE RH

35978-40F00

1
Out of stock

19

BRACKET, REAR SIDE LH

35979-40F00

1
Out of stock

20

SCREW This part replaces 03541-04163.

03541-0416A

4
Out of stock
