2002 Suzuki GSX-R1000 Signal Generator Diagram

← All diagrams

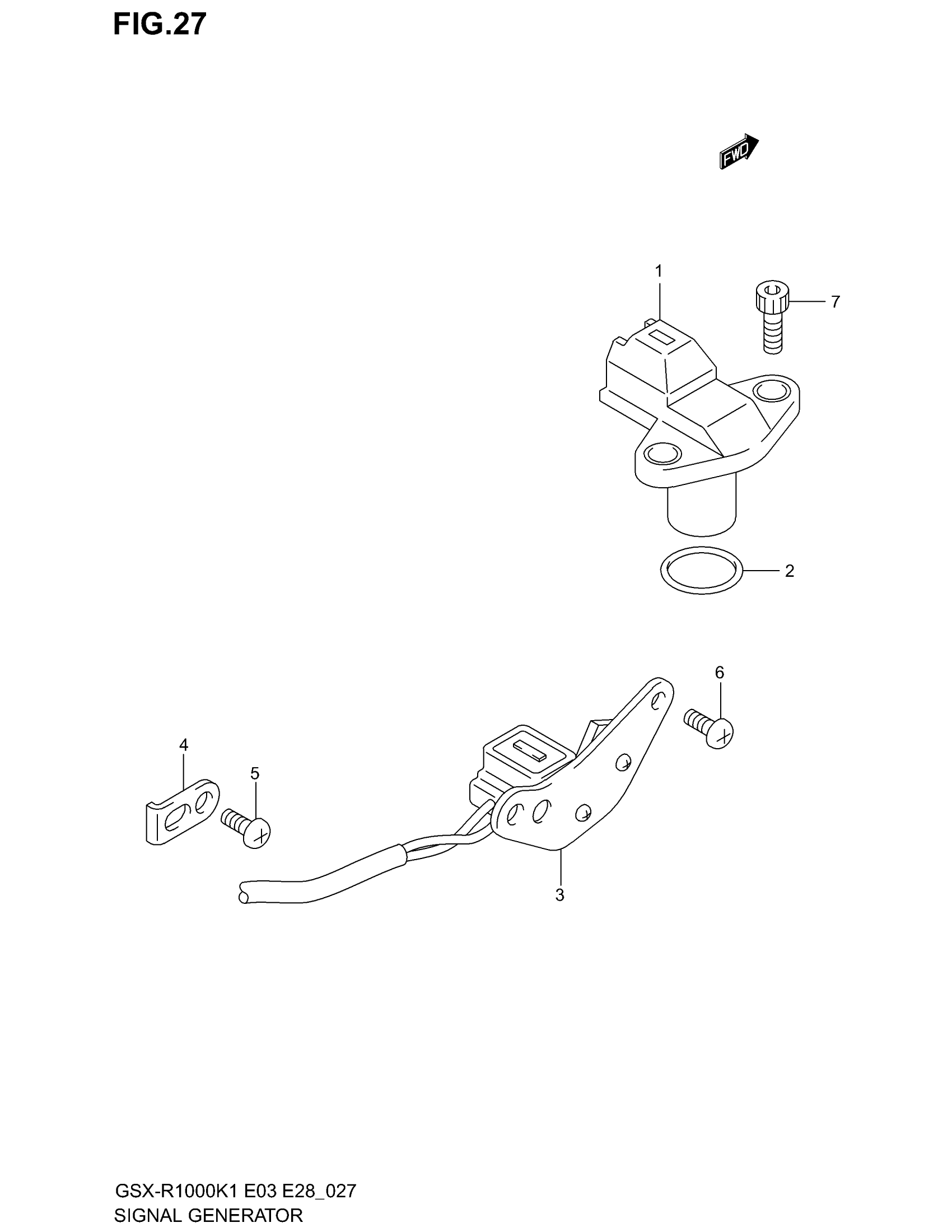

Find the part on the Signal Generator diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki GSX-R1000 Signal Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$167.32

In stock

2

PACKING

32161-02F00

1

$10.97

In stock

4

CLAMP, SIGNAL GENERATOR

33115-33E00

1
Out of stock

5

1

$1.49

In stock

6

2

$1.49

In stock

7

BOLT This part replaces 07130-06163.

07130-0616B

2
Out of stock
