2002 Suzuki GSX-R1000 Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

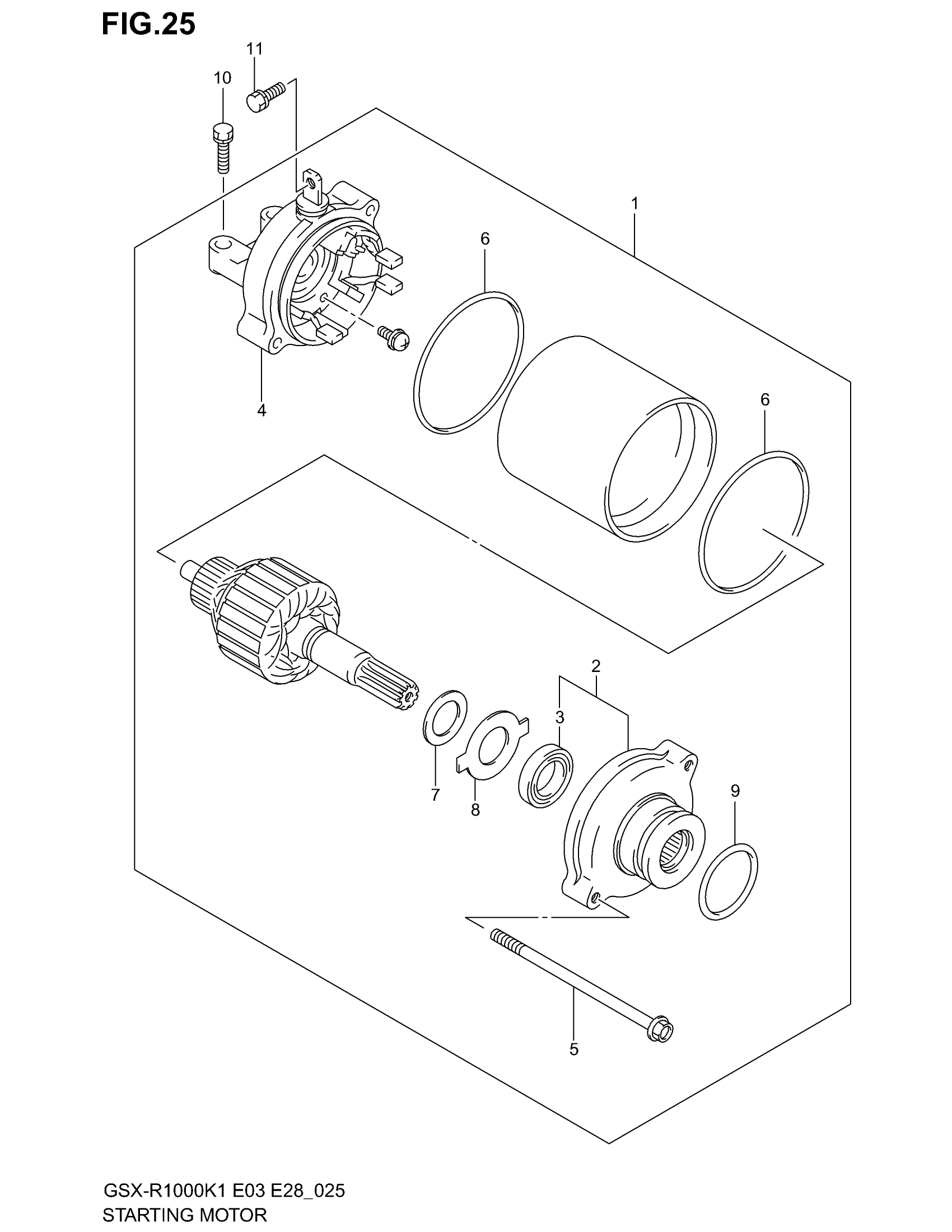

2002 Suzuki GSX-R1000 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$737.37

In stock

2

1

$129.27

In stock

3

OIL SEAL

31153-49210

1

$27.32

In stock

4

1

$169.70

In stock

5

BOLT

31281-40F00

2

$11.37

In stock

6

O RING

31264-32C10

2

$16.03

In stock

7

WASHER, PLATE

31361-38300

1

$2.25

In stock

8

PLATE, LOCK

31361-32C10

1
Out of stock

9

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

10

2

$1.77

In stock

11

SCREW (5X8)

09137-05004

1

$2.50

In stock
