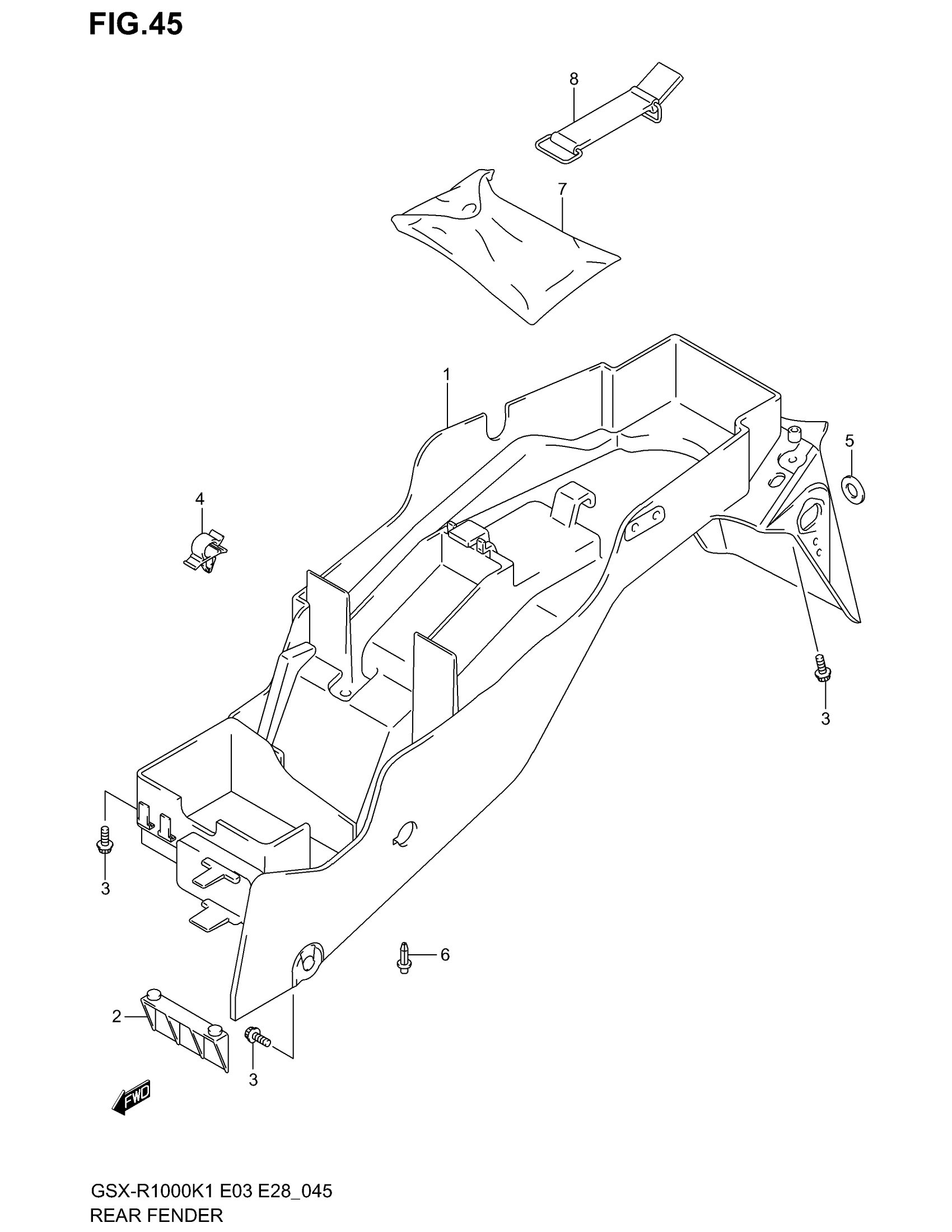

Suzuki GSX-R1000 (2002) REAR FENDER Diagram

#

Description

Price

1

FENDER, REAR | MODEL K1 This part replaces 63111-40F10.

63111-40FB0

Unavailable

1

FENDER, REAR | MODEL K2

63111-40FB0

Unavailable

2

MUD GUARD, FRONT | MODEL K1

63411-35F00

Unavailable

3

BOLT (6X18) | MODEL K1 This part replaces 63161-35F00.

09111-06081

$3.85

3

BOLT | MODEL K2

09111-06081

$3.85

4

CLAMP This part replaces 09403-05313.

18214-75F00

Unavailable

5

WASHER (6.5X18X1.0)

09160-06028

$1.43

6

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.80

7

TOOL ASSY This part replaces 09800-21039.

09800-21089

$88.40

8

BAND,TOOL This part replaces 47435-02F01.

47435-02F02

$9.40
