2002 Suzuki GSX-R1000 Footrest Diagram

← All diagrams

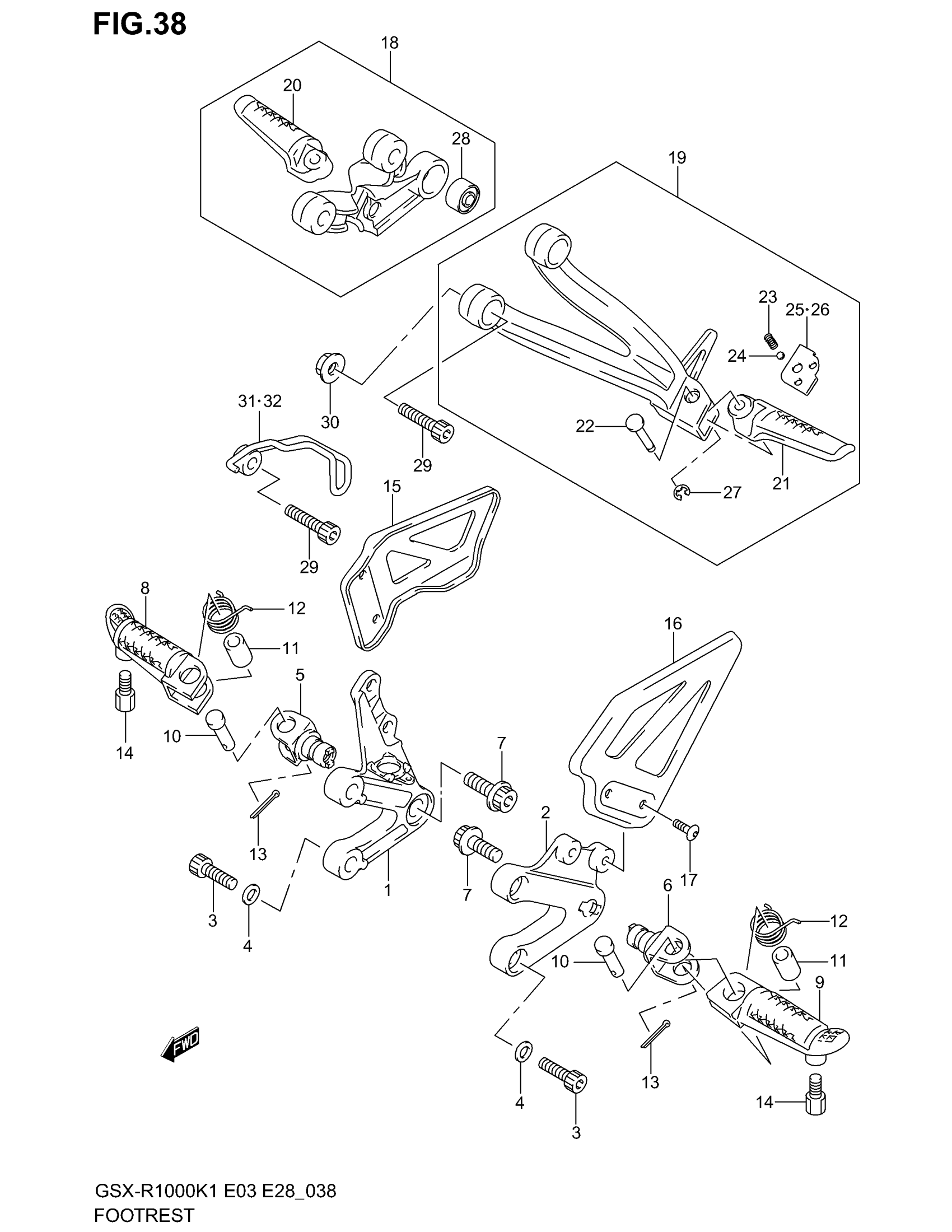

Find the part on the Footrest diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki GSX-R1000 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT FOOTREST RH

43511-35F00

1
Out of stock

2

BRACKET, FRONT FOOTREST LH

43521-35F00

1
Out of stock

3

BOLT, BRACKET

43512-35F00

4
Out of stock

4

WASHER

09164-08022

4
Out of stock

5

HOLDER, FOOTREST RH This part replaces 43530-35F01.

43530-35F10

1
Out of stock

6

HOLDER, FOOTREST LH This part replaces 43540-35F01.

43540-35F10

1
Out of stock

7

BOLT, HOLDER

09106-10064

2
Out of stock

8

BAR, FRONT FOOTREST RH

43516-35F00

1
Out of stock

9

BAR, FRONT FOOTREST LH

43526-35F00

1
Out of stock

10

PIN

09200-08057

2
Out of stock

11

SPACER

09180-08149

2
Out of stock

12

SPRING

09448-18022

2
Out of stock

13

PIN This part replaces 04111-25158.

04111-2515A

2
Out of stock

14

.BOLT,BANK SENSOR

43576-07D01

2
Out of stock

15

GUARD, FOOTREST RH

43571-35F01

1
Out of stock

16

GUARD,FR FOOTRE This part replaces 43576-35F00.

43576-35F01

1
Out of stock

17

SCREW, GUARD LH

09139-05067

2
Out of stock

18

FOOTREST ASSY, PILLION RH

43600-35F00

1
Out of stock

19

FOOTREST ASSY, PILLION LH | Includes Item(s) 20 - 28

43700-35F00

1
Out of stock

20

BAR, PILLION RH This part replaces 43611-35F00.

43611-35F01

1
Out of stock

21

BAR, PILLION LH This part replaces 43621-35F00.

43621-35F01

1
Out of stock

22

PIN

87259-85510

2

$5.33

In stock

23

SPRING

09440-05005

2
Out of stock

24

BALL

06111-07004

2
Out of stock

25

PLATE, RH

43816-33E21

1
Out of stock

26

PLATE, LH

43826-33E22

1
Out of stock

27

E RING This part replaces 08332-11043.

08332-1104A

2
Out of stock

28

BUSH This part replaces 09319-08028.

09319-08052

1
Out of stock

29

BOLT, SPACER This part replaces 09106-08149.

09106-08170

4
Out of stock

30

NUT This part replaces 08319-31083.

08319-3108A

4
Out of stock

31

BRACKET, HOOK RH | MODEL K2

43630-35F10

1
Out of stock

32

BRACKET, HOOK LH | MODEL K2

43730-35F10

1
Out of stock
