2002 Suzuki GSX-R1000 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

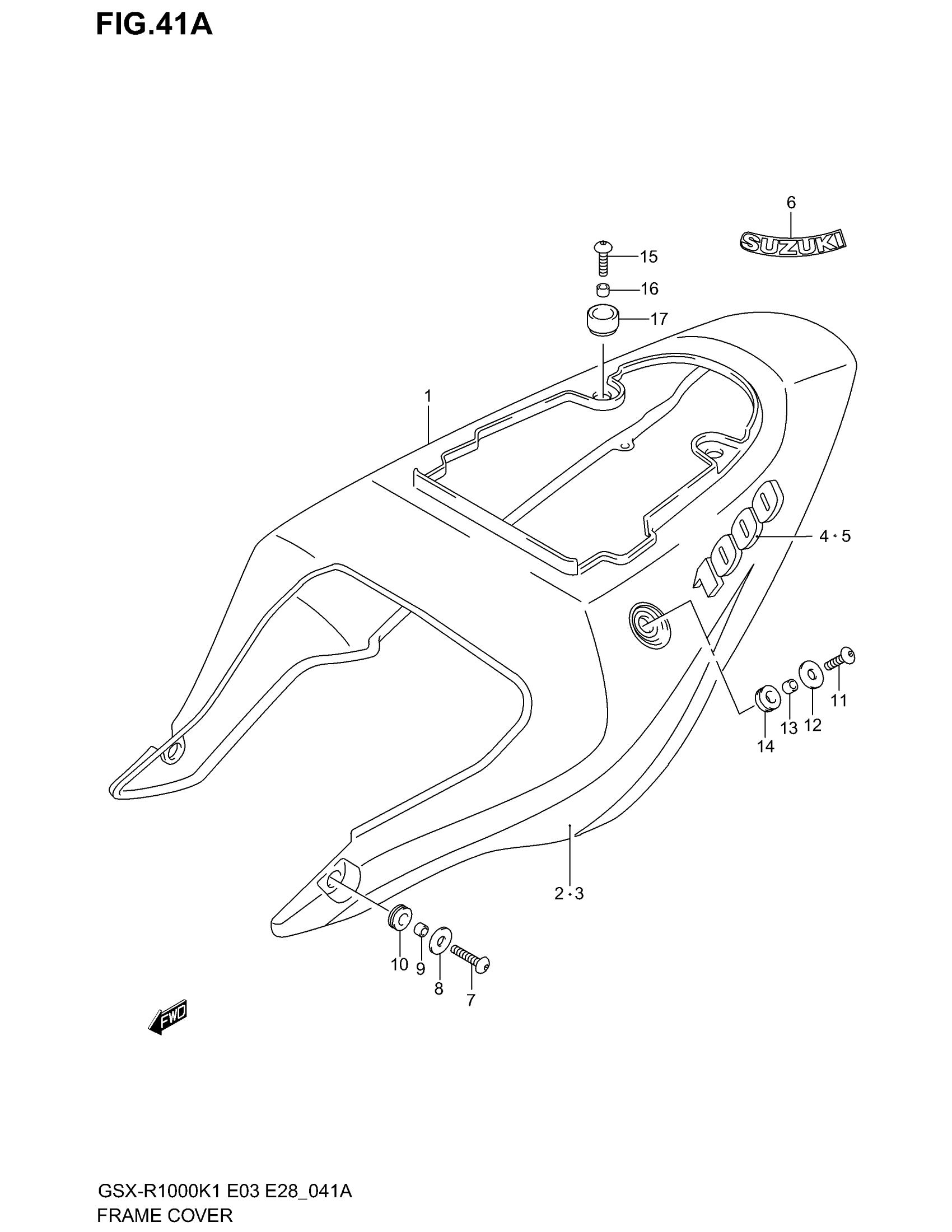

2002 Suzuki GSX-R1000 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER ASSY, FRAME | FOR L99

47100-40F10-CT5

1
Out of stock

1

COVER ASSY, FRAME | FOR M4L

47100-40F20-FP2

1
Out of stock

1

COVER ASSY, FRAME | FOR FH9; Includes Item(s) 2 - 6

47100-40F20-CY9

—
Out of stock

2

TAPE, RH (BLUE) | FOR CT5

68135-40F20-1LE

1
Out of stock

2

TAPE, RH (YELLOW) | FOR FP2

68135-40F20-Y7M

1
Out of stock

2

TAPE, RH (BLUE) | FOR CY9

68135-40F20-YC2

—
Out of stock

3

TAPE, LH (BLUE) | FOR CT5

68145-40F20-1LE

1
Out of stock

3

TAPE, LH (YELLOW) | FOR FP2

68145-40F20-Y7M

1
Out of stock

3

TAPE, LH (BLUE) | FOR CY9

68145-40F20-YC2

—
Out of stock

4

EMBLEM, "1000" | FOR CT5

68131-40F00-FS8

2
Out of stock

5

EMBLEM, "1000" | FOR FP2

68131-40F10-HU1

2
Out of stock

5

EMBLEM, "1000" | FOR CY9

68131-40F10-HU2

—
Out of stock

6

EMBLEM, "SUZUKI" (WHITE) | FOR CT5

68131-39F00-0JW

1
Out of stock

6

EMBLEM,FRAME CO | FOR FP2,CY9 This part replaces 68131-39F00-YD8.

68131-39F01-YD8

1
Out of stock

7

SCREW, FRONT

09139-06042

2

$5.47

In stock

8

WASHER

09160-06047

2

$2.05

In stock

9

SPACER

09180-06283

2
Out of stock

10

CUSHION, FRONT

47161-35F00

2

$4.90

In stock

11

SCREW, SIDE

09139-06029

2
Out of stock

12

WASHER

09160-06047

2

$2.05

In stock

13

SPACER

09180-06283

2
Out of stock

14

CUSHION, SIDE

47161-35F10

2

$6.93

In stock

15

SCREW, UPPER

09139-06029

2
Out of stock

16

SPACER

09180-06286

2
Out of stock

17

CUSHION

09320-10045

2
Out of stock
