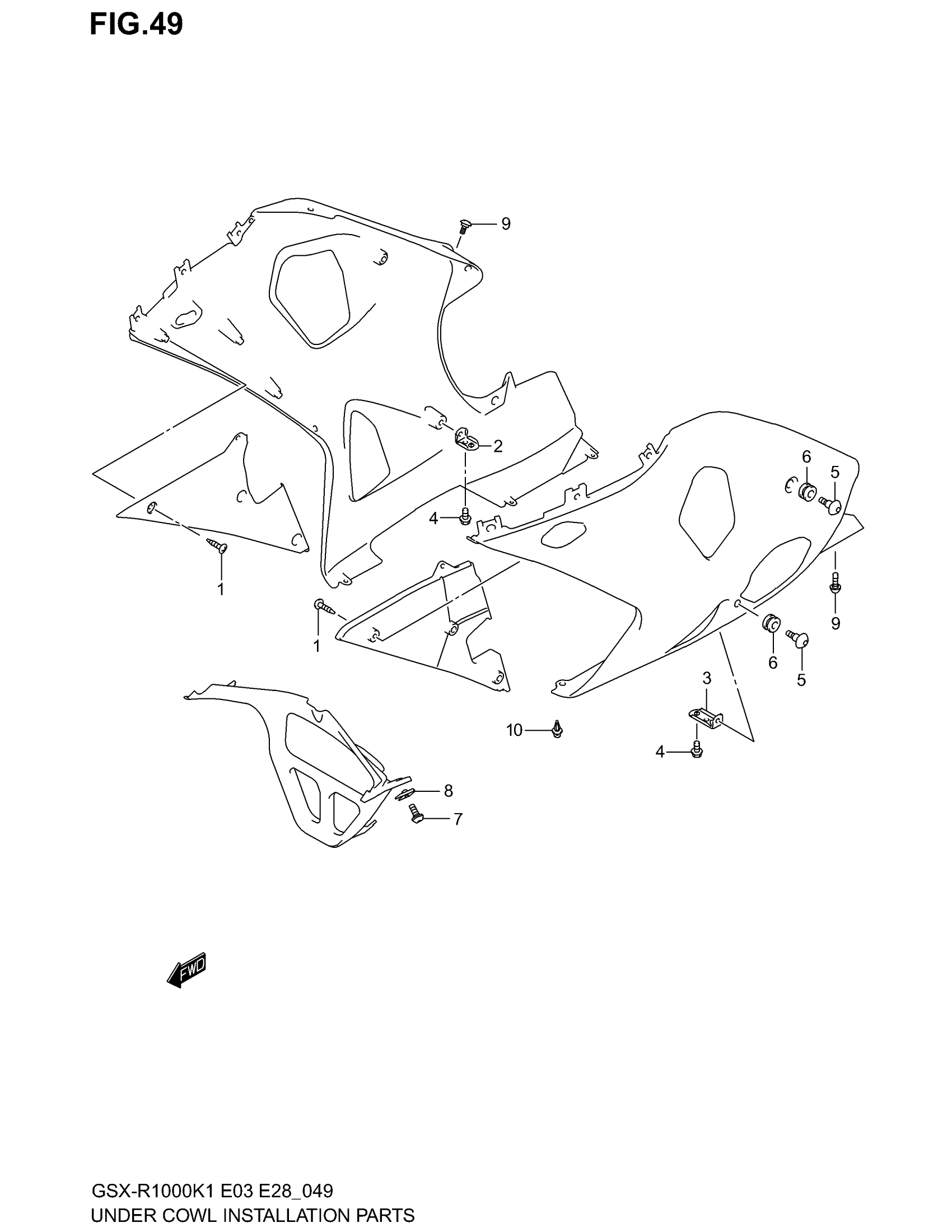

Suzuki GSX-R1000 (2002) INSTALLATION PARTS Diagram

#

Description

Price

1

SCREW This part replaces 03541-05123.

03541-0512A

$1.41

2

BRACKET, UNDER RH

94533-33E01

$7.97

3

BRACKET, UNDER LH

94534-33E01

$8.43

4

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

5

SCREW This part replaces 09139-06087.

09139-06126

$3.75

6

CUSHION

09320-09016

$2.01

7

SCREW, COWL JOINT

09139-05064

$2.64

8

NUT COWL

94484-24F00

$3.79

9

SCREW, REAR COWL

09139-05064

$2.64

10

CLIP, UNDER COWL

94479-35F00

$5.38
