2002 Suzuki GSX-R1000 Under Bowling Diagram

← All diagrams

Find the part on the Under Bowling diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

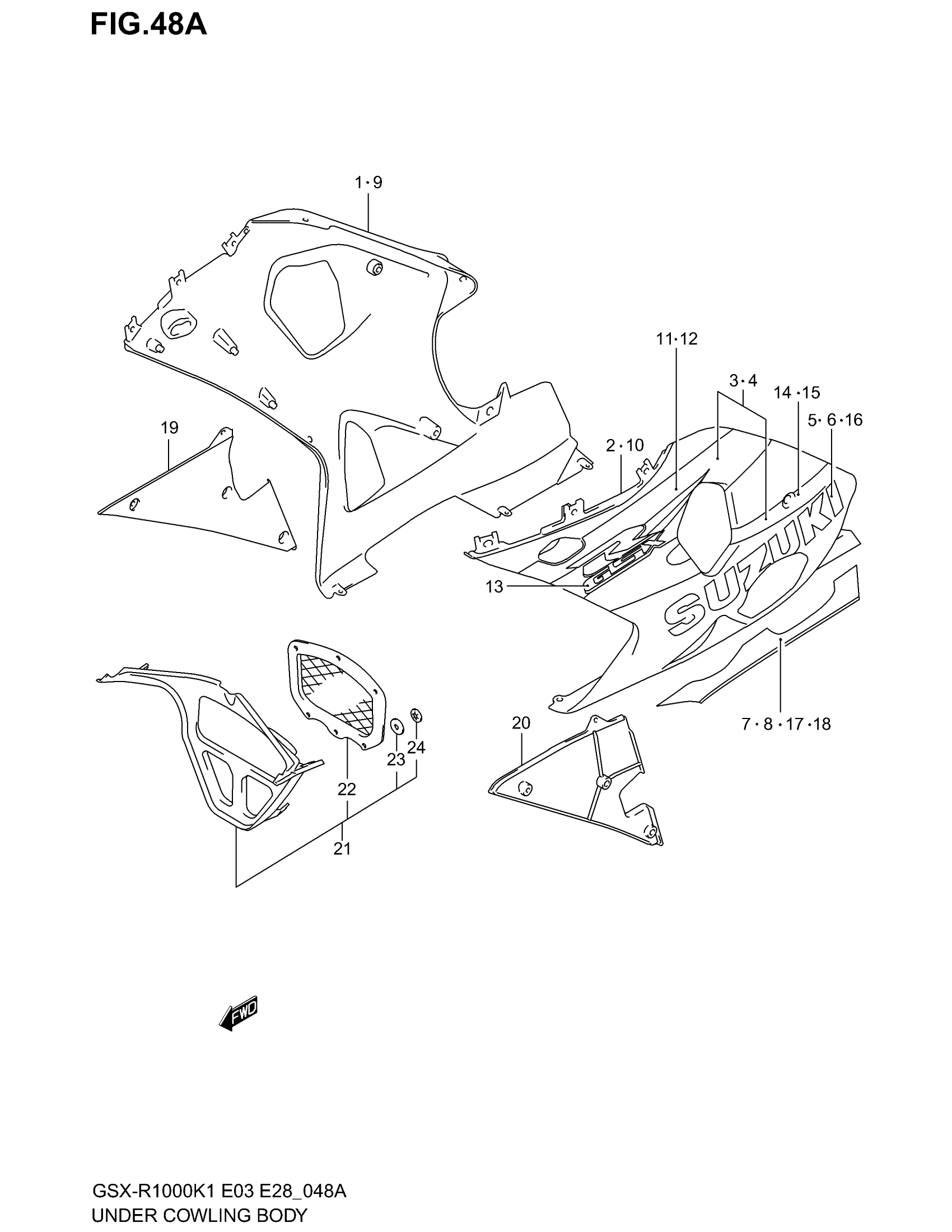

2002 Suzuki GSX-R1000 Under Bowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWL ASSY, UNDER RH (BLUE) | FOR L99

94407-40F20-1LE

1
Out of stock

2

COWL ASSY, UNDER LH (BLUE) | FOR L99; Includes Item(s) 3 - 8

94408-40F20-1LE

1
Out of stock

3

TAPE SET, UPPER RH | FOR 1LE

68185-40F50-K8T

1
Out of stock

4

TAPE SET, UPPER LH | FOR 1LE

68195-40F50-K8T

1
Out of stock

5

EMBLEM, "SUZUKI" RH (WHITE) | FOR 1LE

68181-40F10-0JW

1
Out of stock

6

EMBLEM, "SUZUKI" LH (WHITE) | FOR 1LE

68191-40F10-0JW

1
Out of stock

7

TAPE SET, LOWER RH | FOR 1LE

68185-40F20-HD6

1
Out of stock

8

TAPE SET, LOWER LH | FOR 1LE

68195-40F20-HD6

1
Out of stock

9

COWL ASSY, UNDER RH | FOR M4L

94407-40F30-M4L

1
Out of stock

9

COWL ASSY, UNDER RH | FOR FH9

94407-40F30-FH9

—
Out of stock

10

COWL ASSY, UNDER LH | FOR M4L

94408-40F30-M4L

1
Out of stock

10

COWL ASSY, UNDER LH | FOR FH9; Includes Item(s) 11 - 18

94408-40F30-FH9

—
Out of stock

11

TAPE SET, UPPER RH | FOR M4L

68185-40F40-HD7

1
Out of stock

11

TAPE SET, UPPER RH | FOR FH9

68185-40F40-HD8

—
Out of stock

12

TAPE SET, UPPER LH | FOR M4L

68195-40F40-HD7

1
Out of stock

12

TAPE SET, UPPER LH | FOR FH9

68195-40F40-HD8

1
Out of stock

13

EMBLEM, "GSXR" RH | FOR M4L

68181-40F00-HU1

2
Out of stock

13

EMBLEM, "GSXR" RH | FOR FH9

68181-40F00-HU2

—
Out of stock

14

TAPE SET, LOWER RH | FOR M4L

68185-40F10-FP2

1
Out of stock

14

TAPE SET, LOWER RH | FOR FH9

68185-40F10-CY9

—
Out of stock

15

TAPE SET, LOWER LH | FOR M4L

68195-40F10-FP2

1
Out of stock

15

TAPE SET, LOWER LH | FOR FH9

68195-40F10-CY9

—
Out of stock

16

EMBLEM, "SUZUKI" (WHITE) | FOR M4L,FH9

68181-40F10-0JW

2
Out of stock

17

TAPE, LOWER RH | FOR M4L

68185-40F20-FP2

1
Out of stock

17

TAPE, LOWER RH | FOR FH9

68185-40F20-CY9

—
Out of stock

18

TAPE, LOWER LH | FOR M4L

68195-40F20-FP2

1
Out of stock

18

TAPE, LOWER LH | FOR FH9

68195-40F20-CY9

—
Out of stock

19

COWL, UNDER INNER RH

94461-40F00

1
Out of stock

20

COWL, UNDER INNER LH

94462-40F00

1
Out of stock

21

COWL, UNDER CENTER | Includes Item(s) 22 - 24

94490-40F00

1
Out of stock

22

NET

94491-40F00

1
Out of stock

23

CUSHION

09320-04501

6

$2.85

In stock

24

NUT

09148-03011

6

$2.25

In stock
