2002 Suzuki GSX-R1000 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

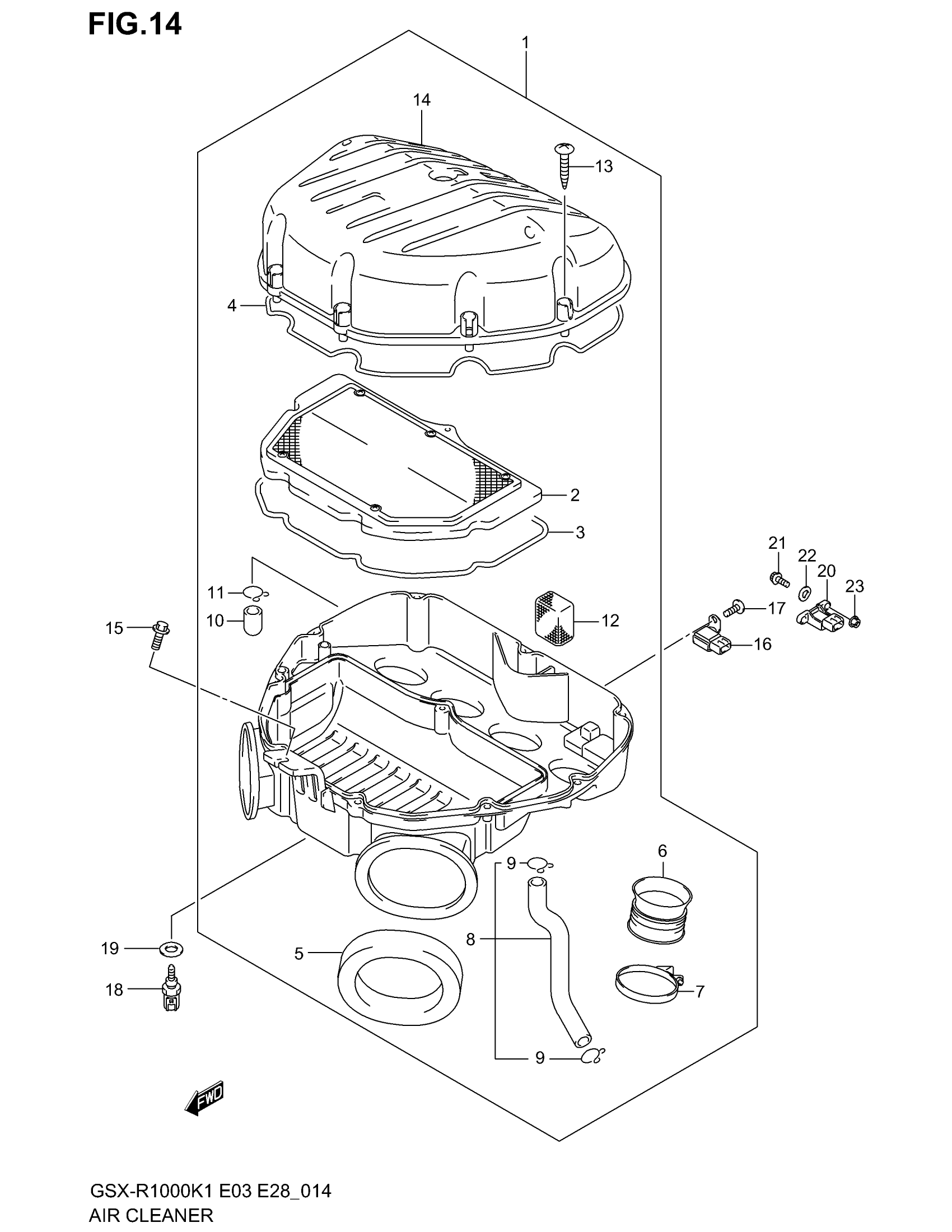

2002 Suzuki GSX-R1000 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 14

13700-40F00

1
Out of stock

2

FILTER ASSY

13780-35F00

1

$36.59

In stock

3

GASKET, CASE

13756-35F00

1

$5.11

In stock

4

GASKET, CAP

13746-35F00

1

$8.58

In stock

5

2

$9.75

In stock

6

TUBE, OUTLET

13881-40F00

4
Out of stock

7

..CLAMP

09402-60208

4

$4.95

In stock

8

TUBE,BREATHER This part replaces 13850-35F00.

13850-35F01

1
Out of stock

9

CLIP

09401-14301

2

$2.50

In stock

10

.PLUG

13859-41B10

1

$7.56

In stock

11

CLIP

09401-14301

1

$2.50

In stock

12

FILTER, BREATHER

13788-24F00

1

$9.70

In stock

13

.SCREW

13831-35F00

10

$2.64

In stock

14

CAP, AIR CLEANER

13740-35F00

1
Out of stock

15

BOLT

09116-06130

1

$2.61

In stock

16

SENSOR, BOOST

15620-35F00

1
Out of stock

18

1

$122.53

In stock

19

GASKET

09168-12017

1
Out of stock

20

SENSOR, AIR PRESSURE

15620-35F00

1
Out of stock

21

BOLT This part replaces 07130-06163.

07130-0616B

1
Out of stock

22

WASHER

09160-06077

1
Out of stock

23

NUT This part replaces 08319-31063.

08319-3106A

1
Out of stock
