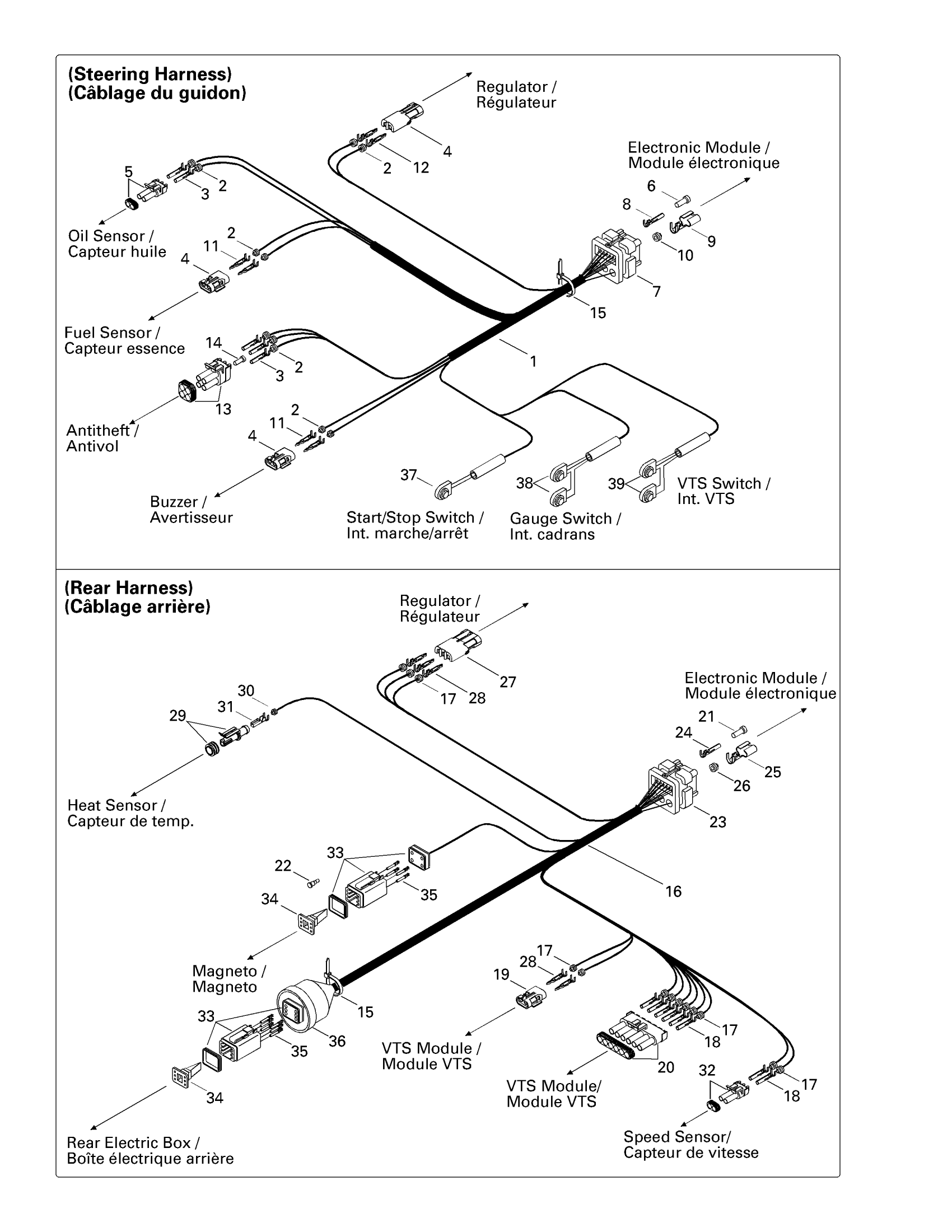

Sea-doo GSX, 5624, 1997 Electrical Harness Diagram

#

Description
Price

1

Steering Harness (Incl. 37, 38, 39) | Includes 1 - 15.

278001032

Unavailable

2

Wire Seal

278000218

$4.39

3

Female Terminal

278000223

$3.19

4

Female Housing, 2 Circuits

278000217

$9.59

5

Male Connector, 2 Circuits

278000220

$15.49

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

11

Male Terminal | XT Models

278000222

$3.19

12

Male Terminal

409004300

$5.61

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

14

Wire Seal

278000216

$3.19

15

Tie Wrap 142 mm

293750002

$1.25

16

Rear Harness | Includes 16 - 36.

278001033

Unavailable

17

Wire Seal

278000218

$4.39

18

Female Terminal

278000223

$3.19

19

Female Housing, 2 Circuits

278000217

$9.59

20

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

21

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

22

Sealing Cap

293000052

$3.19

23

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

24

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

25

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

26

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

27

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

28

Male Terminal | XT Models

278000222

$3.19

29

Male Housing, 1 Circuit

278001012

$16.86

30

Wire Seal

278001013

$3.28

31

Female Terminal

278001014

$3.28

32

Male Connector, 2 Circuits

278000220

$15.49

33

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

34

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

35

Female Terminal

278000632

$2.09

36

Switch Boot

570150700

Unavailable

37

SWITCH-IGNIT. - Call your local BRP dealership | Includes 64 - 66. This part replaces 278000501.

278000427

Unavailable

38

Gauge Switch Ass'y

278000854

Unavailable

39

VTS Switch Ass'y

278000447

Unavailable
