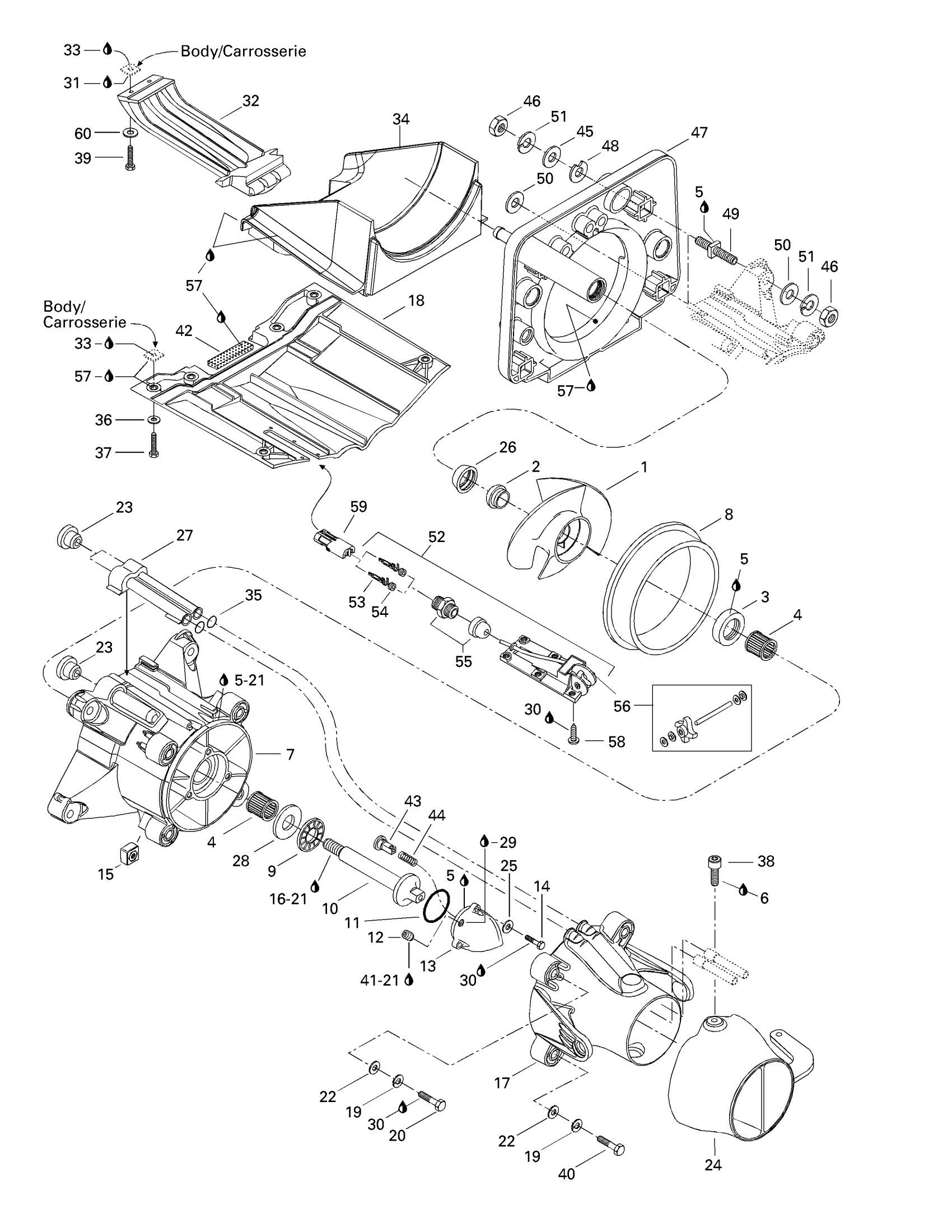

Sea-doo GSX, 5624, 1997 Propulsion System Diagram

#

Description
Price

1

Stainless Steel Impeller Ass'y

271000331

Unavailable

2

Impeller Boot

271000516

$9.59

3

Oil Seal

267000094

$22.49

4

Needle Bearing

293350017

$27.99

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

6

Loctite 243, 10 ml

293800060

$21.49

7

IMPELLER HOUSING ASSEMBLY - Call your local BRP dealership | Includes 7 - 11.

295500521

Unavailable

8

Wear Ring

271000290

$58.49

9

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

10

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

11

O-Ring

293300011

$8.64

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

IMPELLER COVER - Call your local BRP dealership

271000670

Unavailable

14

Hex. Screw M5 X 20

207152060

$1.47

15

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

16

Loctite 271, 10 ml

293800005

$26.99

17

Venturi Ass'y

271000512

$211.99

18

Riding Plate (Black)

271000735

Unavailable

19

Lock Washer 8 mm, Stainless

234181601

$0.55

20

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

21

Was 293800041 Loctite Primer 7649

219704458

$39.99

22

Flat Washer 8 mm, Stainless

234082600

$2.43

23

O-RING - Call your local BRP dealership

293300040

Unavailable

24

Steering Nozzle

271000746

$209.99

25

Flat Washer M5, Stainless

234051600

$0.77

26

Impeller Ring

271000517

$9.59

27

WATER OUTLET - Call your local BRP dealership

271000366

Unavailable

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

30

Loctite 243, 10 ml

293800060

$21.49

31

Instant Gasket

219701421

$51.99

32

Inlet Grate

271000573

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$36.99

34

Shoe (Black)

271000592

Unavailable

35

O-Ring

293300013

$8.18

36

Stainless, Flat Washer 8 mm

234081600

$0.55

37

Hex. Screw M8 X 30

207183060

$1.58

38

Socket Head Screw M8 x 10

211000089

Unavailable

39

Hex. Screw M6 X 25

207162560

$1.47

40

Hex. Screw M8 X 70

207087044

$2.19

41

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

42

Neoprene Seal (1PAC=3M)

219704364

$27.49

43

Pusher

271000703

Unavailable

44

SPRING - Call your local BRP dealership

271000704

Unavailable

45

Flat Washer 10 mm, Stainless

234002600

$2.22

46

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

47

pump Support

271000740

Unavailable

48

Shim 0.3 mm

272000053

$11.49

49

Square Stud

250300022

$20.99

50

Flat Washer 10 mm, Stainless

234001600

$1.15

51

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

52

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

56

Paddle Wheel Kit

295500108

Unavailable

57

Instant Gasket

219701421

$51.99

58

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

59

Female Housing, 2 Circuits

278000217

$9.59

60

Stainless Flat Washer M6

234061600

$0.33
