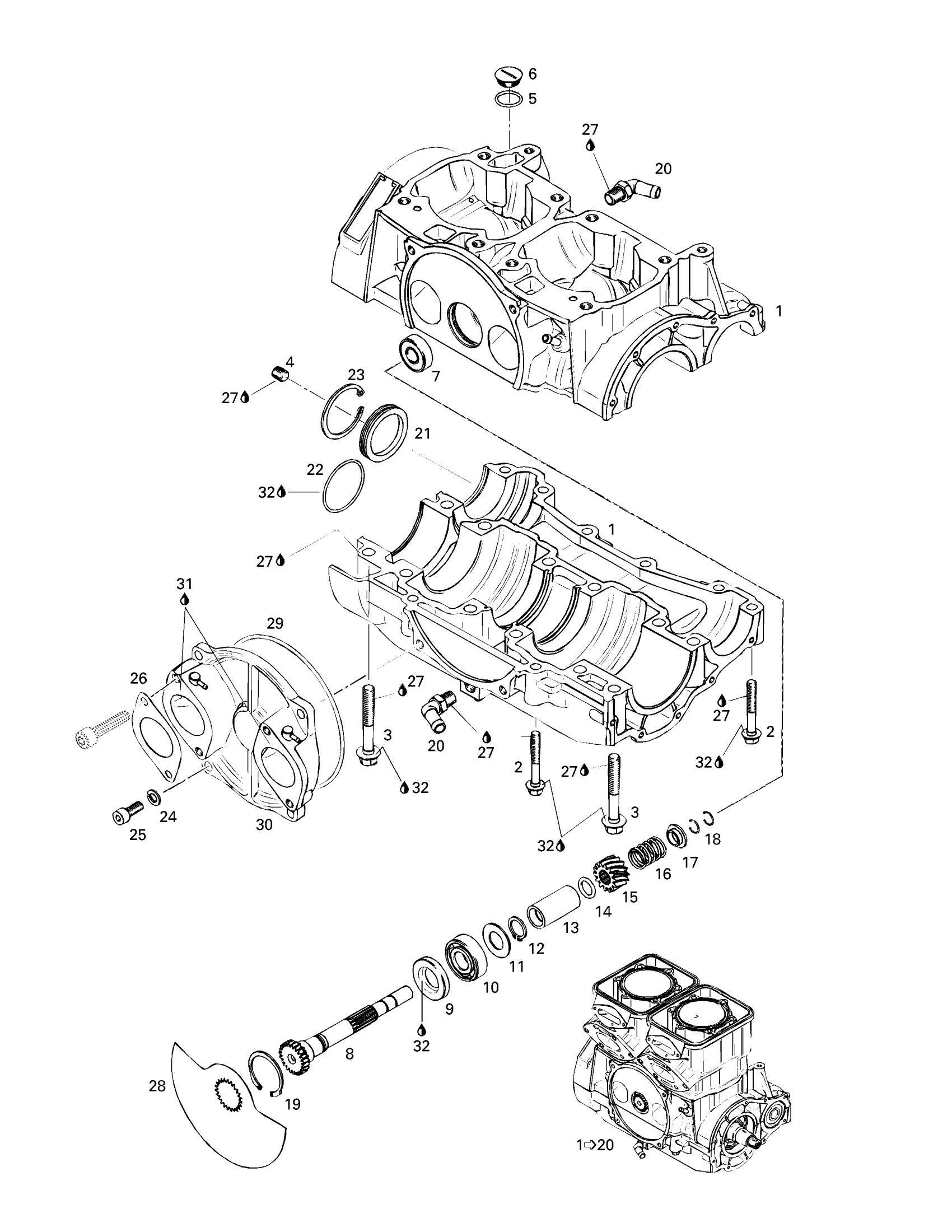

Sea-doo GSX, 5624, 1997 Crankcase, Rotary Valve Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 23.

290881527

Unavailable

1

Crankcase Ass'y <<787>>(White) | Includes 1 - 6.

290887239

Unavailable

2

Hex. Flange Screw M8 x 55

290240328

Unavailable

3

Flange Screw M10 x 73,5

290941333

Unavailable

4

Drain Plug 1/8"

290240483

Unavailable

5

O-Ring

420250890

$3.06

6

Drain Plug

420241801

$7.41

7

Ball Bearing

420932797

$19.99

8

Rotary Valve Shaft

290837351

Unavailable

9

OIL SEAL - Call your local BRP dealership

290930580

Unavailable

10

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

11

Shim

290227439

Unavailable

12

SNAP RING - Call your local BRP dealership

420845450

Unavailable

13

Distance Sleeve

290847287

Unavailable

14

O-Ring

293300024

$8.57

15

Sprocket 14Th This part replaces 420935735.

420935736

$88.99

16

Spring

290938810

Unavailable

17

Spring Seat

290827430

Unavailable

18

Circlip

290845160

Unavailable

19

Lock Ring

420945880

$4.44

20

Angular Tube

420922242

$14.83

21

BEARING COVER - Call your local BRP dealership This part replaces 290810745.

420810745

Unavailable

22

O-Ring

290230300

Unavailable

23

BEARING COVER - Call your local BRP dealership This part replaces 290810745.

420810745

Unavailable

24

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

25

Cylinder Screw M8 x 20

290240073

Unavailable

26

Gasket This part replaces 293250070.

293250134

$13.76

27

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

28

ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.

420924502

Unavailable

29

O-Ring

290831765

Unavailable

30

Rotary Valve Cover

290810738

Unavailable

31

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

32

Dow Corning 111, 150 g

413707000

$59.99

33

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886390

Unavailable
