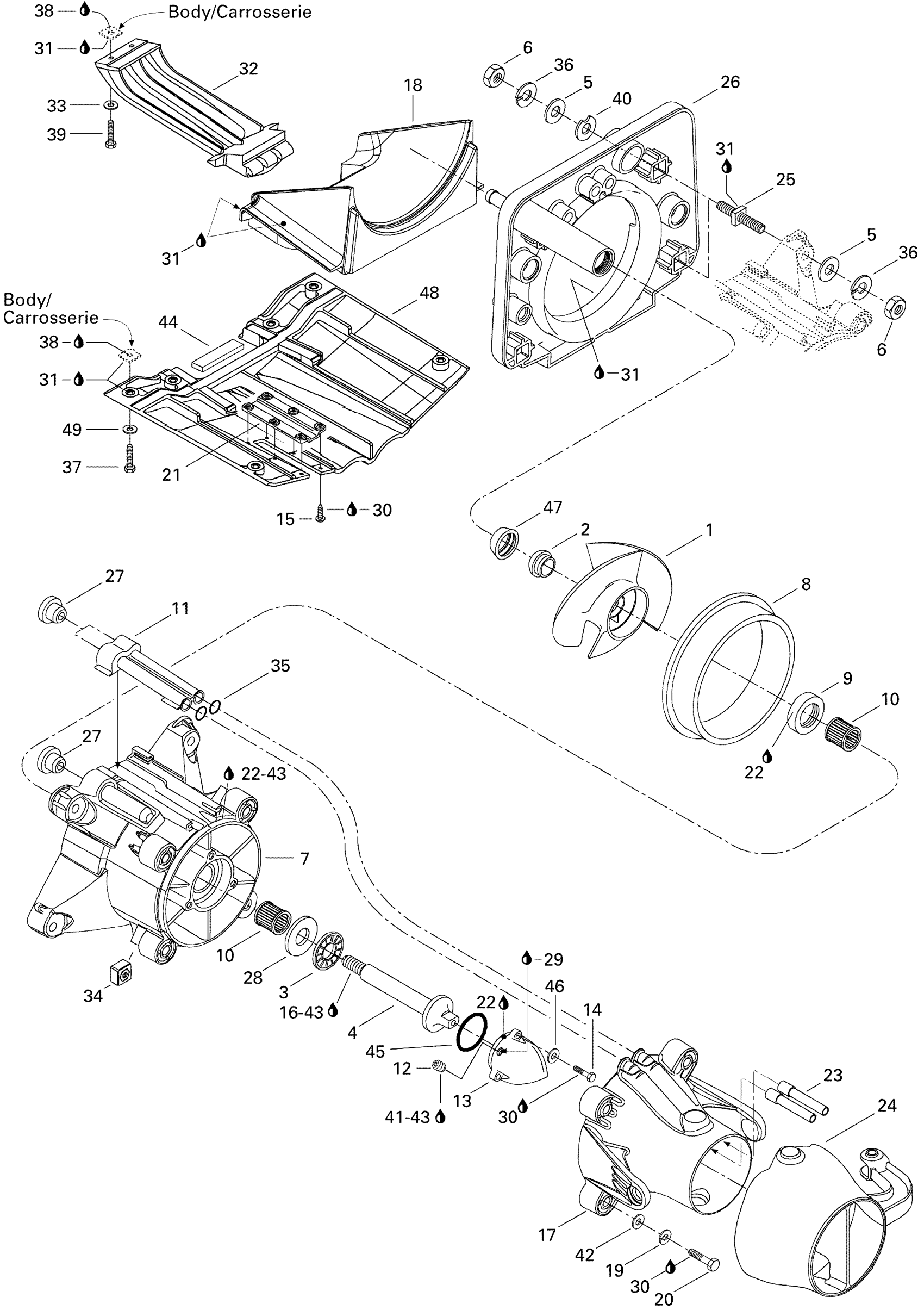

Sea-doo GSX, 5620, 1996 Propulsion Diagram

#

Description
Price

1

Stainless Steel Impeller Ass'y

271000660

$317.17

2

Impeller Boot

271000516

$6.86

3

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

4

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

5

Flat Washer 10 mm, Stainless

234001600

$0.91

6

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

7

IMPELLER HOUSING ASSEMBLY - Call your local BRP dealership | Includes 3,4,8

295500391

Unavailable

8

Wear Ring

271000290

$47.42

9

Oil Seal

267000094

$17.52

10

Needle Bearing

293350017

$21.42

11

WATER OUTLET - Call your local BRP dealership

271000366

Unavailable

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

13

IMPELLER COVER - Call your local BRP dealership

271000463

Unavailable

14

Hex. Screw M5 X 20

207152060

$1.22

15

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

16

Loctite 271, 10 ml

293800005

$20.77

17

Venturi Ass'y

271000512

$194.75

18

Shoe (Black)

271000592

Unavailable

19

Lock Washer 8 mm, Stainless

234181601

$0.46

20

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

21

Ride Shoe Cap

291000446

Unavailable

22

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Steering Nozzle

271000746

$188.78

25

Square Stud

250300022

$15.57

26

pump Support | GSI 5622.

271000594

Unavailable

27

O-RING - Call your local BRP dealership

293300040

Unavailable

28

Thrust Washer

293350003

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

30

Loctite 243, 10 ml

293800060

$20.77

31

Instant Gasket

219701421

$50.02

32

Inlet Grate

271000573

Unavailable

33

Stainless Flat Washer M6

234061600

$0.25

34

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

35

O-Ring

293300013

$5.69

36

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

37

Hex. Screw M8 X 30

207183060

$1.30

38

Silicone Sealant 51388, 300 ml

296000309

$35.72

39

Hex. Forming Screw M6 X 20

207162060

$1.03

40

Shim 0.3 mm

272000053

$8.02

41

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

42

Flat Washer 8 mm, Stainless

234082600

$1.98

43

Was 293800041 Loctite Primer 7649

219704458

$41.99

44

Neoprene Seal (1PAC=3M)

219704364

$22.72

45

O-Ring

293300011

$6.46

46

Flat Washer M5, Stainless

234051600

$0.64

47

Impeller Ring

271000517

$6.86

48

Ride Plate

271000593

Unavailable

49

Stainless, Flat Washer 8 mm

234081600

$0.46
