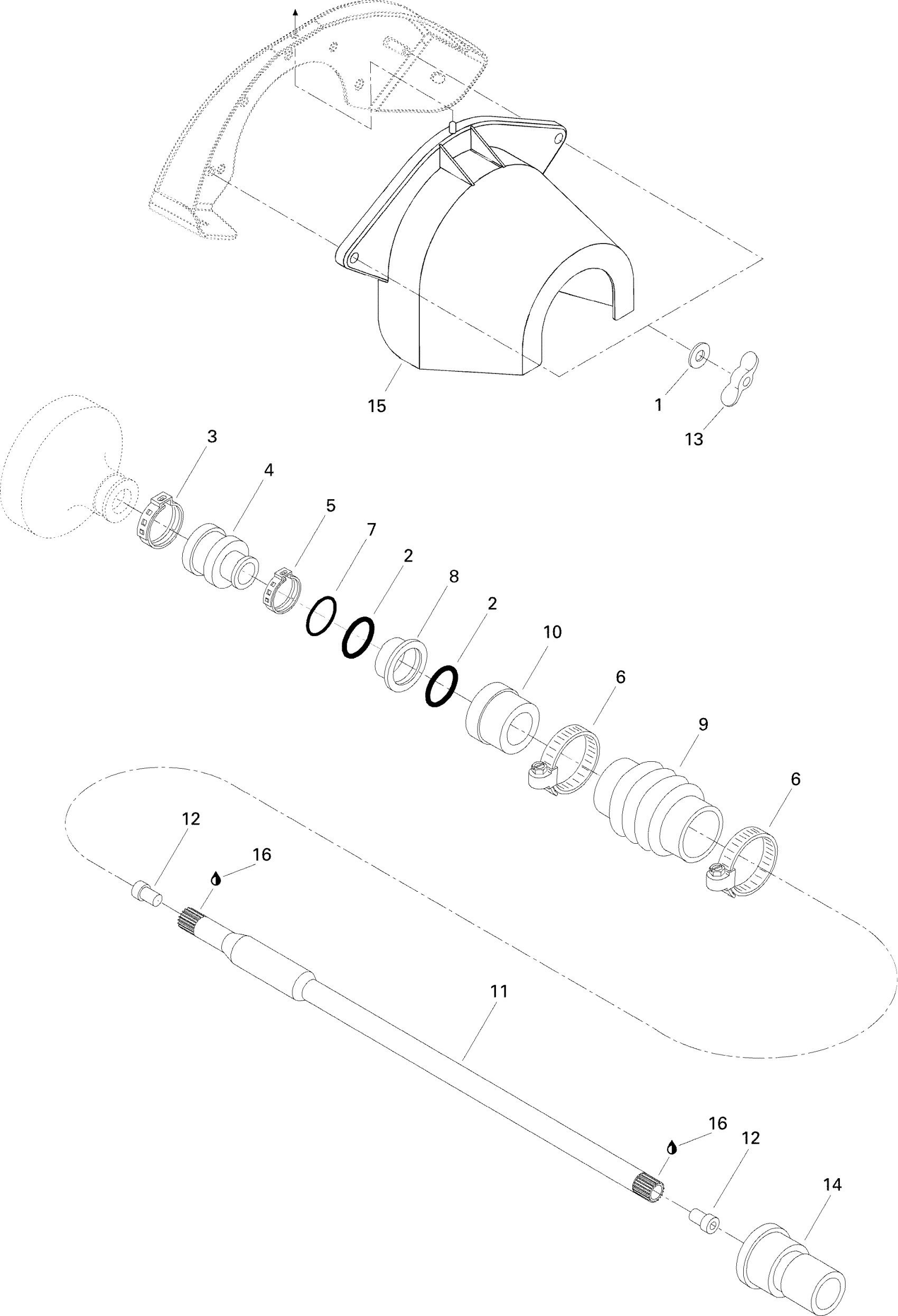

Sea-doo GSX, 5620, 1996 Drive System Diagram

#

Description
Price

1

Flat Washer 8 mm, Stainless

234082600

$1.98

2

O-Ring

293300032

$4.89

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

CAILLAU CLICK CLAMP - Call your local BRP dealership

293650055

Unavailable

6

Tridon Clamp

293650035

$5.80

7

O-Ring

293300036

$8.89

8

Support Ring

272000064

$53.27

9

BELLOWS - Call your local BRP dealership

272000184

Unavailable

10

Carbon Ring

272000770

$35.72

11

Drive Shaft

272000096

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Nut M8

232681100

$1.73

14

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

15

FLYWHEEL GUARD - Call your local BRP dealership

272000094

Unavailable

16

Synthetic Grease, 400 G

293550010

Unavailable
