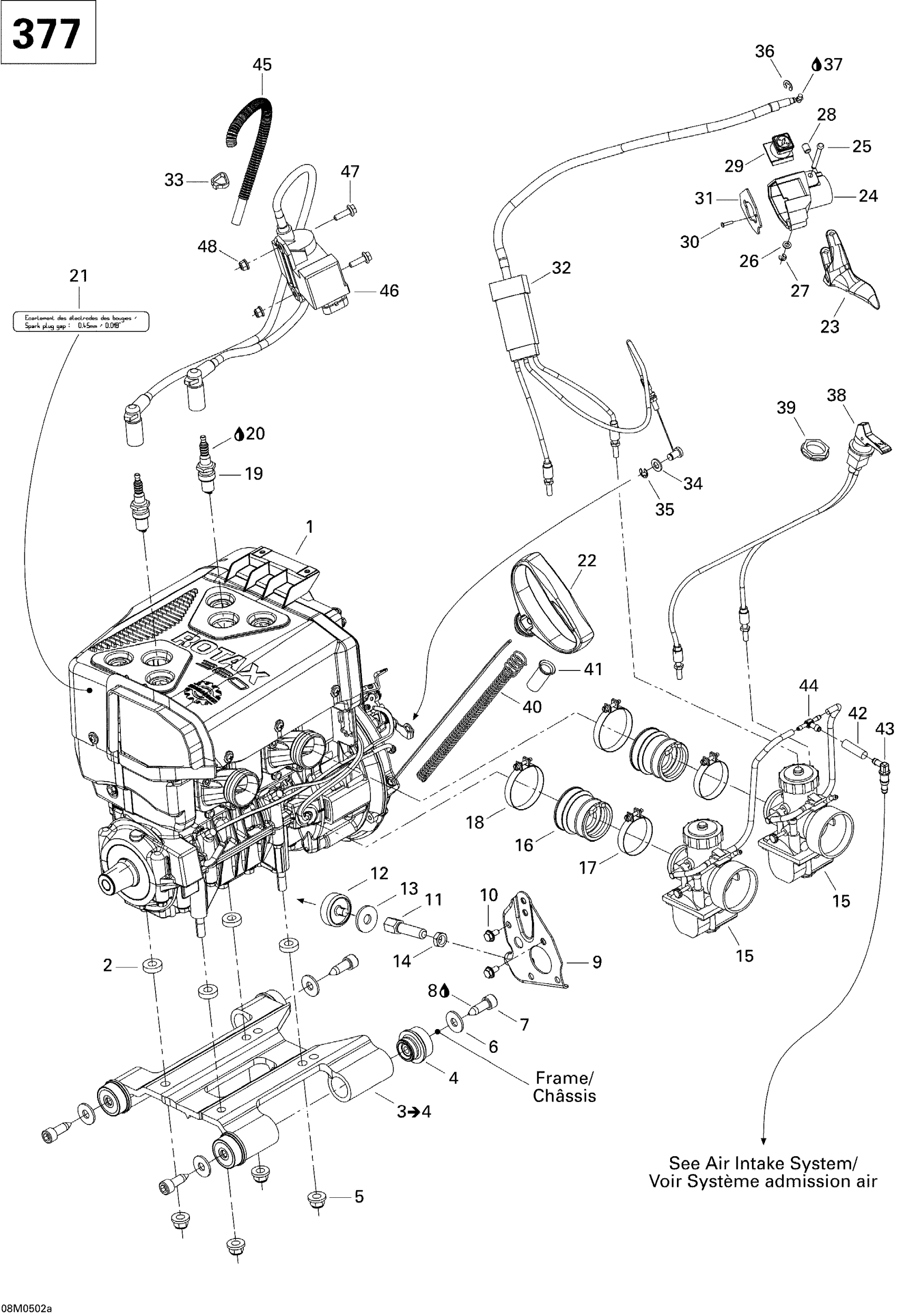

Ski-Doo GSX 380F, 2005 Engine And Engine Support 380F Diagram

#

Description
Price

1

377 Engine

400308913

Unavailable

2

SPACER - Call your local BRP dealership

512051800

Unavailable

3

Engine Support | Includes 2 to 3

512059885

Unavailable

4

Rubber Mount

512059691

$44.58

5

Hex. Flange Elastic Nut M10

233201414

$1.26

6

Flat Washer M10 | 4X4

250200014

$1.17

7

Screw M10 X 30

250000094

$23.05

8

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

9

Support Plate

512059910

Unavailable

10

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

11

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

12

STOPPER - Call your local BRP dealership

512059610

Unavailable

13

WASHER - Call your local BRP dealership

512059057

Unavailable

14

Nut Hexagonal RH.

232026414

$1.48

15

CARBURETOR VM30-213 - Call your local BRP dealership

403138774

Unavailable

16

Carburetor Adaptor

512059478

$38.43

17

GEMI CLAMP - Call your local BRP dealership

293650151

Unavailable

18

Gemi Clamp | Not Shown

512059834

$10.52

19

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.03

20

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

21

Spark Plug Decal

516000986

Unavailable

22

Starter Grip

572084400

$14.54

23

Head Throttle Handle, 30 mm

512059998

Unavailable

24

Throttle Housing

512060603

$10.57

25

Lever Pin

414438700

$11.14

26

Flat Washer M5, Stainless

234051600

$0.64

27

Circlip | Model-RS

414439000

$4.14

28

Socket Set Screw M8 X 10

414440800

$4.00

29

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

30

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

31

Plate

512060390

$9.31

32

THROTTLE CABLE - Call your local BRP dealership

512059913

Unavailable

33

Tie-Rap 180 mm

414115200

$0.09

34

Flat Washer 8 mm, Nylon

234081100

$1.00

35

Circlip

414753500

$0.59

36

Circlip

414274500

$0.74

37

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

38

CHOKE CABLE - Call your local BRP dealership

512059914

Unavailable

39

Plastic Nut

512060671

$0.98

40

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

41

TUBE - Call your local BRP dealership

512059536

Unavailable

42

Polyurethane Hose 10000Mm Long

219704410

$46.12

43

Elbow Male Connector

414580600

$3.50

44

T-Fitting

572045500

$7.31

45

Was 409901700 Tubing (9 mm)

219704399

$79.97

46

Calibrated Module

512059950

Unavailable

47

Hex. Flange Screw M6 X 20

207662044

$1.66

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
