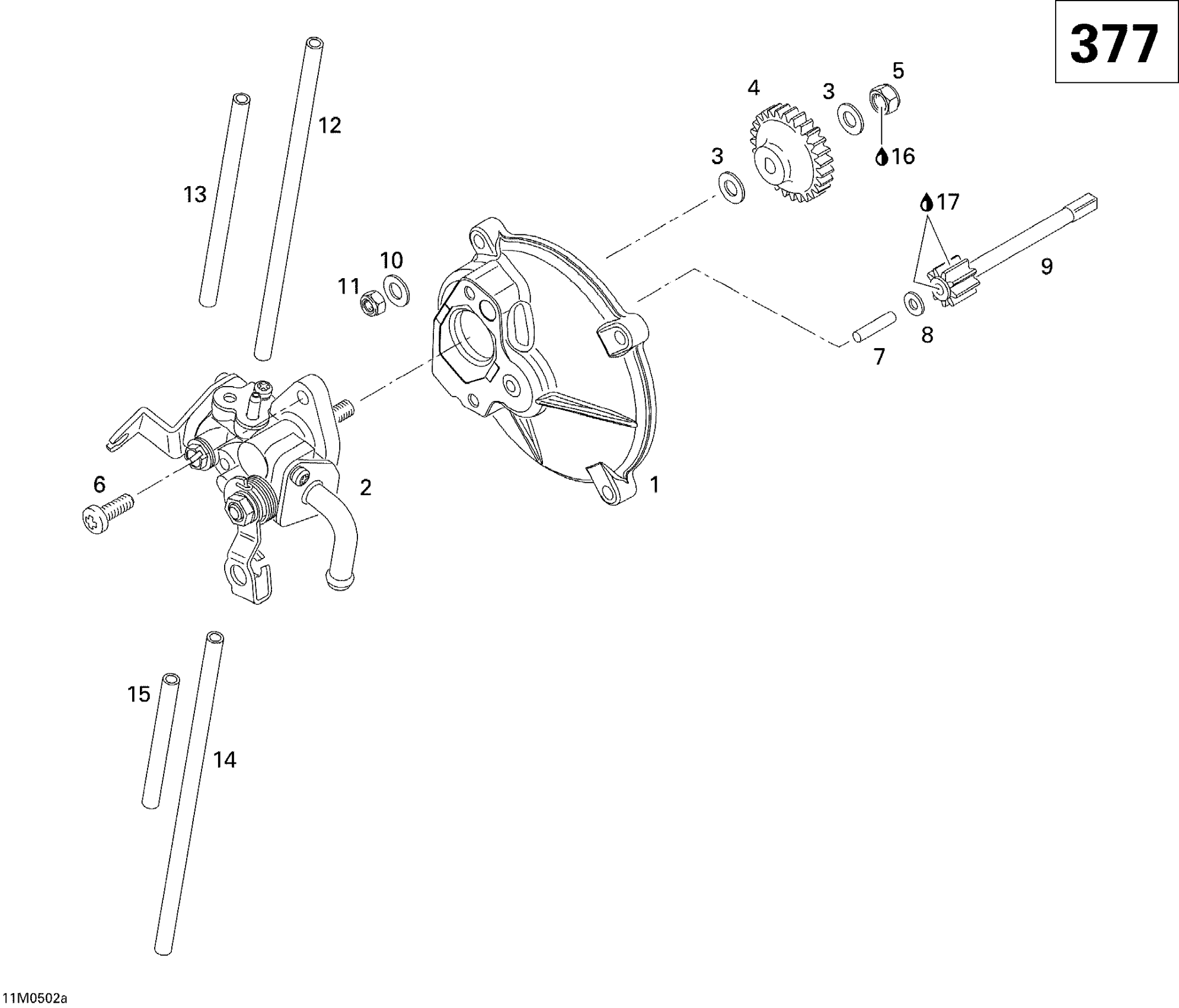

Ski-Doo GSX 380F, 2005 Oil Pump 377 Diagram
#
Description
Price
1
PUMP MOUNTING FLANGE - Call your local BRP dealership
420910162
Unavailable
2
OIL PUMP ASS'Y - Call your local BRP dealership
420889800
Unavailable
3
FLAT WASHER - Call your local BRP dealership
420927945
Unavailable
4
Oil Pump Gear, 27 Teeth
420935930
Unavailable
5
Elastic Stop Nut M6
232561414
Unavailable
6
Screw
420841971
Unavailable
7
NEEDLE PIN - Call your local BRP dealership
420832260
Unavailable
8
Flat Washer 4
420244072
Unavailable
9
Gear, 9 Teeth
420935970
Unavailable
10
WASHER - Call your local BRP dealership
420827800
Unavailable
11
NUT M5 - Call your local BRP dealership
420942025
Unavailable
12
Oil Hose 1500Mm Long
219704404
Unavailable
13
Hose 6 Mm 15000Mm Long
219704360
Unavailable
14
Oil Hose 1500Mm Long
219704404
Unavailable
15
Hose 6 Mm 15000Mm Long
219704360
Unavailable
