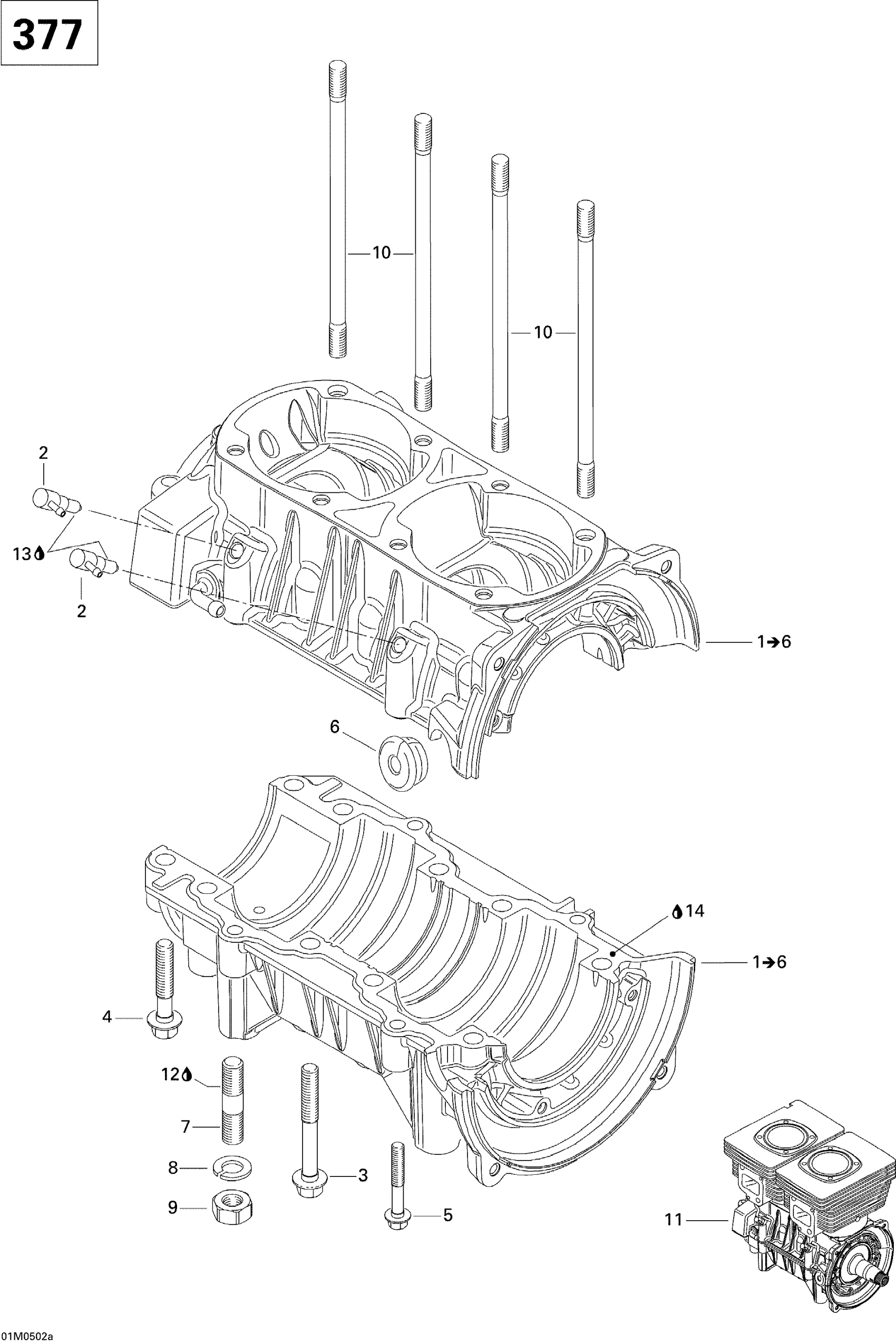

Ski-Doo GSX 380F, 2005 Crankcase (377) Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 6

420888488

Unavailable

2

Check Valve

420956511

$28.57

3

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

Unavailable

4

Hex. Collar Screw M8 x 45

420640432

Unavailable

5

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

6

Cable Grommet

420860962

Unavailable

7

Stud M10 X 29/20

420940190

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

STUD M8 X 167 - Call your local BRP dealership

420841149

Unavailable

11

Shock Block 377

420037706

Unavailable

12

Loctite 243, 10 ml

293800060

$20.77

13

Sealant Loctite 648

219703000

Unavailable

14

Loctite 5910, 300 ml

293800081

$57.99
