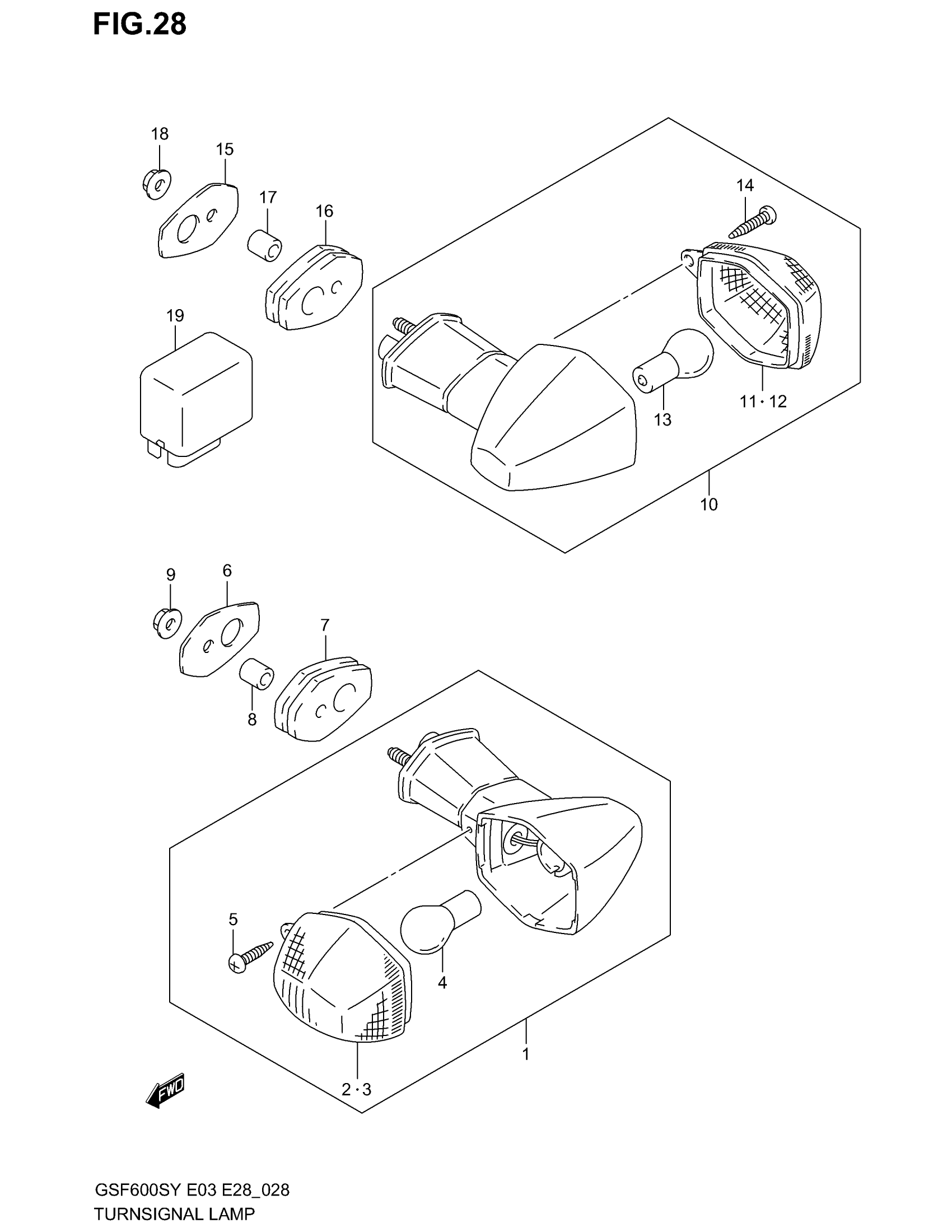

Suzuki GSF600S (2003) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN RH

35601-31F10

$88.30

1

LAMP ASSY, FRONT TURN LH | Includes Item(s) 2 - 5

35602-31F10

$91.32

2

LENS, RH

35612-31F30

$15.68

3

LENS, LH

35632-31F30

$16.23

4

BULB (12V,21W)

09471-12045

$2.95

5

SCREW This part replaces 03242-04163.

03242-0416B

$3.18

6

PLATE, FRONT TURN

35629-31F00

$5.00

7

CUSHION,FRONT T This part replaces 35690-31F00.

35690-31F01

$6.85

8

SPACER (5.5X9.5X10)

09180-05301

$2.95

9

NUT This part replaces 08316-10053.

08316-1005A

$2.19

10

LAMP ASSY, REAR TURN RH

35603-31F30

$92.33

10

LAMP ASSY, REAR TURN LH | Includes Item(s) 11 - 14

35604-31F30

$91.32

11

LENS, RH

35632-31F30

$16.23

12

LENS, LH

35612-31F30

$15.68

13

BULB (12V,21W)

09471-12045

$2.95

14

SCREW This part replaces 03242-04163.

03242-0416B

$3.18

15

PLATE, REAR TURN

35629-31F00

$5.00

16

CUSHION,FRONT T This part replaces 35690-31F00.

35690-31F01

$6.85

17

SPACER (5.5X9.5X10)

09180-05301

$2.95

18

NUT This part replaces 08316-10053.

08316-1005A

$2.19

19

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
