Description

Price

1

RELAY ASSY, STARTING | Includes Item(s) 2 - 3

31800-26E00

$93.08

2

COVER

31861-26E00

$4.09

3

FUSE (30A)

09481-30101

$2.35

4

BOLT, STARTING MOTOR

09128-06013

$1.28

5

COIL ASSY, IGNITION NO.1

33410-26E01

$186.88

6

COIL ASSY, IGNITION NO.2

33420-31F00

$141.08

7

SPACER, IG COIL (6X12X10)

09180-06095

$4.28

8

SPACER, IG COOL (6.4X10X18)

09180-06195

$4.70

9

BOLT | MODEL Y/K1 This part replaces 01550-06253.

01550-0625A

$2.01

9

BOLT | MODEL K2/K3 This part replaces 01550-06253.

01550-0625A

$2.01

9A

BOLT | MODEL K2/K3 This part replaces 02162-06203.

02162-0620C

$1.80

10

BOLT This part replaces 01550-06353.

01550-0635A

$2.38

11

CLAMP This part replaces 09404-06431.

09404-06039

$1.79

12

CAP, SPARK PLUG

33510-48B10

$30.40

13

SEAL, SPARK PLUG

33541-23E01

$6.06

14

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

15

COVER, SPARK PLUG CAP

33543-48B00

$7.14

16

WIRE, BATTERY PLUS LEAD | Includes Item(s) 17

33810-31F00

Unavailable

17

CAP, BATTERY PLUS

31861-48B10

$7.40

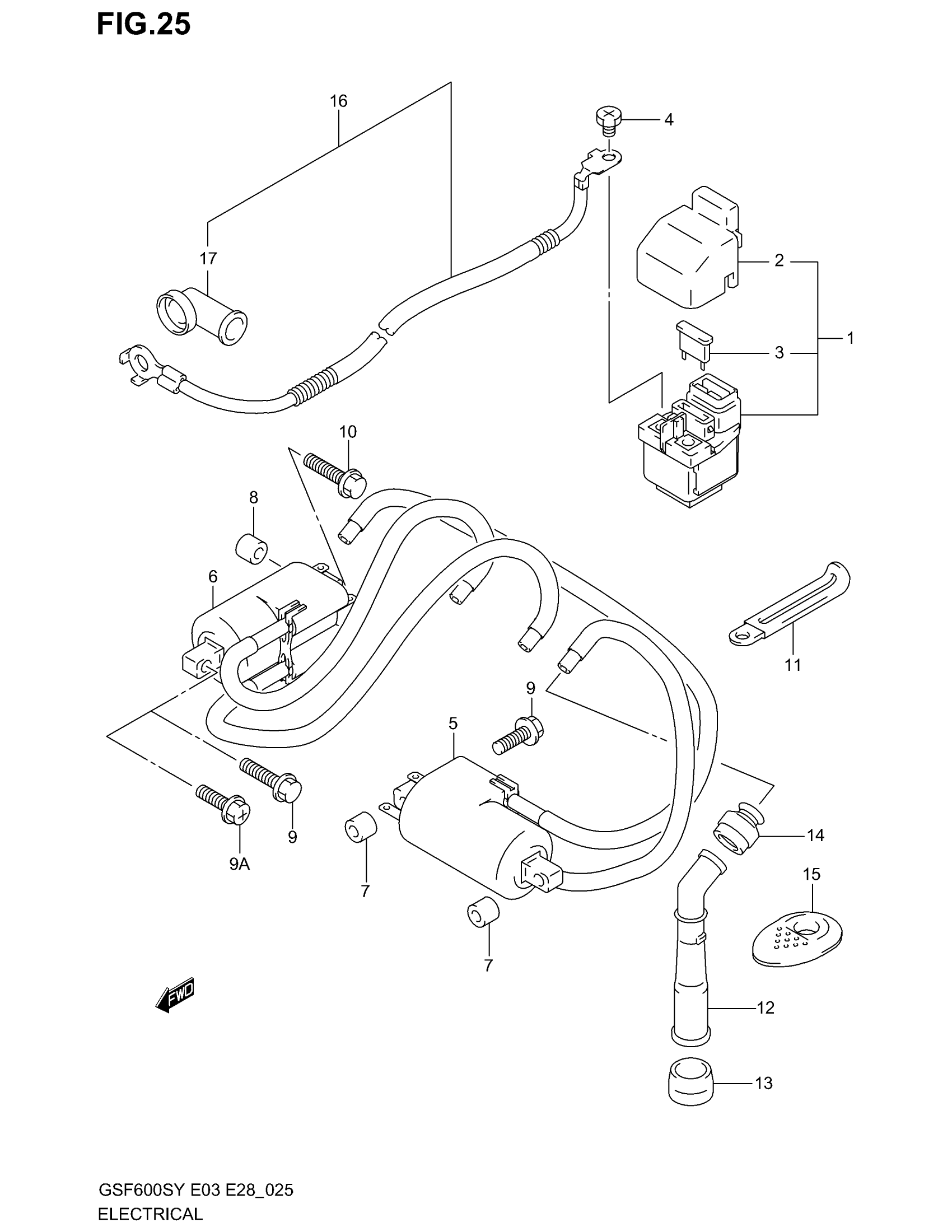

Suzuki GSF600S (2003) ELECTRICAL Diagram
