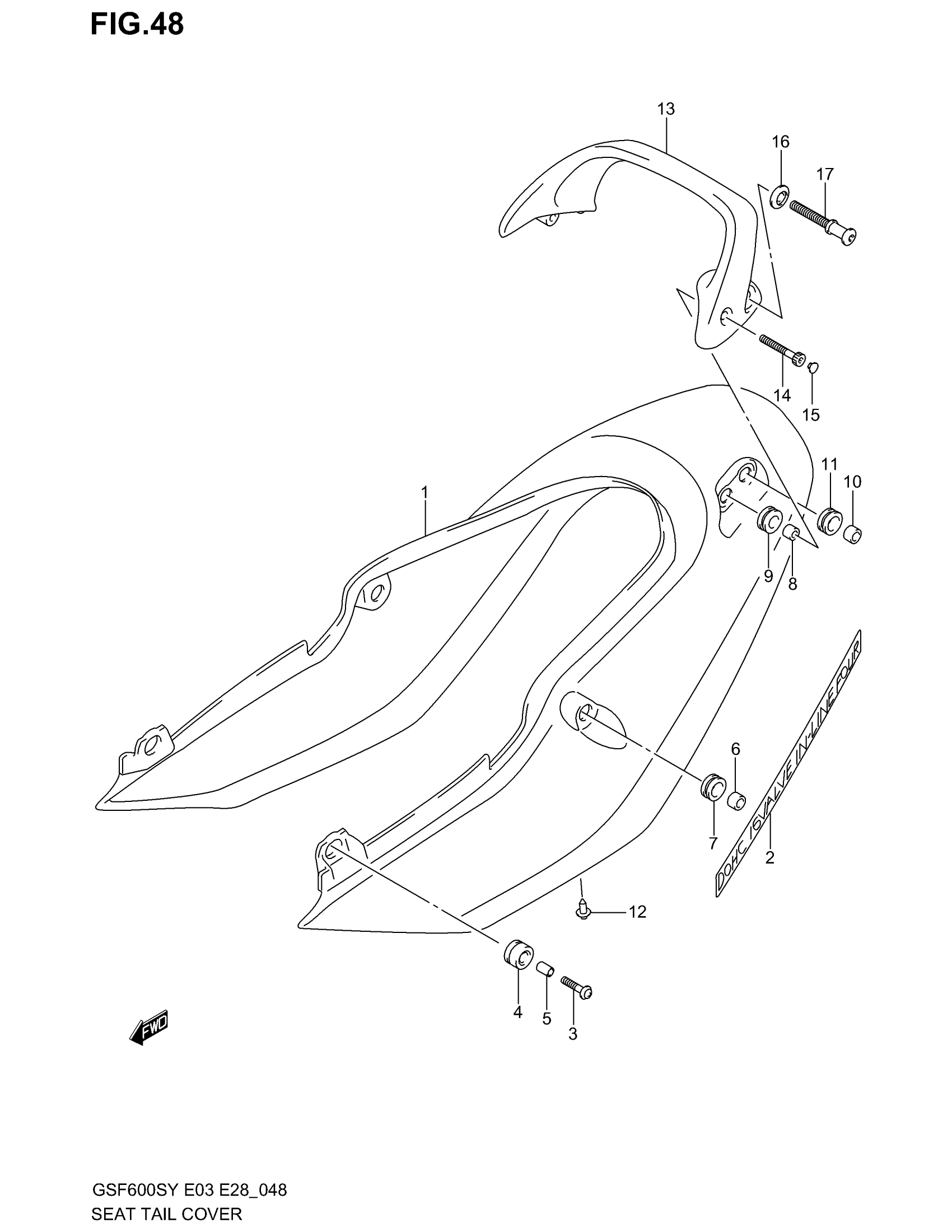

Suzuki GSF600S (2003) SEAT TAIL COVER (MODEL Y) Diagram

#

Description
Price

1

COVER, SEAT TAIL (RED) | E3

45510-31F00-Y7M

Unavailable

1

COVER,SEAT TAIL | E3 This part replaces 45510-31F00-33J.

45511-31F00

Unavailable

1

COVER, SEAT TAIL (RED) | E28

45510-31F00-Y7M

Unavailable

1

COVER, SEAT TAIL (BLUE) | E28; Includes Item(s) 2 - 2

45510-31F00-1LF

Unavailable

2

EMBLEM, TAIL COVER | E3 FOR Y7M

68131-26E30-13L

Unavailable

2

EMBLEM, TAIL COVER | E3 FOR 33J

68131-26E30-13L

Unavailable

2

EMBLEM, TAIL COVER | E28 FOR Y7M

68131-26E30-13L

Unavailable

2

EMBLEM, TAIL COVER | E28 FOR 1LF

68131-26E30-1ZZ

Unavailable

3

SCREW, FRONT (6X30)

09136-06083

$2.28

4

CUSHION, FRONT (10X22X15)

47115-19F00

$5.21

5

SPACER, FRONT (6.5X10X13)

09180-06291

$2.67

6

SPACER, CENTER (8.5X14X9)

09180-08199

$2.14

7

CUSHION, CENTER (14X22X9.5)

09320-14023

$4.53

8

SPACER, RR-FR (6.5X12X9)

09180-06300

$3.52

9

CUSHION, RR-FR (12X22X9.5)

09320-12068

$3.25

10

SPACER, RR-RR (8.5X14X9)

09180-08199

$2.14

11

CUSHION, RR-RR (14X12X9.5)

09320-14023

$4.53

12

CLIP

09409-06314-5PK

$2.80

13

HANDLE, PILLION RIDER (RED) | E3

46210-31F00-Y7M

Unavailable

13

HANDLE, PILLION RIDER (BLACK) | E3

46210-31F00-33J

Unavailable

13

HANDLE, PILLION RIDER (RED) | E28

46210-31F00-Y7M

Unavailable

13

HANDLE, PILLION RIDER (BLUE) | E28

46210-31F00-1LF

Unavailable

14

BOLT This part replaces 07120-06453.

07120-0645B

$3.08

15

CAP

09250-05009

$2.10

16

WASHER, HOOK

46317-31F00

$10.97

17

HOOK, HANDLE

46316-31F00

$22.68
