Partiron

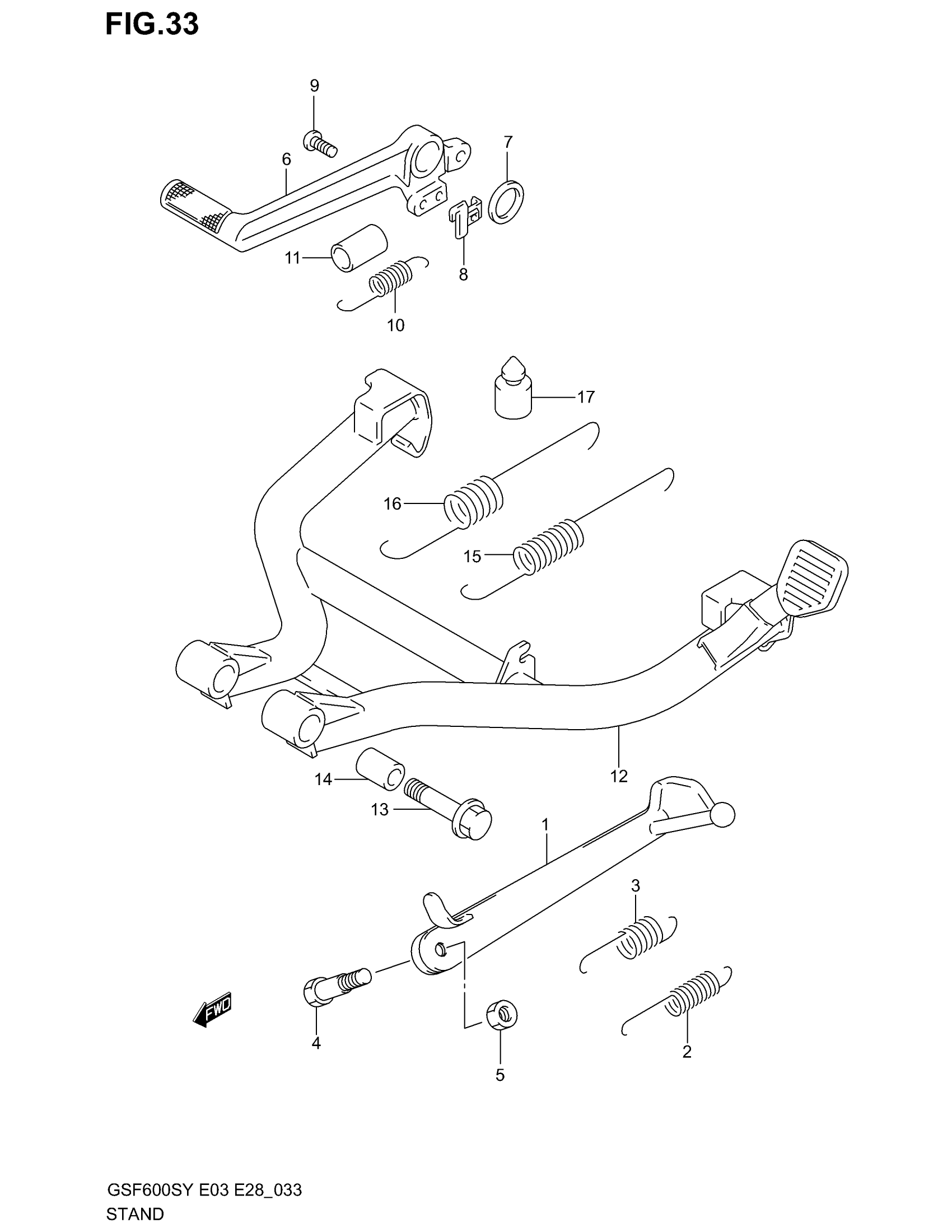

Suzuki GSF600S (2003) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-31F00

Unavailable

2

SPRING, INNER

09443-12048

$11.38

3

SPRING, OUTER

09443-19010

$5.97

4

BOLT

09111-10058

$6.09

5

NUT This part replaces 08319-31103.

08319-3110A

$2.73

6

PEDAL, BRAKE

43111-31E01

$181.08

7

WASHER

09160-18022

$2.80

8

BRACKET, STOP SWITCH

43560-32C00

$6.40

9

.SCREW This part replaces 02112-05163.

02112-0516A

$1.45

10

SPRING

09443-13029

$4.84

11

TUBE, SPRING GUIDE

43261-17C00

$6.92

12

STAND, CENTER

42100-31F00

Unavailable

13

BOLT

09103-10126

$4.07

14

SPACER

09180-10113

$15.70

15

SPRING, INNER

09443-14059

$10.57

16

SPRING, OUTER

09443-22013

$9.95

17

CUSHION, RH This part replaces 09321-10032.

09321-10034

$7.57
