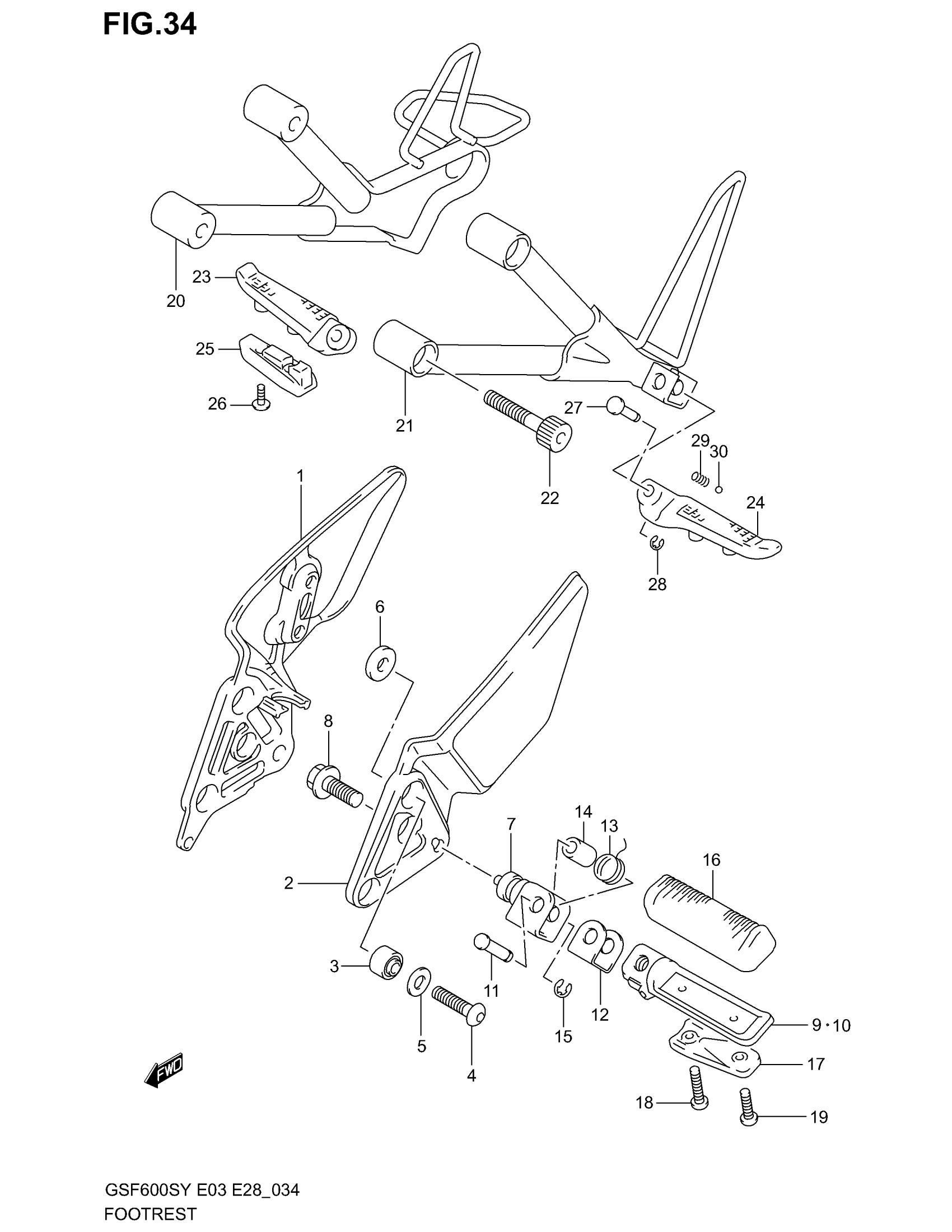

Suzuki GSF600S (2003) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43511-26E02

$253.12

2

BRACKET, FRONT FOOTREST LH

43521-26E01

$253.12

3

BUSH

09319-08045

$18.21

4

BOLT, FRONT FOOTREST

09106-08147

$5.72

5

WASHER, OUTER

09161-13004

$3.58

6

WASHER, INNER

09161-17002

$5.00

7

HOLDER, BAR

43530-27E00

$108.08

8

BOLT, HOLDER

09106-10064

$4.42

9

BAR, RH

43511-40C00

$72.12

10

BAR, LH

43521-40C00

$72.12

11

PIN

09208-08010

$2.80

12

CUSHION,FRONT F This part replaces 43570-46E20.

43570-46E21

$20.58

13

SPRING

09448-18022

$3.42

14

SPACER

09180-08149

$5.10

15

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

16

RUBBER

43550-40C11

$29.07

17

BALANCER, LOWER

43536-31E10

$47.88

18

SCREW, INNER This part replaces 02142-05303.

02142-0530B

$2.92

19

SCREW This part replaces 02142-05253.

02142-0525B

$2.95

20

BRACKET,PILLION This part replaces 43810-31F00.

43810-31F01

Unavailable

21

BRACKET,PILLION This part replaces 43820-31F00.

43820-31F01

Unavailable

22

BOLT,8X38 This part replaces 09106-08036.

09106-08036-XC0

$2.80

23

BAR,PILLION FOO This part replaces 43611-35F10.

43611-35F11

Unavailable

24

BAR, PILLION LH | MODEL Y This part replaces 43621-31F00.

43621-35F01

$69.90

24

BAR, PILLION LH | MODEL K1/K2/K3 This part replaces 43621-35F00.

43621-35F01

$69.90

25

BALANCER, PILLION RH

43631-31F00

Unavailable

26

SCREW,5X8 This part replaces 09125-05072.

09125-05072-XC0

$2.35

27

PIN

87259-85510

$4.89

28

E RING This part replaces 08332-11043.

08332-1104A

$1.37

29

SPRING

09440-05005

$1.45

30

BALL

06111-07004

$1.22
