1993 Suzuki GSF400P Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1993 Suzuki GSF400P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

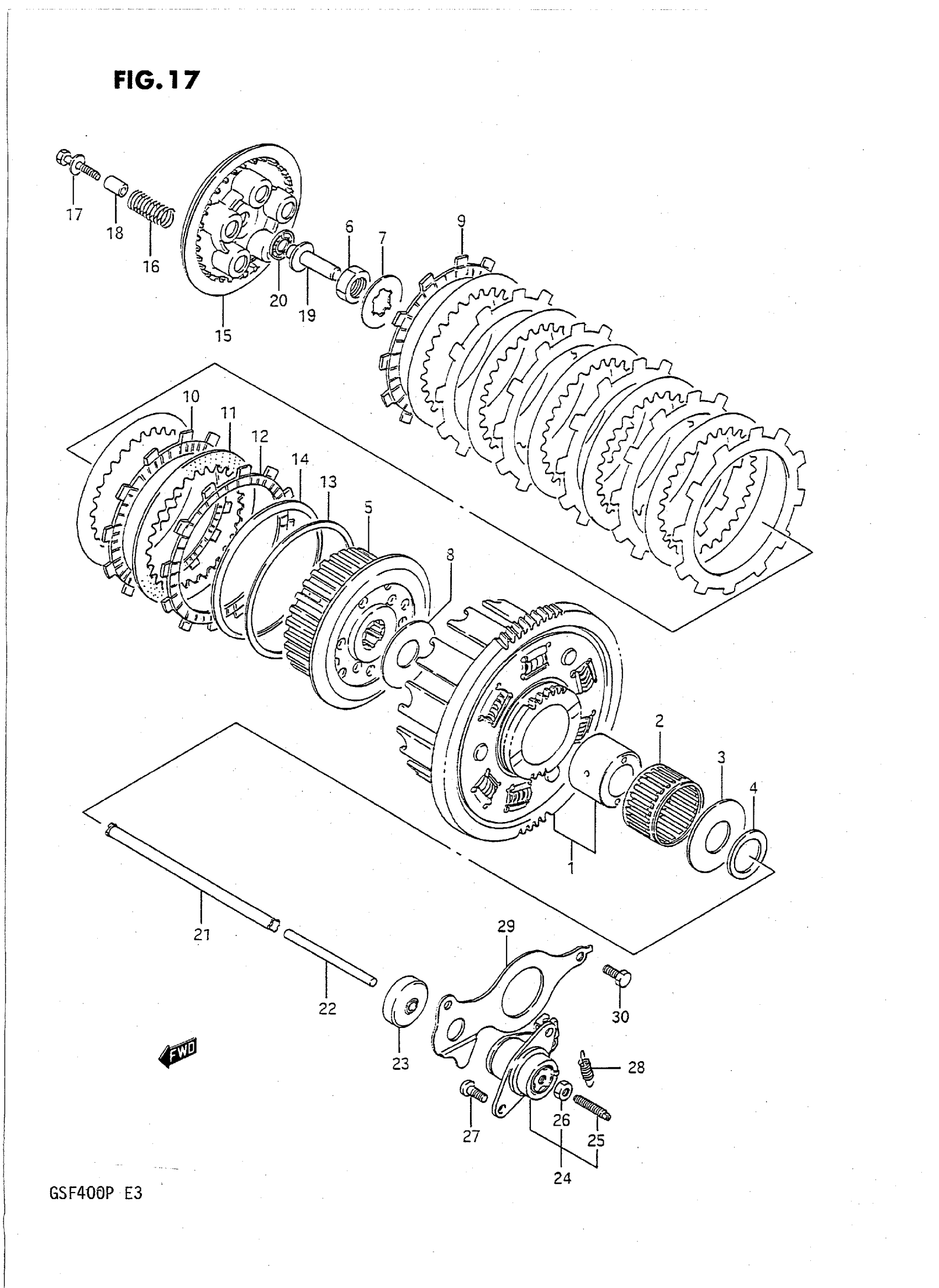

1993 Suzuki GSF400P Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | MODEL M This part replaces 21200-34841.

21200-34843

1
Out of stock

1

GEAR ASSY, PRIMARY DRIVEN | MODEL N This part replaces 21200-34842.

21200-34843

1
Out of stock

1

GEAR ASSY, PRIMARY DRIVEN | MODEL P

21200-34843

1
Out of stock

2

BEARING (37X42X27)

09263-37001

1
Out of stock

3

WASHER (22X50X2.5)

09160-22045

1
Out of stock

4

SPACER (22X32X3)

09160-22032

1
Out of stock

5

HUB, CLUTCH SLEEVE

21410-30B03

1
Out of stock

6

NUT

09140-20006

1
Out of stock

7

LOCK WASHER This part replaces 09167-20006.

09167-20009

1
Out of stock

8

WASHER

09160-20051

1
Out of stock

9

PLATE, CLUTCH DRIVE | MODEL M/N This part replaces 21441-13A00.

21441-13A01

1
Out of stock

9

PLATE, CLUTCH DRIVE | MODEL P

21441-13A01

1
Out of stock

10

PLATE,CLUTCH DR This part replaces 21441-32C50.

21441-33C51

6
Out of stock

11

PLATE, CLUTCH DRIVEN (T:1.6)

21451-19A00

7
Out of stock

12

PLATE, CLUTCH DRIVE NO.2 | MODEL M/N This part replaces 21442-32C00.

21442-32C01

1
Out of stock

12

PLATE, CLUTCH DRIVE NO.2 | MODEL P

21442-32C01

1
Out of stock

13

SEAT, WAVE WASHER

21471-32C00

1
Out of stock

14

WAVE WASHER

09164-94001

1
Out of stock

15

DISK,CL PRESSUR This part replaces 21462-04A00.

21462-32C50

1
Out of stock

16

SPRING

09440-15021

5
Out of stock

17

BOLT

09116-05015

5
Out of stock

18

NO DESCRIPTION AVAILABLE This part replaces 09180-05034.

09180-05059

5
Out of stock

19

PIECE, CLUTCH PUSH

23121-39101

1
Out of stock

20

BEARING (10X22X2.8)

09263-10002

1
Out of stock

21

ROD, CLUTCH PUSH | MODEL M/N This part replaces 23110-33400.

23110-32C50

1
Out of stock

21

ROD, CLUTCH PUSH | MODEL P

23110-32C50

1
Out of stock

22

ROD, CLUTCH PUSH LH

23111-08A00

1
Out of stock

23

OIL SEAL (6X34X7.5)

09285-06018

1
Out of stock

24

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 25 - 26

23200-32C00

1
Out of stock

25

SCREW

09134-06010

1
Out of stock

26

.NUT This part replaces 08310-22067.

08310-00067

1
Out of stock

27

SCREW This part replaces 02112-06128.

02112-06127

2
Out of stock

28

SPRING

09443-09044

1
Out of stock

29

RETAINER, PUSH This part replaces 23117-30B01.

23117-33C01

1
Out of stock

30

BOLT This part replaces 01107-06127.

01500-06127

1
Out of stock
