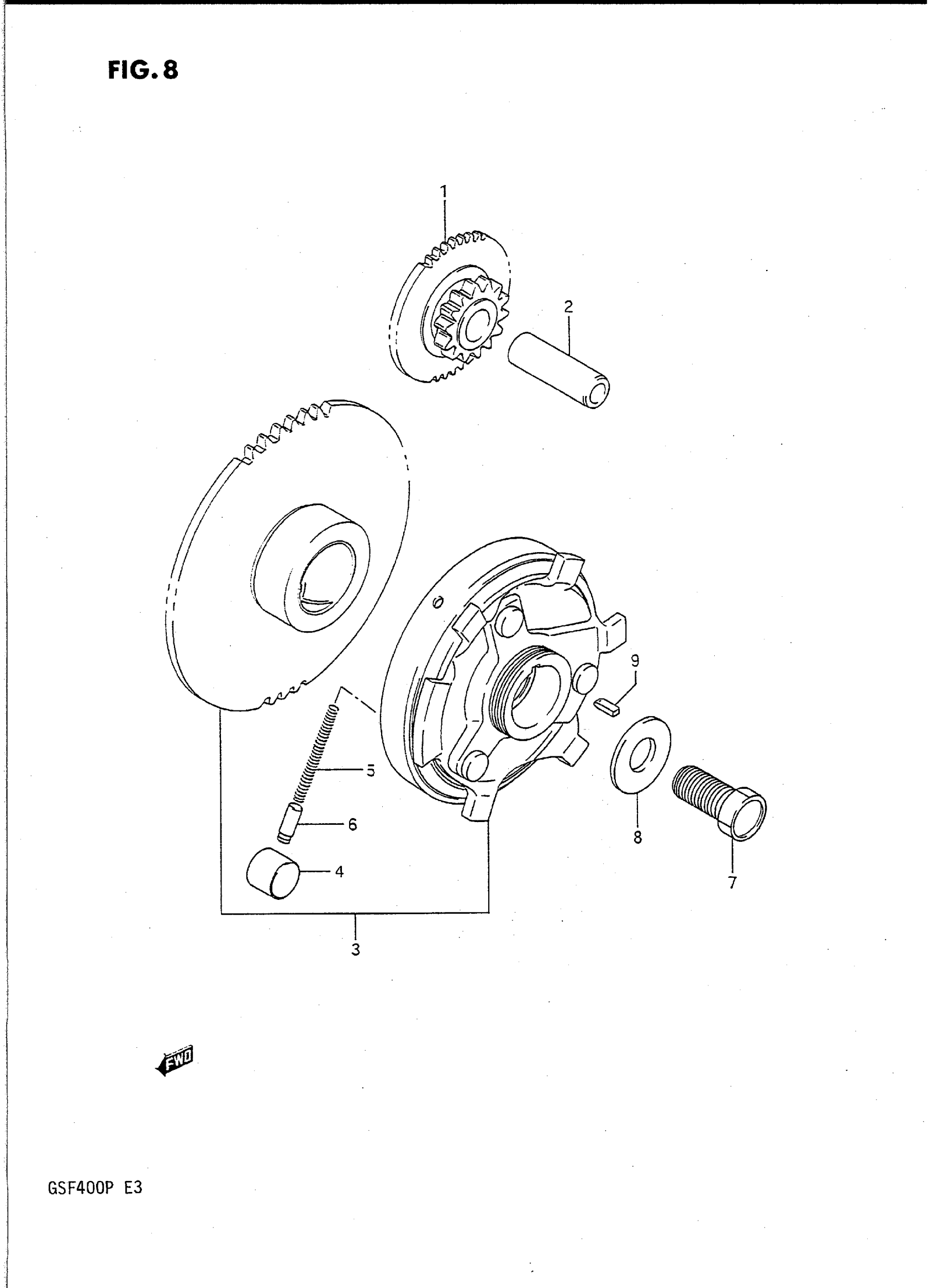

Suzuki GSF400P (1993) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE (NT:14/58)

12611-06C00

Unavailable

2

PIN

09206-13007

$17.38

3

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 12600-32811.

12600-32814

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL M/NCALIFORNIA ONLY This part replaces 12600-10840.

12600-10842

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 12600-33850.

12600-33853

Unavailable

3

CLUTCH SET, STARTER | MODEL PCALIFORNIA ONLY; Includes Item(s) 4 - 6

12600-10850

Unavailable

4

ROLLER

09261-15001

$3.01

5

SPRING

09440-04015

$2.24

6

PIECE, PUSH

12633-31000

$8.27

7

BOLT

01107-12258

Unavailable

8

WASHER (12X30X3.0)

09160-12036

$4.28

9

KEY

09421-03006

Unavailable
