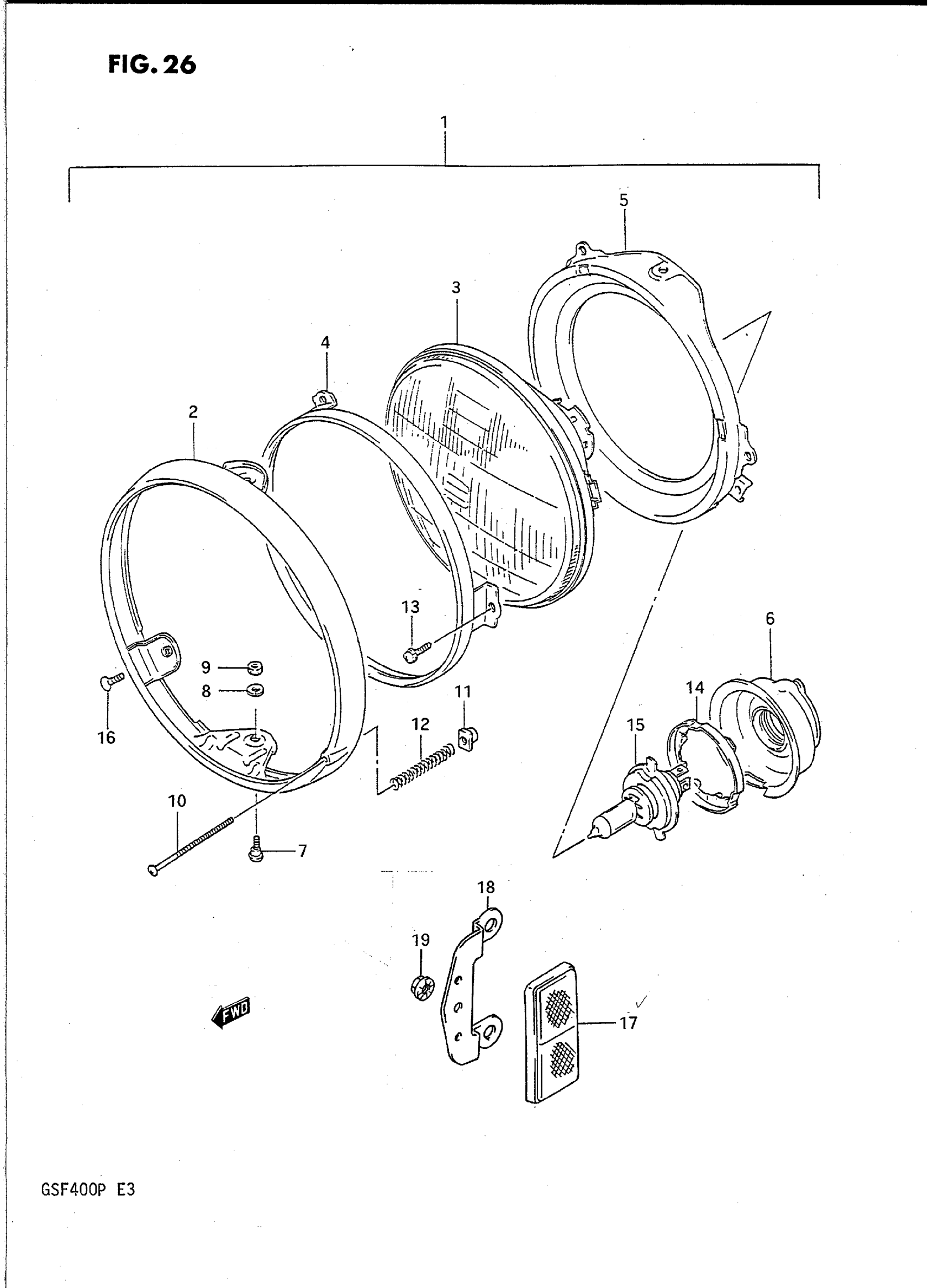

Suzuki GSF400P (1993) HEADLAMP (MODEL M/N) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 15

35100-01D30

Unavailable

2

RIM

35111-01D20

$81.93

3

LAMP UNIT

35121-34430

Unavailable

4

RING

35127-45030

Unavailable

5

RING, MOUNTING

35130-45030

Unavailable

6

COVER, SOCKET This part replaces 35173-45000.

35173-20A01

$20.33

7

SCREW

35181-15611

$3.80

8

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.83

9

NUT This part replaces 08310-11056.

08310-0005A

$1.83

10

SCREW This part replaces 35151-45030.

35151-45900

$3.44

11

NUT

35152-15611

$3.67

12

SPRING

35154-31900

$6.00

13

SCREW This part replaces 02112-04106.

02112-0410A

$1.30

14

SETTER, BULB

35136-34400

Unavailable

15

BULB (12V,60/55W,H4)

09471-12060

$22.69

16

SCREW This part replaces 02132-05127.

02122-05127

$1.68

17

REFLECTOR, FRONT SIDE

35950-43431

$20.13

18

BRACKET

35956-10D00

Unavailable

19

NUT This part replaces 08316-26055.

08316-2005A

$2.21
