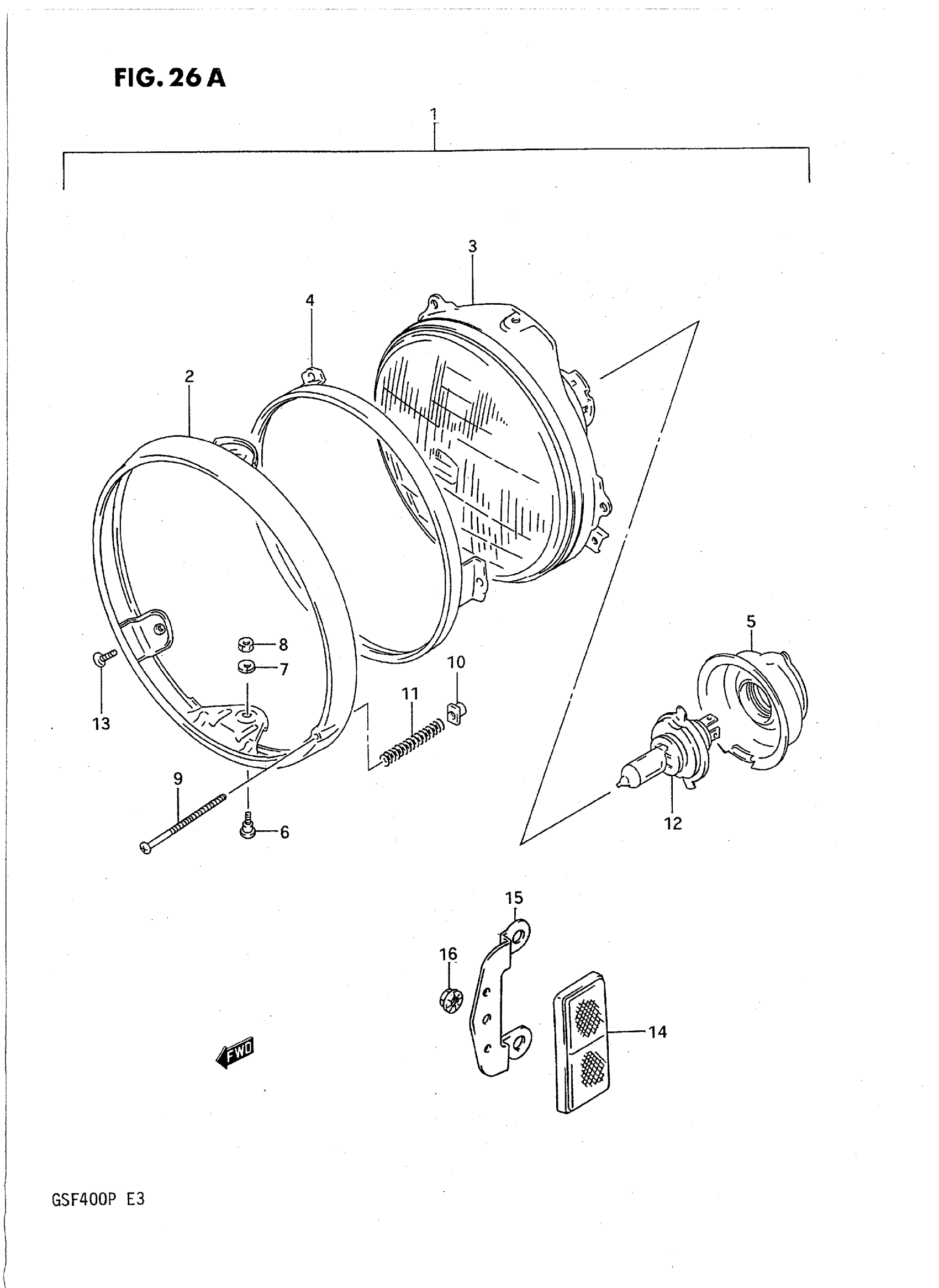

Find the part on the Headlamp diagram for your 1993 Suzuki GSF400P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSF400P Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 11 This part replaces 35100-10D30-999.

35100-10D70-999

1
Out of stock

2

RIM

35111-01D20

1
Out of stock

3

LAMP UNIT

35121-10D30

1
Out of stock

4

RING

35127-45030

1
Out of stock

5

COVER, SOCKET

35173-20A01

1
Out of stock

6

SCREW

35181-15611

2
Out of stock

7

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

8

NUT This part replaces 08310-11056.

08310-0005A

2
Out of stock

9

SCREW This part replaces 35151-45030.

35151-45900

1
Out of stock

10

NUT

35152-15611

1
Out of stock

11

SPRING

35154-31900

1
Out of stock

12

BULB (12V,60/55W,H4)

09471-12060

1
Out of stock

13

SCREW This part replaces 02132-05127.

02122-05127

2
Out of stock

14

REFLECTOR, FRONT SIDE

35950-43431

2
Out of stock

15

BRACKET

35956-10D00

2
Out of stock

16

NUT This part replaces 08316-26055.

08316-2005A

2
Out of stock
