1993 Suzuki GSF400P Signal Generator Diagram

← All diagrams

Find the part on the Signal Generator diagram for your 1993 Suzuki GSF400P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

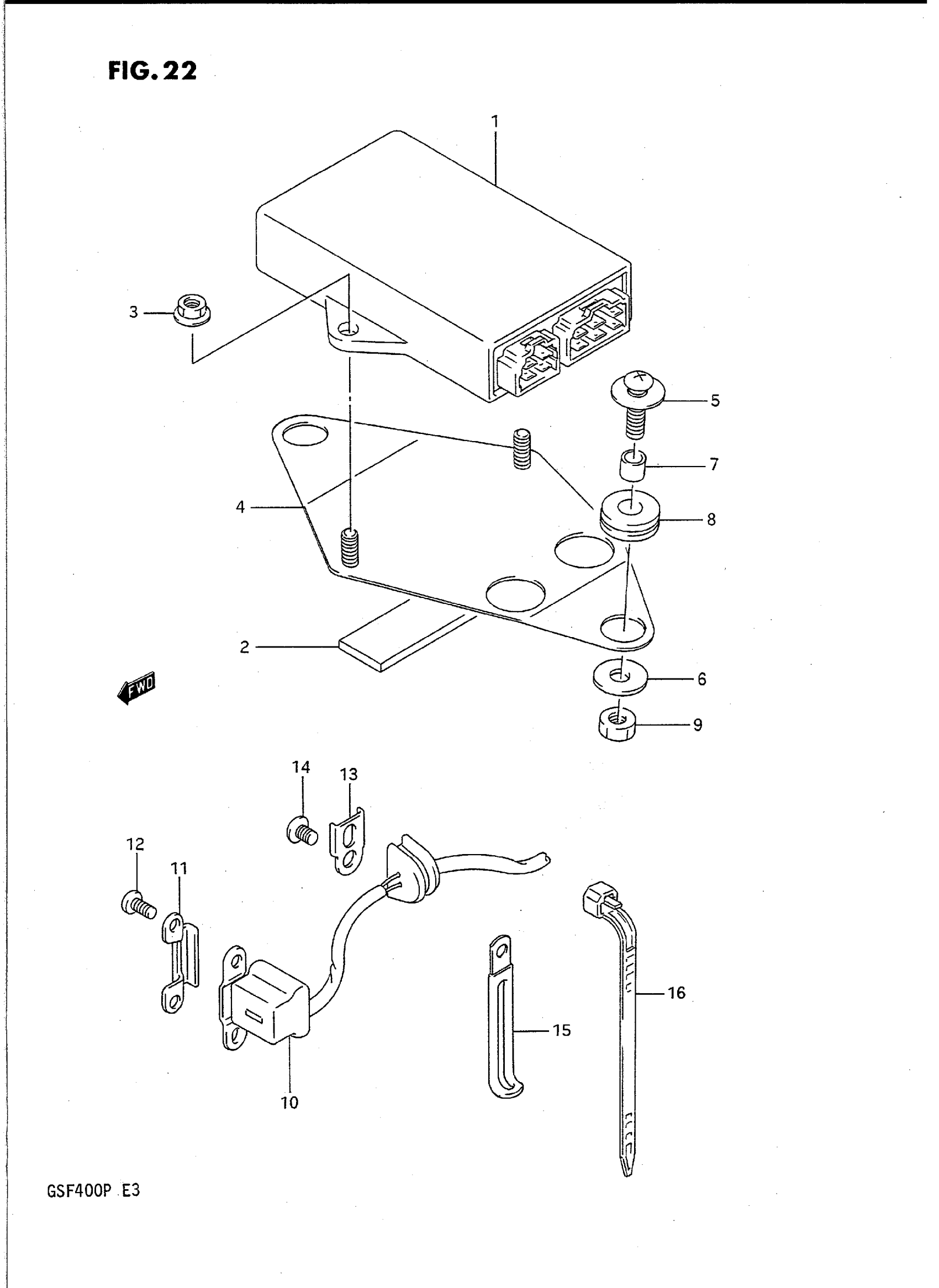

1993 Suzuki GSF400P Signal Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITER | MODEL M/N

32900-10D00

1
Out of stock

1

IGNITER | MODEL P

32900-10D60

1
Out of stock

1

IGNITER | CALIFORNIA ONLY,MODEL M/N

32900-10D20

1
Out of stock

1

IGNITER | CALIFORNIA ONLY,MODEL P

32900-10D50

1
Out of stock

2

PROTECTOR | CUT 20X90

33651-37000

1

$4.46

In stock

3

NUT This part replaces 08316-16058.

08316-1005A

2
Out of stock

4

PLATE, IGNITER

32930-10D00

1
Out of stock

5

SCREW (6X20)

09136-06009

2

$2.77

In stock

6

2

$1.90

In stock

7

SPACER (6.5X9X10.5) This part replaces 09180-06090.

09180-06264

2
Out of stock

8

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

9

NUT This part replaces 08310-12066.

08310-0006A

2
Out of stock

10

1

$241.17

In stock

11

PROTECTOR, SIGNAL GENERATOR

33115-30B01

1
Out of stock

12

SCREW

02112-04107

2

$1.67

In stock

13

1

$2.17

In stock

14

SCREW

02112-05087

1

$1.55

In stock

15

1

$1.86

In stock

16

CLAMP (L:125)

09407-14403

1
Out of stock
