2000 Suzuki GSF1200S Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2000 Suzuki GSF1200S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

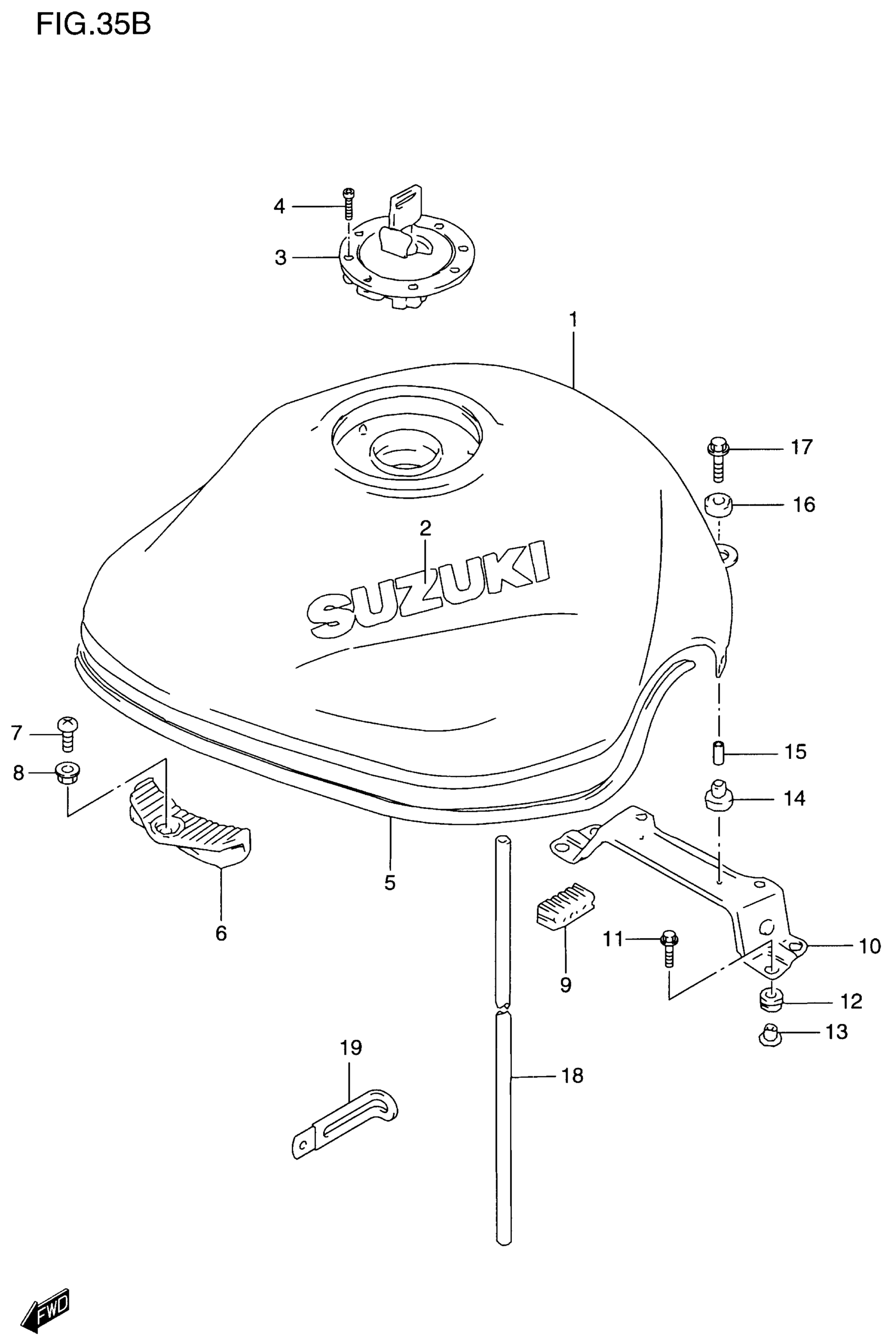

2000 Suzuki GSF1200S Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY,FUEL This part replaces 44100-26E61-2JX.

44100-26E30-YAY

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 44100-26E61-Y7G.

44100-26E30-Y7G

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E33 This part replaces 44100-26E70-2JX.

44100-26E40-2JX

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 2 - 2 This part replaces 44100-26E70-Y7G.

44100-26E40-Y7G

1
Out of stock

2

EMBLEM | FOR 2JX This part replaces 68111-47C00-24G.

68111-47C10-24G

2
Out of stock

2

NO DESCRIPTION AVAILABLE | FOR Y7G This part replaces 68111-47C00-1RR.

68111-47C10-1RR

2
Out of stock

3

CAP SET,FUEL TA This part replaces 44201-01832.

44201-01833

1
Out of stock

3

CAP SET, FUEL TANK | E33

44201-01842

1
Out of stock

4

BOLT

09106-05017

4

$2.92

In stock

5

MOLDING

68241-04X50-00B

1

$28.00

In stock

6

1

$14.10

In stock

7

SCREW This part replaces 02142-05103.

02142-0510B

1
Out of stock

8

WASHER

09169-05012

1

$2.58

In stock

9

CUSHION, SIDE

45149-31300

2
Out of stock

10

BRACKET, FUEL TANK REAR

44530-26E00

1
Out of stock

11

BOLT

09116-06131

4

$2.58

In stock

12

CUSHION

09320-09009

4

$4.50

In stock

13

SPACER

09169-06062

4
Out of stock

14

CUSHION, LOWER

09320-10038

2

$2.78

In stock

15

SPACER (6.5X9X18)

09180-06271

2
Out of stock

16

CUSHION, UPPER

09320-14017

2

$2.50

In stock

17

BOLT

09116-06172

2
Out of stock

18

1

$14.90

In stock

19

CLAMP

09404-10417

1

$2.97

In stock
