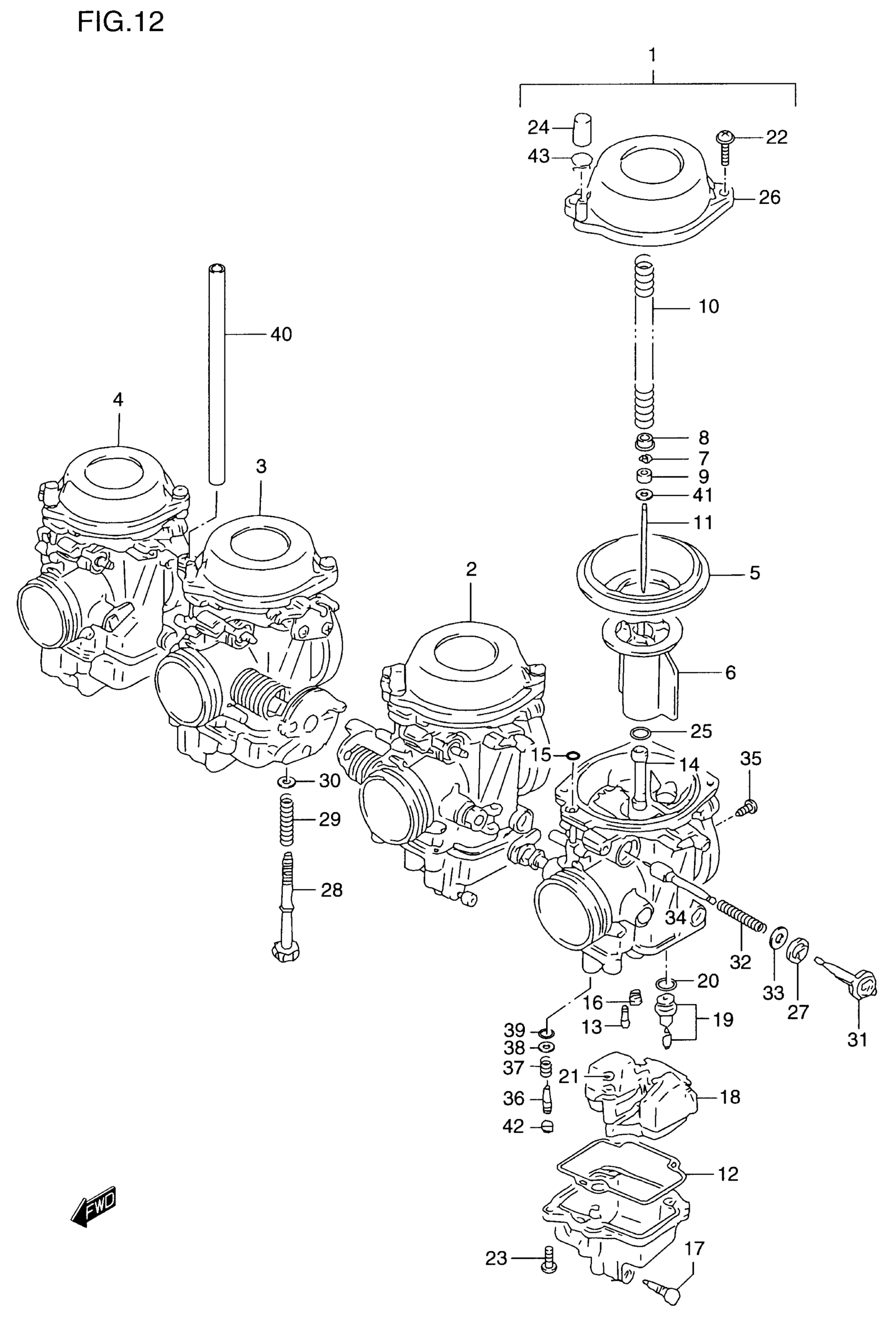

Suzuki GSF1200S (2000) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | MODEL V/W/X This part replaces 13201-27E50.

13201-27E51

Unavailable

1

CARBURETOR ASSY, LH | MODEL Y

13201-27E51

Unavailable

1

CARBURETOR ASSY, LH | MODEL V/W/X E33 This part replaces 13201-27E60.

13201-27E61

Unavailable

1

CARBURETOR ASSY, LH | MODEL Y E33

13201-27E61

Unavailable

2

CARBURETOR ASSY, ML | MODEL V/W/X This part replaces 13202-27E50.

13202-27E51

Unavailable

2

CARBURETOR ASSY, ML | MODEL Y

13202-27E51

Unavailable

2

CARBURETOR ASSY, ML | MODEL V/W/X E33 This part replaces 13202-27E60.

13202-27E61

Unavailable

2

CARBURETOR ASSY, ML | MODEL Y E33

13202-27E61

Unavailable

3

CARBURETOR ASSY, MR | MODEL V/W/X This part replaces 13203-27E50.

13203-27E51

Unavailable

3

CARBURETOR ASSY, MR | MODEL Y

13203-27E51

Unavailable

3

CARBURETOR ASSY, MR | MODEL V/W/X E33 This part replaces 13203-27E60.

13203-27E61

Unavailable

3

CARBURETOR ASSY, MR | MODEL Y E33

13203-27E61

Unavailable

4

CARBURETOR ASSY, RH | MODEL V/W/X This part replaces 13204-27E50.

13204-27E51

Unavailable

4

CARBURETOR ASSY, RH | MODEL Y

13204-27E51

Unavailable

4

CARBURETOR ASSY, RH | MODEL V/W/X E33 This part replaces 13204-27E60.

13204-27E61

Unavailable

4

CARBURETOR ASSY, RH | MODEL Y E33; Includes Item(s) 5 - 16

13204-27E61

Unavailable

5

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$27.09

6

VALVE, PISTON

13501-02D00

$105.67

7

.E-RING

13394-40D20

$6.15

8

RING

13382-42A00

$4.09

9

RING

13387-47010

$6.80

10

SPRING

13417-07C30

$7.15

11

NEEDLE, JET (5D80-1)

13383-27E50

$23.55

12

GASKET

13258-44B00

$8.95

13

JET, PILOT (37.5)

09492-35010

$8.54

14

JET, NEEDLE (O-8M)

09494-00898

Unavailable

15

O RING

13509-17C00

$4.09

16

.JET (#102.5)

09491-20012

$12.38

17

SCREW, DRAIN | Includes Item(s) 18 - 42 This part replaces 13247-13A00.

13247-02340

$4.56

18

FLOAT ASSY

13240-14D10

$77.75

19

VALVE ASSY,NEED | MODEL V This part replaces 13370-46E10.

13370-46E21

$82.32

19

VALVE ASSY,NEED | MODEL W/X/Y This part replaces 13370-46E20.

13370-46E21

$82.32

20

O RING This part replaces 13374-44080.

13374-35C00

$5.48

21

.O RING

13374-46710

$4.09

22

SCREW This part replaces 02112-75163.

02112-7516A

$2.42

23

SCREW

02112-05127

$1.97

24

CAP

13508-17C00

$4.47

24

CAP | E33

13508-17C00

$4.47

25

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.89

26

COVER, DIAPHRAGM

13502-17E20

Unavailable

27

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$3.95

28

ADJUSTER | MR

13267-14D10

Unavailable

29

SPRING | MR

13375-14D10

$5.64

30

WASHER | MR

13427-38300

$2.17

31

HOLDER

13418-17C10

$15.68

32

SPRING

13417-26D00

$6.87

33

WASHER

13432-47090

$2.58

34

PLUNGER ASSY

13411-05320

$30.25

35

JET, AIR (1.5)

09493-30004

$18.33

36

SCREW, PILOT (2,0)

13279-47070

$12.24

37

.SPRING (NT:45)

13268-47070

$3.97

38

WASHER

13291-29900

$1.87

39

O-RING This part replaces 13295-29900.

13295-29901

$3.97

40

.HOSE | MR L:600?175 This part replaces 09352-50903-600.

09352-50006-600

$6.75

41

WASHER

13382-44030

$3.50

42

PLUG

13281-05A00

$4.21

43

CLIP | E33

13671-05A40

$3.50
