2000 Suzuki GSF1200S Fuel Cock Diagram

← All diagrams

Find the part on the Fuel Cock diagram for your 2000 Suzuki GSF1200S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

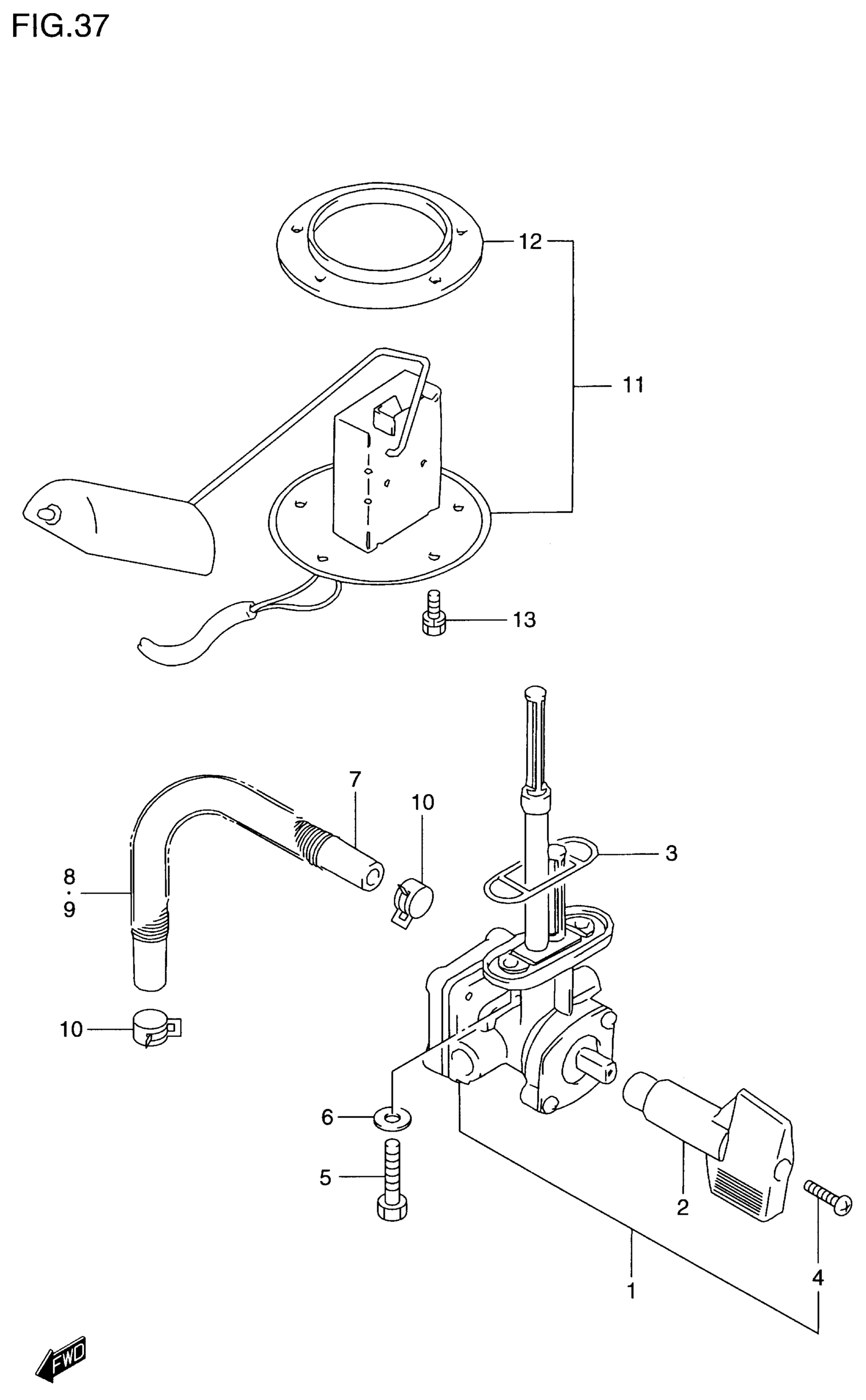

2000 Suzuki GSF1200S Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COCK ASSY,FUEL | Includes Item(s) 2 - 4 This part replaces 44300-26E00.

44300-26E02

1
Out of stock

2

LEVER, FUEL COCK

44306-26E00

1
Out of stock

3

.GASKET JOINT This part replaces 44348-87420.

44348-87421

1
Out of stock

4

1

$2.43

In stock

5

BOLT

09128-06057

2
Out of stock

6

GASKET

09168-06026

2
Out of stock

7

HOSE,6.5X11.5X6 This part replaces 09355-70125-600.

44421-12FR0

1
Out of stock

8

PROTECTOR (L:600?100) | E33

09351-14152-600

1
Out of stock

9

SPRING This part replaces 09440-17012.

09440-17012-XC0

1
Out of stock

10

CLIP This part replaces 09401-11407.

09401-11415

2
Out of stock

11

GAUGE ASSY,FUEL | Includes Item(s) 12 This part replaces 34810-27E00.

34810-27E02

1
Out of stock

12

GASKET

34825-45100

1
Out of stock

13

BOLT This part replaces 09117-05003.

01570-0510B

5
Out of stock
