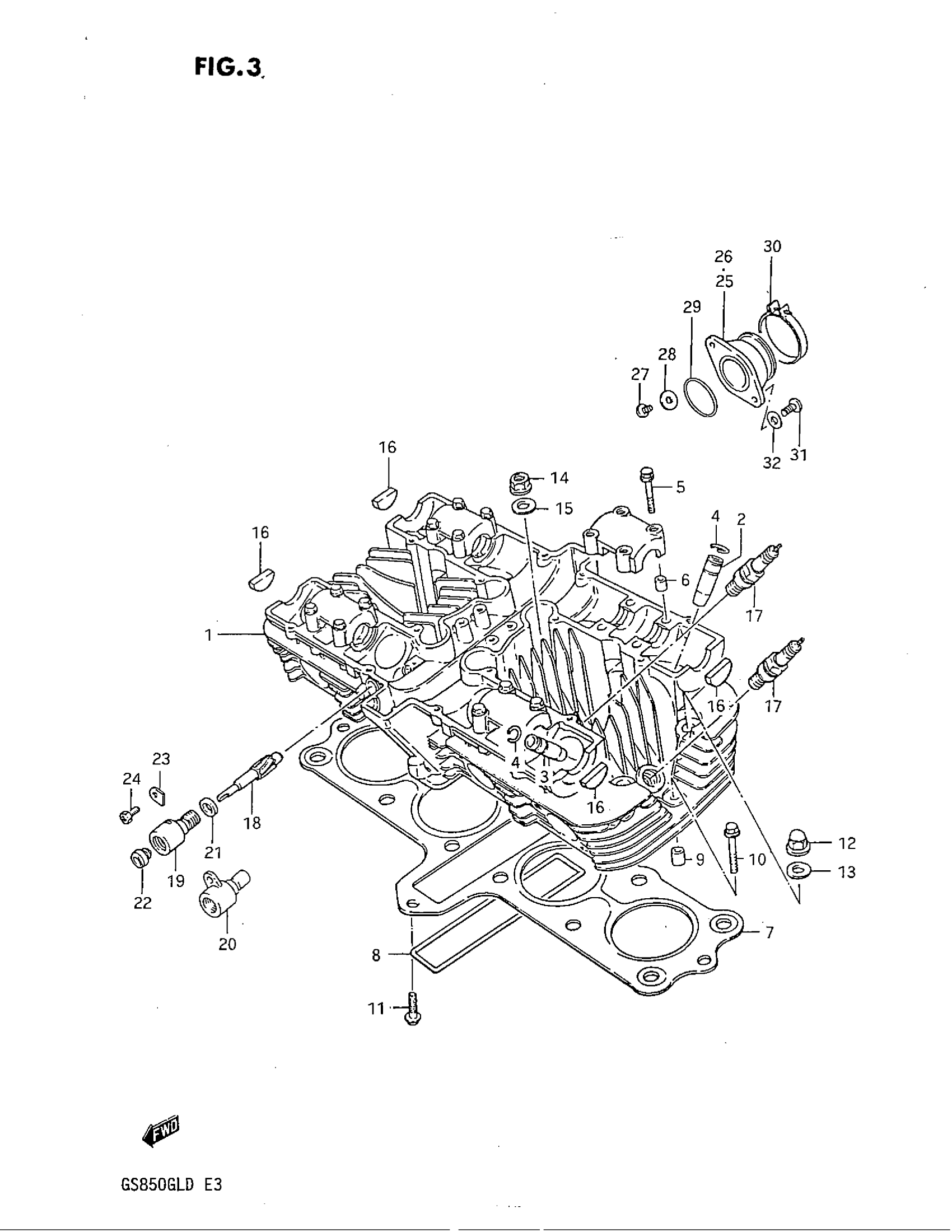

Suzuki GS850GL (1983) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | ~E.NO.155014 (MODEL Z) This part replaces 11100-45830.

11100-45871

Unavailable

1

CYLINDER HEAD SET | E.NO.155015~163175 This part replaces 11100-45120.

11100-45121

Unavailable

1

CYLINDER HEAD SET | E.NO.163176~

11100-45121

Unavailable

1

CYLINDER HEAD SET | MODEL D; Includes Item(s) 2 - 6

11100-45131

Unavailable

2

GUIDE, INTAKE VALVE

11115-45740

$45.97

3

GUIDE, EXHAUST VALVE

11116-45740

Unavailable

4

RING, VALVE GUIDE

09381-10003

$2.69

5

BOLT (6X39)

09103-06026

$1.84

6

PIN

09206-08001

$1.77

7

GASKET | MODEL Z This part replaces 11141-49003.

11141-49410

Unavailable

7

GASKET | MODEL D This part replaces 11141-49004.

11141-49410

Unavailable

8

O RING

09280-99003

Unavailable

9

PIN

04211-11189

$1.80

10

BOLT (CHROME) | MODEL Z This part replaces 01517-06458.

01550-06457

$2.73

10

BOLT | MODEL D This part replaces 01517-06455.

01550-0645A

$2.42

11

BOLT | MODEL Z This part replaces 01517-06308.

01550-06307

$2.73

11

BOLT | MODEL D This part replaces 01517-06305.

01550-0630A

$2.31

12

NUT

09159-10026

$5.67

13

GASKET | MODEL Z This part replaces 09168-10019.

09168-10017

$2.80

13

GASKET | MODEL D

09168-10017

$2.80

14

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.38

15

WASHER

09160-10039

$2.24

16

PLUG, CYLINDER HEAD SIDE

09241-23002

$5.58

17

SPARK PLUG (NGK,B8ES)

09482-00091

$2.80

17

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

Unavailable

18

GEAR, TACHO. DRIVEN (NT:10) This part replaces 26431-45001.

26431-45002

$54.45

19

SLEEVE | MODEL Z This part replaces 26441-45000.

26441-49000

$27.16

20

SLEEVE | MODEL D

26441-49000

$27.16

21

SEAL BAND

26451-45000

$4.63

22

OIL SEAL

09289-05002

$7.61

23

PLATE, GEAR SLEEVE | MODEL Z

26449-33000

$4.92

24

SCREW

09128-05101

$1.41

25

PIPE,INTAKE,R This part replaces 13110-45100.

13110-45101

$31.07

26

PIPE,INTAKE,L This part replaces 13120-45100.

13120-45101

$43.82

27

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

$2.64

28

GASKET

09168-05010

$1.73

29

O RING This part replaces 09280-38003.

09280-38004

$2.63

30

CLAMP

09402-50306

$4.36

31

SCREW This part replaces 02112-06208.

02112-06207

$1.77

32

WASHER This part replaces 08322-21068.

08322-01067

$1.86
