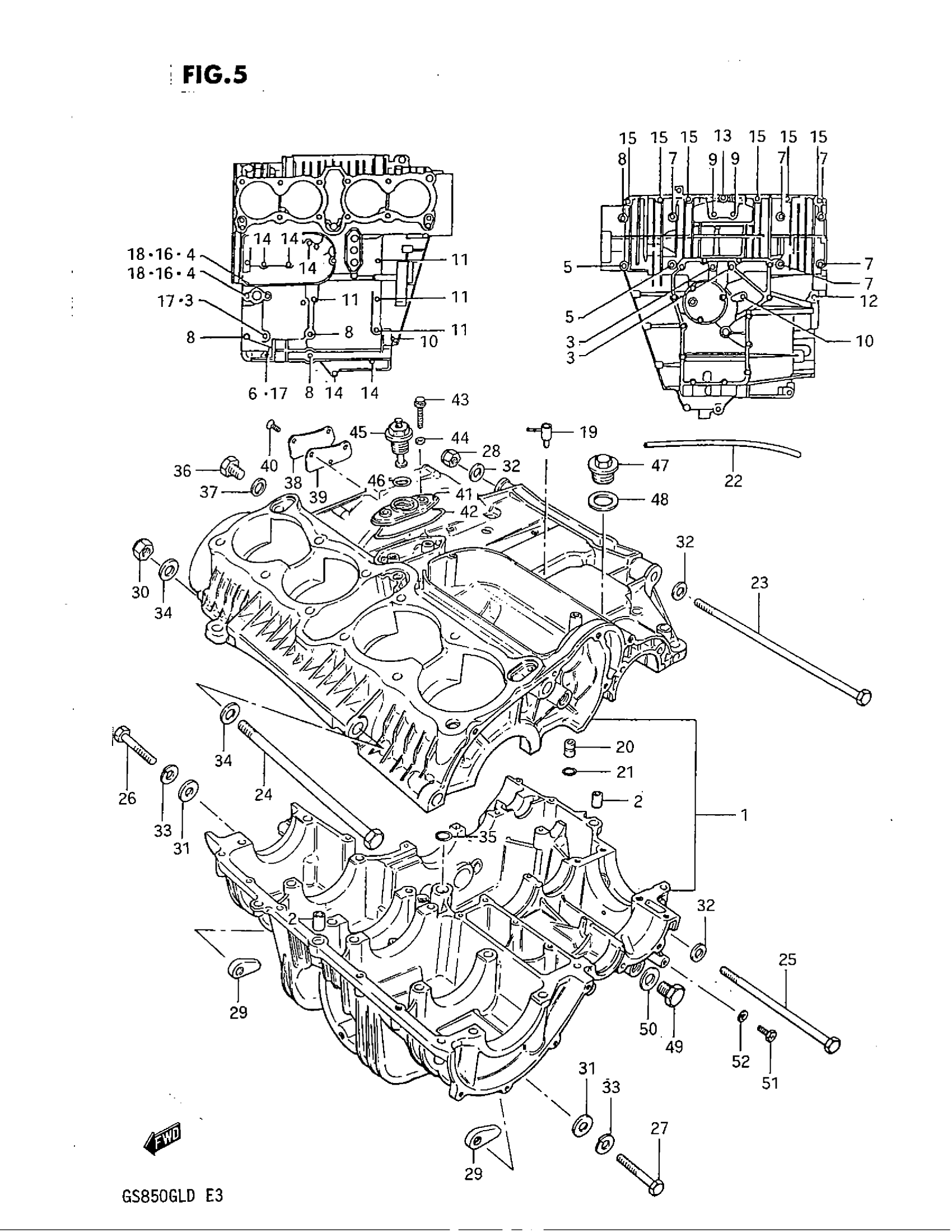

Find the part on the Crankcase diagram for your 1983 Suzuki GS850GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS850GL Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 21 This part replaces 11300-49841.

11300-49843

1
Out of stock

2

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

3

BOLT (8X125) This part replaces 09103-08020.

09103-08106

3
Out of stock

4

BOLT (8X110)

09103-08046

2
Out of stock

5

BOLT (8X100) This part replaces 09103-08009.

09103-08070

2
Out of stock

6

BOLT (8X105) This part replaces 09103-08023.

09103-08097

1
Out of stock

7

5

$5.63

In stock

8

BOLT This part replaces 01517-08658.

01550-08657

4
Out of stock

9

BOLT This part replaces 01517-08608.

01550-08607

2
Out of stock

10

BOLT This part replaces 01517-06908.

01550-06907

2
Out of stock

11

BOLT 6X75 This part replaces 01517-06758.

01550-06757

4
Out of stock

12

BOLT This part replaces 01517-06558.

01550-06557

1
Out of stock

13

BOLT (6X50) This part replaces 01517-06508.

01550-06507

1
Out of stock

14

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

5
Out of stock

15

BOLT This part replaces 01517-06358.

01550-06357

6
Out of stock

16

NUT This part replaces 08313-11088.

08313-10087

2
Out of stock

17

NUT (CHROME) This part replaces 08316-16088.

08316-10087

2
Out of stock

18

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

2
Out of stock

19

PLUG, BEVEL GEAR BREATHER

24821-45100

1
Out of stock

20

NOZZLE, OIL GALLERY

09364-05005

1
Out of stock

21

O RING, NOZZLE

09280-03003

1
Out of stock

22

HOSE(2X5X600) This part replaces 09343-02016.

09352-20504-600

1
Out of stock

23

NO DESCRIPTION AVAILABLE This part replaces 09100-10074.

09100-10074-XC0

1
Out of stock

24

SHAFT,RR SWNG P This part replaces 61211-39000.

61211-39002

1
Out of stock

25

BOLT (10x165)

09100-10078

1
Out of stock

26

BOLT This part replaces 01107-10608.

01500-1060A

1
Out of stock

27

BOLT This part replaces 01107-10508.

01500-1050A

1
Out of stock

28

NUT

09159-10011

2
Out of stock

29

NUT

09159-10020

2
Out of stock

30

NUT This part replaces 08319-21128.

08319-2112A

1
Out of stock

31

WASHER

09160-10005

2
Out of stock

32

WASHER This part replaces 08322-11108.

08322-01107

4
Out of stock

33

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

34

WASHER This part replaces 08322-11128.

08322-01127

3
Out of stock

35

O RING

09280-13001

1
Out of stock

36

1

$3.63

In stock

37

GASKET

09168-14004

1
Out of stock

38

CAP, OIL GALLERY

11394-45000

1
Out of stock

39

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

1
Out of stock

40

SCREW This part replaces 02122-06168.

02122-06167

3
Out of stock

41

HOUSING, OIL PRESSURE SWITCH

16445-45000

1
Out of stock

42

O RING

16448-45000

1
Out of stock

43

BOLT This part replaces 01517-06258.

01550-06257

2
Out of stock

44

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

2
Out of stock

45

SWITCH ASSY,OIL This part replaces 37820-45050.

37820-45061

1
Out of stock

46

O RING

09280-19001

1
Out of stock

47

PLUG This part replaces 09247-20002.

09248-20003

1
Out of stock

48

GASKET 20.1X27X This part replaces 09168-20004.

09168-20003

1
Out of stock

49

PLUG, OIL DRAIN This part replaces 09247-14019.

09247-14036

1
Out of stock

50

GASKET

09168-14004

1
Out of stock

51

SCREW (6X10) This part replaces 09128-06004.

09128-06044

1
Out of stock

52

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

1
Out of stock
