1981 Suzuki GS850GL Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1981 Suzuki GS850GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

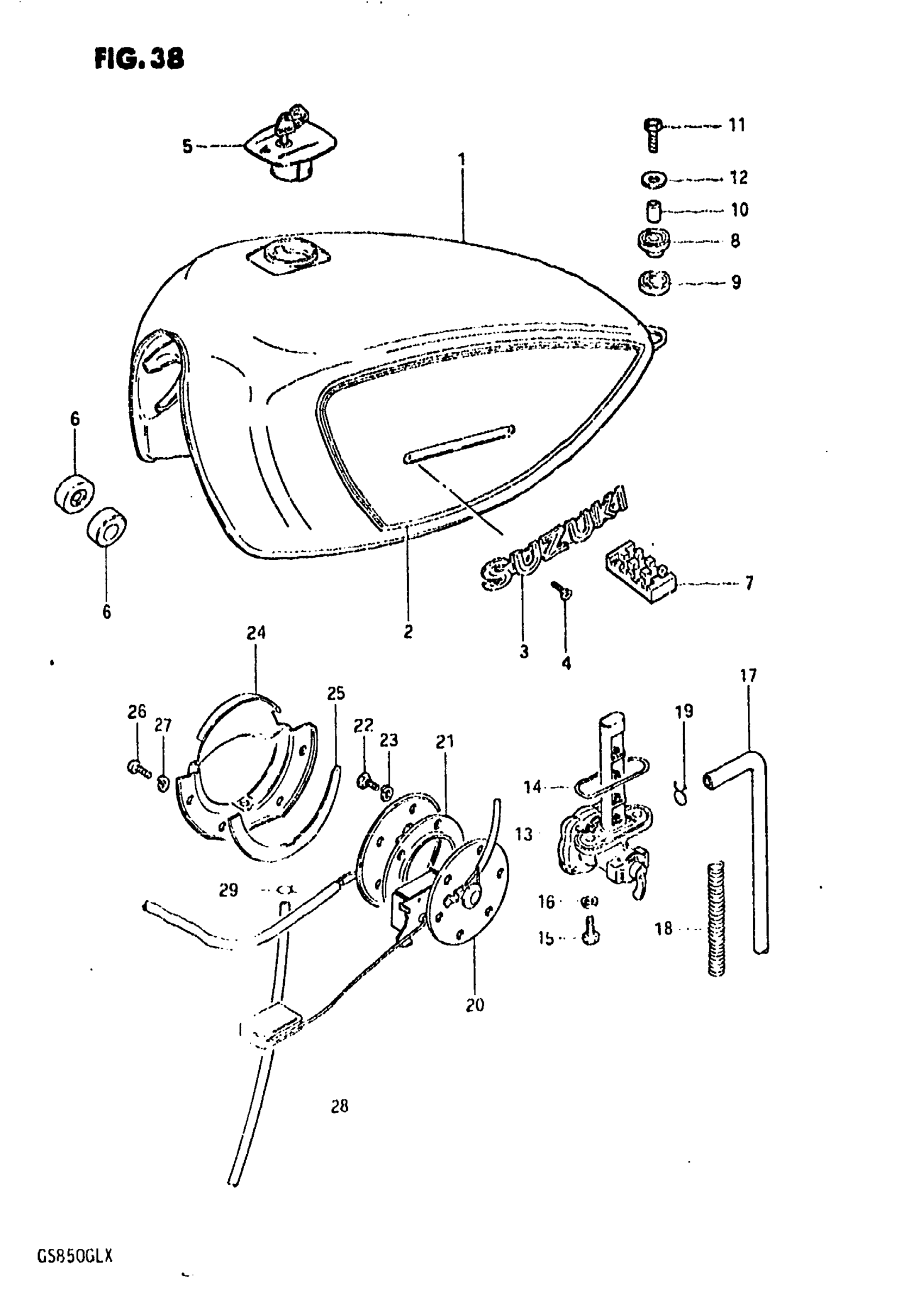

1981 Suzuki GS850GL Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 44100-45300-08D.

44110-45301-13L

1
Out of stock

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-45300-08E.

44110-45301-13L

1
Out of stock

2

TAPE SET (GOLD)

68110-45300-764

1
Out of stock

3

EMBLEM

68111-11400

2
Out of stock

4

SCREW This part replaces 02132-03065.

02122-0306B

4
Out of stock

5

CAP SET,FUEL TA This part replaces 44200-49702.

44200-49811

1
Out of stock

6

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

7

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

1
Out of stock

8

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

1
Out of stock

9

CUSHION, LOWER

09320-14013

2
Out of stock

10

SPACER This part replaces 09180-06072.

09180-06271

2
Out of stock

11

BOLT, REAR This part replaces 01107-06308.

01500-06307

2
Out of stock

12

WASHER, FRONT This part replaces 09160-06004.

09160-06134

2
Out of stock

13

COCK ASSY,FUEL | Includes Item(s) 14 This part replaces 44300-45370.

44300-45373

1
Out of stock

14

O RING This part replaces 44348-49170.

44348-49171

1
Out of stock

15

BOLT This part replaces 09128-06006.

09128-06057

2
Out of stock

16

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

2
Out of stock

17

HOSE(7X10.2X200 This part replaces 09343-07026.

09352-70104-00B

1
Out of stock

18

SPRING This part replaces 09440-13017.

09440-13043

1
Out of stock

19

CLIP

09401-10403

2
Out of stock

20

GAUGE ASSY, FUEL LEVEL | Includes Item(s) 21

34810-45310

1
Out of stock

21

GASKET

34825-45100

1
Out of stock

22

BOLT This part replaces 01104-05108.

01500-0510B

5
Out of stock

23

LOCK WASHER This part replaces 08321-21058.

08321-0105A

5
Out of stock

24

PLATE, FUEL DRAIN This part replaces 34885-45301.

34885-34500

1
Out of stock

25

GASKET,FUEL DRA This part replaces 34888-49000.

34888-49001

1
Out of stock

26

4

$1.55

In stock

27

LOCK WASHER This part replaces 08321-21058.

08321-0105A

4
Out of stock

28

HOSE This part replaces 09343-05151.

09352-50005-00B

1
Out of stock

29

CLIP

09401-08402

1
Out of stock
