1981 Suzuki GS850GL AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1981 Suzuki GS850GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

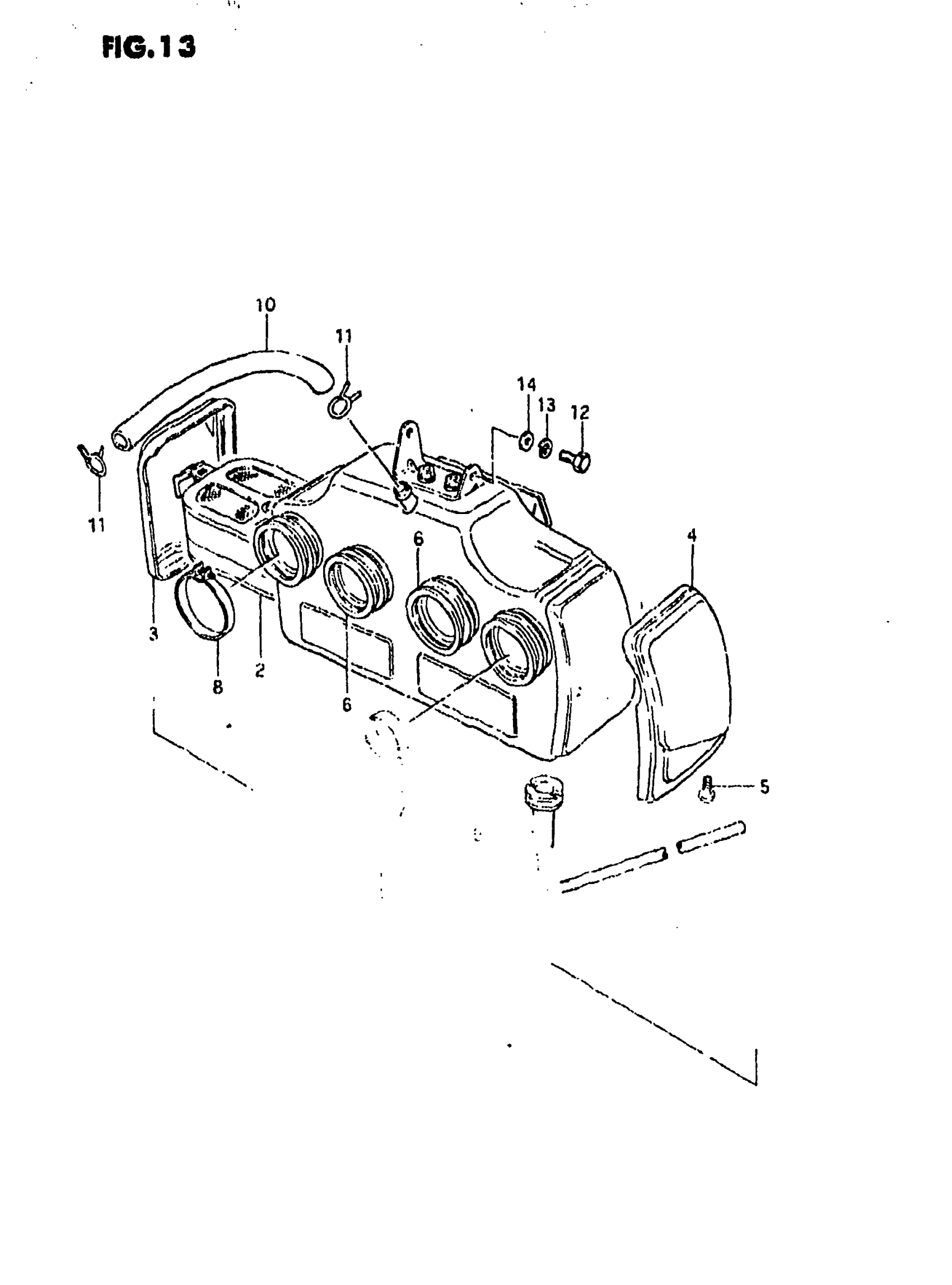

1981 Suzuki GS850GL AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 9 This part replaces 13700-49070.

13700-49072

1
Out of stock

2

FILTER

13780-49070

1
Out of stock

3

CAP, LH This part replaces 13740-49070.

13740-45100

1
Out of stock

4

CAP, RH This part replaces 13750-49070.

13750-45100

1
Out of stock

5

.SCREW This part replaces 02142-05126.

02142-0512A

3
Out of stock

6

HOSE

13881-49070

4
Out of stock

7

RING

13885-45450

4
Out of stock

8

..CLAMP This part replaces 09402-60206.

09402-60208

4
Out of stock

9

TUBE,DRAIN This part replaces 13870-00130.

13870-11459

1
Out of stock

10

HOSE This part replaces 13851-00250.

09352-11154-600

1
Out of stock

11

CLIP

09401-14301

2
Out of stock

12

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

13

2

$2.28

In stock

14

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock
← AIR Cleaner Carburetor →

More Air & Fuel diagrams
