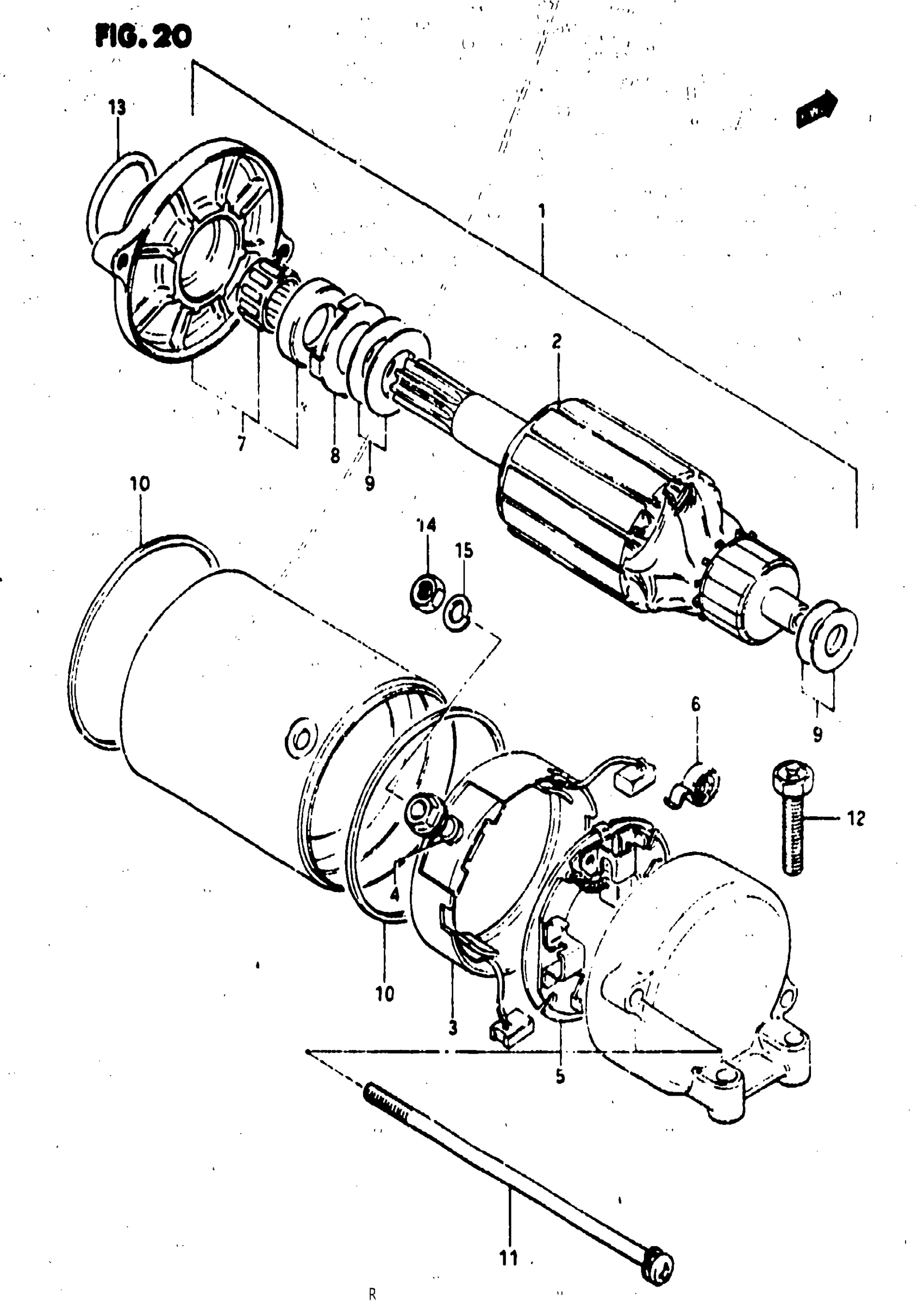

Find the part on the Starting Motor diagram for your 1983 Suzuki GS850G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS850G Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 11 This part replaces 31100-49040.

31100-49050

1
Out of stock

2

ARMATURE

31311-49040

1
Out of stock

3

TERMINAL SET, BRUSH (+) This part replaces 31130-49040.

31130-06B00

1
Out of stock

4

O RING

31143-49040

1
Out of stock

5

HOLDER SET, BRUSH (-) This part replaces 31132-49040.

31132-06B00

1
Out of stock

6

SPRING, BRUSH

31135-49040

4
Out of stock

7

HOUSING SET, DRIVE

31100-49810

1
Out of stock

8

SHIM SET This part replaces 31360-49240.

31170-31300

1
Out of stock

9

SHIM SET This part replaces 31360-49040.

31170-31300

1
Out of stock

10

SEAL RING

31264-49040

2
Out of stock

11

SCREW

31281-49040

2
Out of stock

12

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

2
Out of stock

13

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

1
Out of stock

14

.NUT This part replaces 08310-22068.

08310-00067

1
Out of stock

15

1

$2.28

In stock
