1983 Suzuki GS850G Left Handle Switch Diagram

← All diagrams

Find the part on the Left Handle Switch diagram for your 1983 Suzuki GS850G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

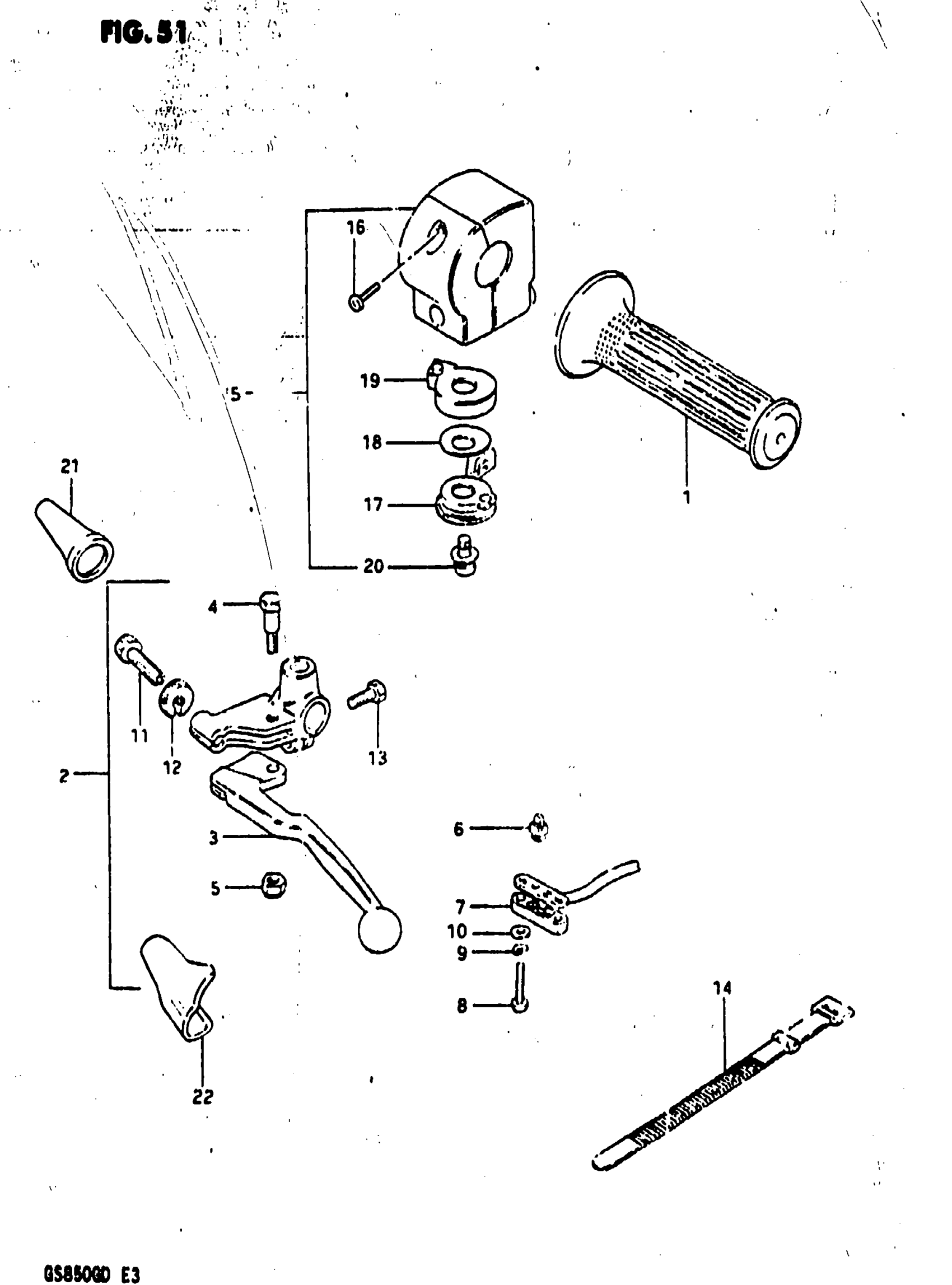

1983 Suzuki GS850G Left Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, LH This part replaces 57211-45010.

57211-49510

1
Out of stock

2

LEVER ASSY,CLUT | Includes Item(s) 3 - 13 This part replaces 57500-49112.

57500-49301

1
Out of stock

3

LEVER, CLUTCH

57620-49111

1
Out of stock

4

1

$6.47

In stock

5

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

6

HOLDER

57465-18601

1

$4.33

In stock

7

COVER

57481-33010

1

$5.98

In stock

8

2

$2.43

In stock

9

2

$1.27

In stock

10

1

$2.10

In stock

11

ADJUSTER, CABLE

57441-11010

1

$5.60

In stock

12

NUT

57442-11010

1

$2.92

In stock

13

BOLT

57451-49100

1
Out of stock

14

BAND (L:120)

09407-12402

1
Out of stock

15

NO DESCRIPTION AVAILABLE | Includes Item(s) 16 - 20 This part replaces 37400-49470.

37400-49473

1
Out of stock

16

2

$2.10

In stock

17

LEVER, STARTER This part replaces 58721-27502.

58721-27503

1
Out of stock

18

WASHER

58722-03010

1

$3.81

In stock

19

BODY This part replaces 37572-49440.

37572-49441

1
Out of stock

20

1

$2.60

In stock

21

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

1
Out of stock

22

COVER

57661-31000

1
Out of stock
