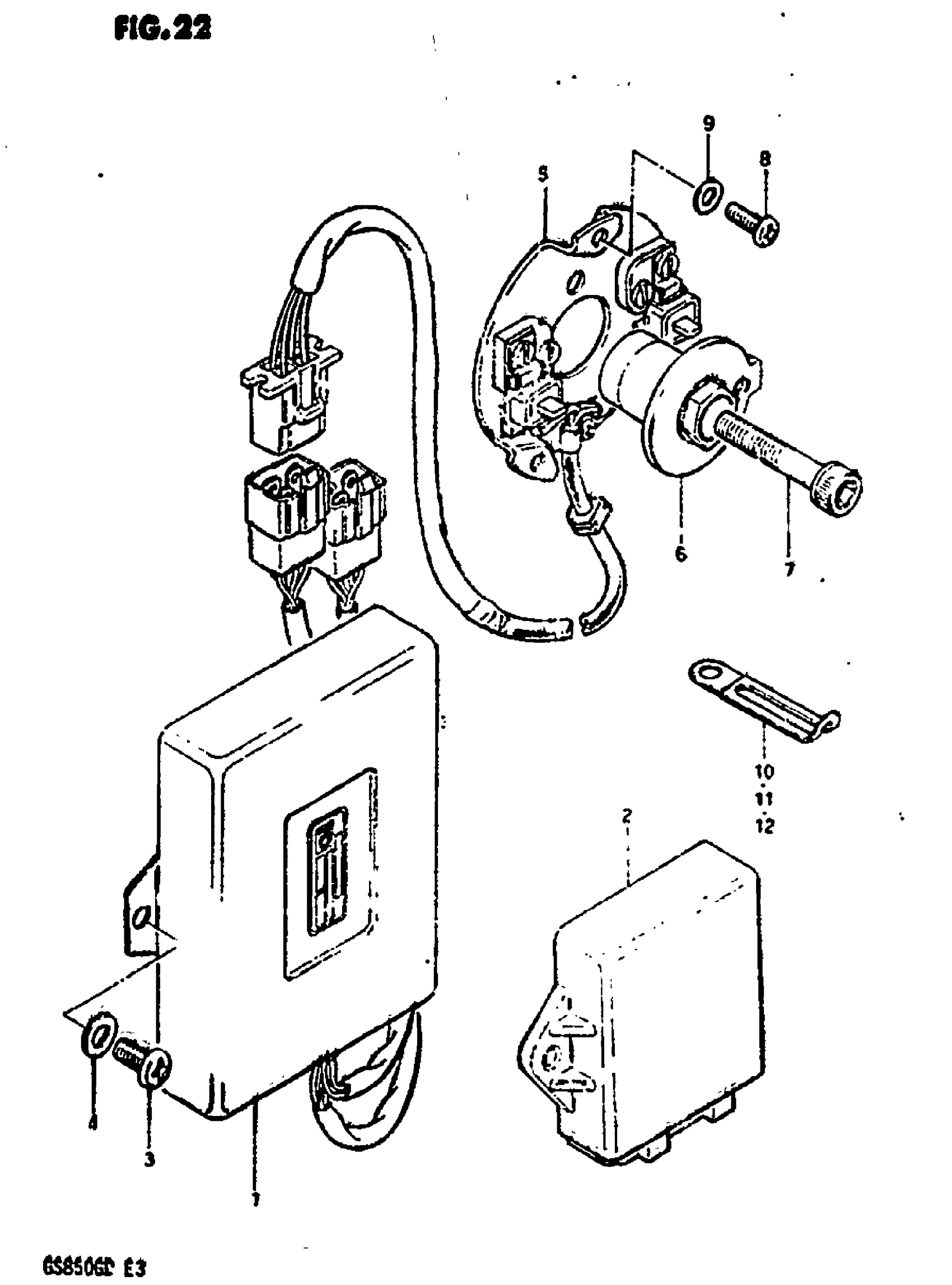

Suzuki GS850G (1983) SIGNAL GENERATOR Diagram

#

Description
Price

1

IGNITER UNIT | MODEL Z

32900-49410

Unavailable

2

IGNITER UNIT | MODEL D

32900-49420

Unavailable

3

SCREW This part replaces 02112-06128.

02112-06127

$1.83

4

WASHER This part replaces 08322-21068.

08322-01067

$1.86

5

STATOR, SIG GEN | MODEL Z This part replaces 33110-49410.

33110-493A0

$382.73

5

STATOR, SIG GEN | MODEL O This part replaces 33110-49420.

33110-493A0

$382.73

6

ROTOR, SIGNAL

33120-49410

Unavailable

7

BOLT, MUFFLER SUPPORT This part replaces 09106-08011.

07130-0845B

$1.53

8

SCREW

09125-05024

$1.87

9

WASHER This part replaces 09160-05027.

08322-01057

$1.86

10

CLAMP This part replaces 09404-06401.

09404-06039

$1.73

11

CLAMP This part replaces 09404-08401.

09404-08420

$2.90

12

CLAMP This part replaces 09404-08402.

09404-08420

$2.90
