1983 Suzuki GS850G Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1983 Suzuki GS850G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

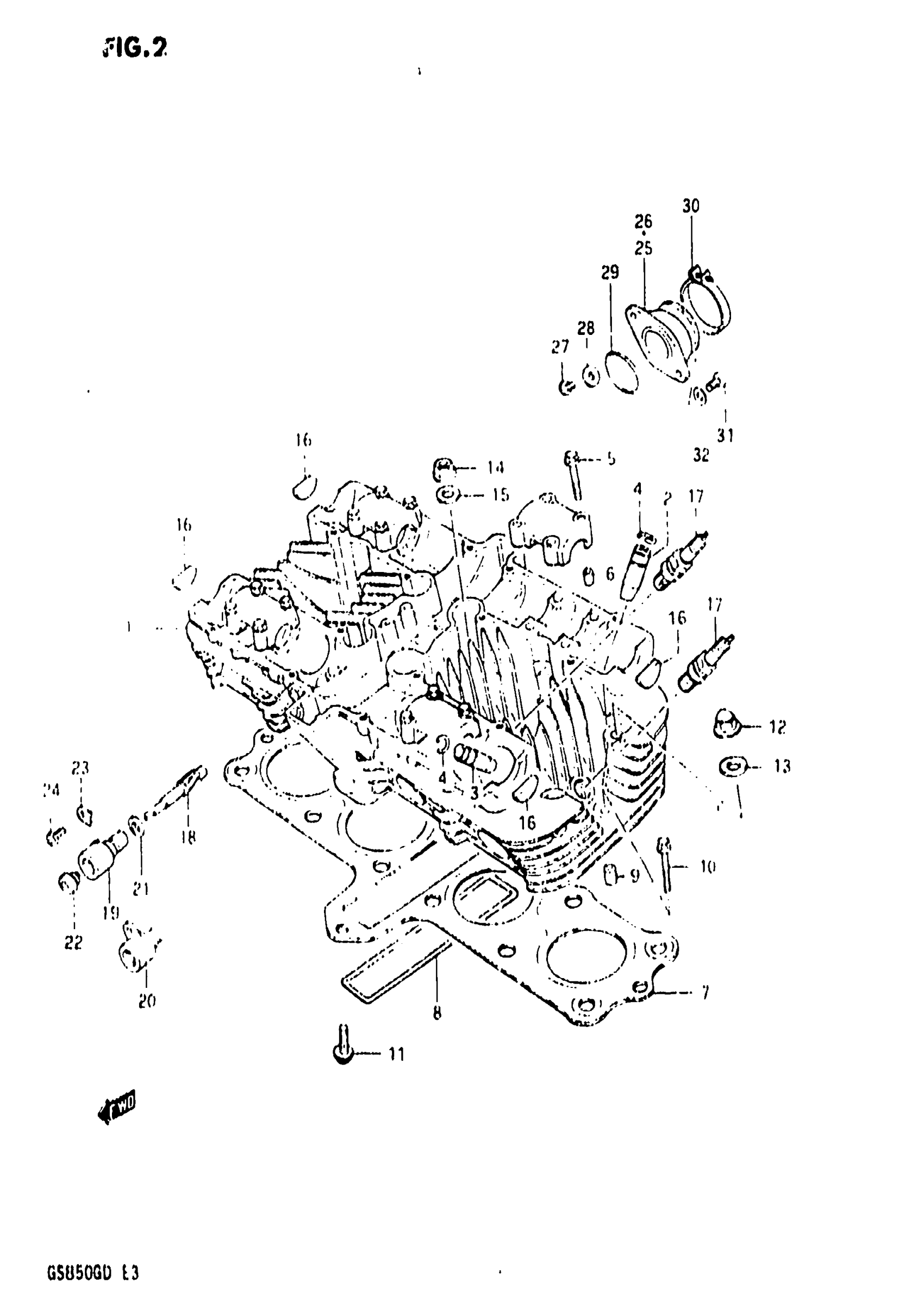

1983 Suzuki GS850G Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD SET | MODEL Z This part replaces 11100-45120.

11100-45121

1
Out of stock

1

CYLINDER HEAD SET | MODEL 0; Includes Item(s) 2 - 6 This part replaces 11100-45130.

11100-45131

1
Out of stock

2

GUIDE, INTAKE VALVE

11115-45740

4

$45.97

In stock

3

GUIDE, EXHAUST VALVE

11116-45740

4
Out of stock

4

RING, VALVE GUIDE

09381-10003

8

$2.69

In stock

5

BOLT (6X39)

09103-06026

16
Out of stock

6

PIN

09206-08001

8
Out of stock

7

GASKET | MODEL Z This part replaces 11141-49003.

11141-49410

1
Out of stock

7

GASKET | MODEL D This part replaces 11141-49004.

11141-49410

1
Out of stock

8

O RING

09280-99003

1
Out of stock

9

PIN

04211-11189

2

$1.94

In stock

10

2

$2.86

In stock

11

1

$2.84

In stock

12

NUT

09159-10026

4

$6.13

In stock

13

GASKET

09168-10017

4

$2.94

In stock

14

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

8
Out of stock

15

WASHER

09160-10039

8
Out of stock

16

4

$5.98

In stock

17

4

$2.98

In stock

17

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

4
Out of stock

19

1

$38.30

In stock

20

SLEEVE | MODEL D

26441-49000

1

$38.30

In stock

21

SEAL BAND

26451-45000

1
Out of stock

22

OIL SEAL

09289-05002

1

$8.21

In stock

23

PLATE, GEAR SLEEVE | MODEL Z

26449-33000

1
Out of stock

24

SCREW

09128-05101

1
Out of stock

25

2

$33.85

In stock

26

2

$43.82

In stock

28

GASKET

09168-05010

4
Out of stock

29

4

$2.92

In stock

30

CLAMP

09402-50306

4

$4.71

In stock

31

8

$2.22

In stock

32

1

$1.84

In stock
