1983 Suzuki GS850G CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 1983 Suzuki GS850G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

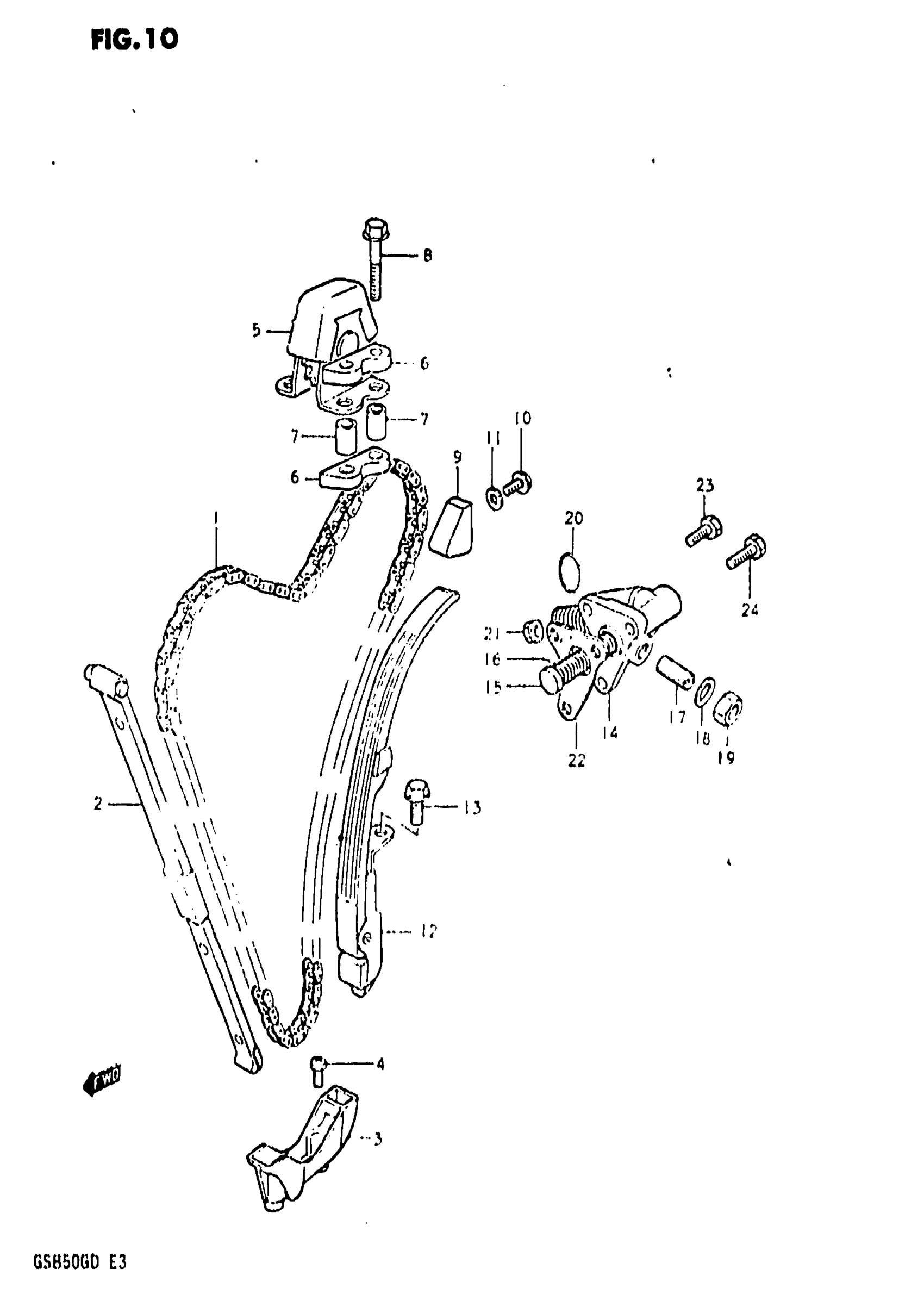

1983 Suzuki GS850G CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE (120L)

12760-45040

1
Out of stock

2

GUIDE,CAM CHAIN This part replaces 12771-45052.

12771-45053

1
Out of stock

3

HOLDER, CAM CHAIN GUIDE

12776-45001

1
Out of stock

4

SCREW This part replaces 02112-06208.

02112-06207

2
Out of stock

5

IDLER, CAM CHAIN

12780-45050

1
Out of stock

6

CUSHION

12788-45050

4
Out of stock

7

SPACER (6.5X10X13) This part replaces 09180-06060.

09180-06291

4
Out of stock

8

BOLT This part replaces 01517-06308.

01550-06307

4
Out of stock

9

GUIDE, CAM CHAIN NO.2

12791-45040

1
Out of stock

10

BOLT This part replaces 01517-06128.

01550-06127

2
Out of stock

11

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

2
Out of stock

12

TENSIONER, CAM CHAIN

12810-45040

1
Out of stock

13

BOLT M8X16 This part replaces 01517-08168.

01550-08167

1
Out of stock

14

ADJUSTER,TENSIO | MODEL Z This part replaces 12830-45002.

12830-45003

1
Out of stock

14

ADJUSTER,TENSIO | MODEL D; Includes Item(s) 15 - 21 This part replaces 12830-45010.

12830-45003

1
Out of stock

15

PUSH ROO

12833-45001

1
Out of stock

16

SPRING

09440-12017

1
Out of stock

17

SCREW

12838-45001

1
Out of stock

18

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

19

1

$1.93

In stock

20

.O RING (D:1.9,ID:5.7) This part replaces 09280-06003.

09280-06005

1
Out of stock

21

NUT This part replaces 08316-16068.

08319-31067

1
Out of stock

22

GASKET,TENS ADJ This part replaces 12837-45000.

12837-45000-H17

1
Out of stock

23

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

2
Out of stock

24

BOLT

09128-06017

1
Out of stock
