1979 Suzuki GS850G Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1979 Suzuki GS850G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

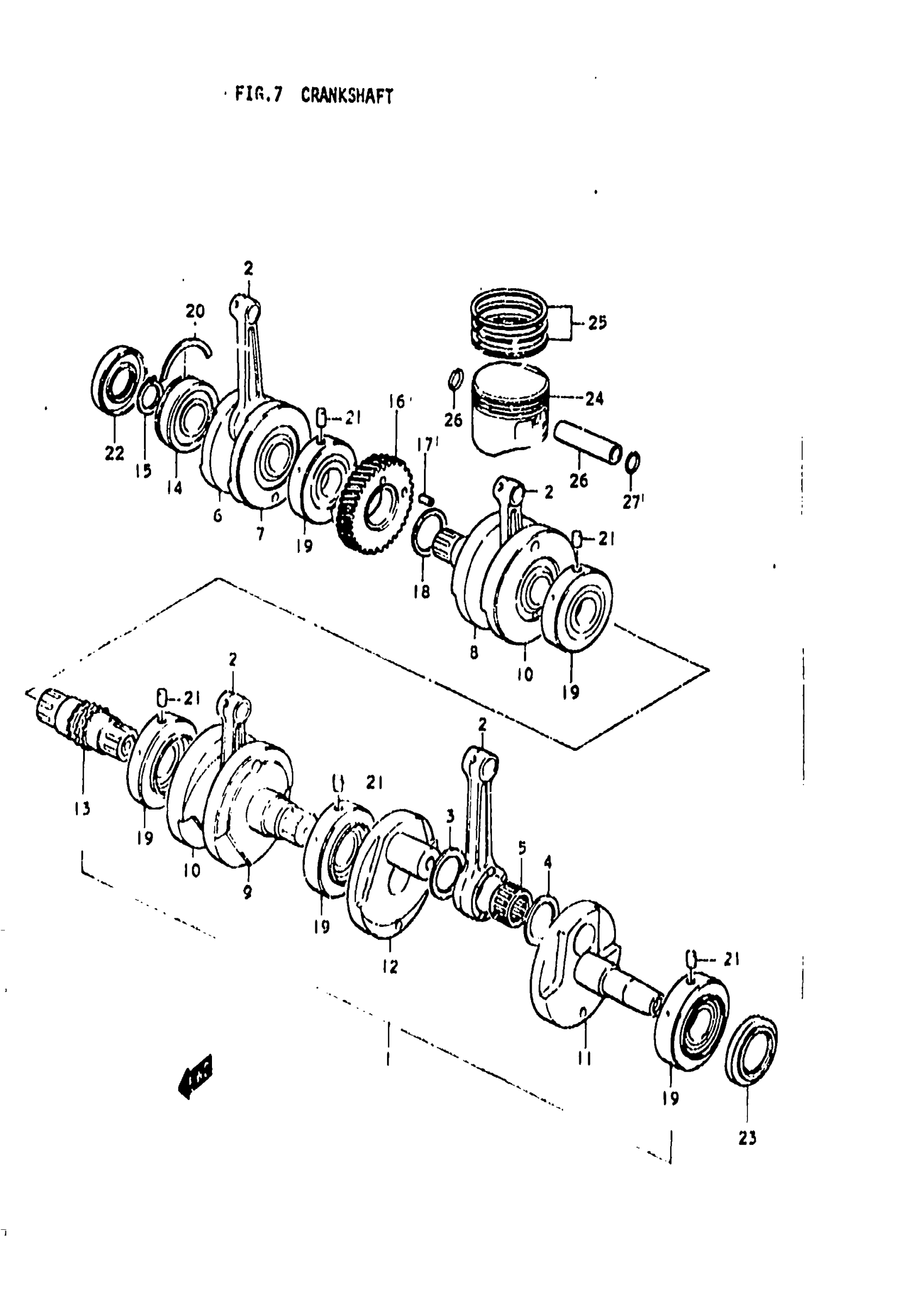

1979 Suzuki GS850G Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 19 This part replaces 12200-45100.

12200-45104

1
Out of stock

2

ROD, CONNECTING This part replaces 12161-45100.

12161-45101

4
Out of stock

3

WASHER

09160-29008

4
Out of stock

4

WASHER

09160-29009

4
Out of stock

5

BEARING

09263-29002

4
Out of stock

6

CRANKSHAFT, RH

12220-45100

1
Out of stock

7

WEB, CRANKSHAFT RH

12231-45100

1
Out of stock

8

CRANKSHAFT, MIDDLE RH

12241-45100

1
Out of stock

9

CRANKSHAFT, MIDDLE LH

12271-45100

1
Out of stock

10

WEB, CRANKSHAFT MIDDLE

12250-45100

2
Out of stock

11

CRANKSHAFT, LH This part replaces 12261-45100.

12261-45101

1
Out of stock

12

WEB, CRANKSHAFT LH

12290-45100

1
Out of stock

13

SHAFT, TIMING CHAIN DRIVE | NT:15

12281-45100

1
Out of stock

14

BEARING, RH

09262-30033

1
Out of stock

15

CIRCLIP This part replaces 08331-11308.

08331-31309

1
Out of stock

16

GEAR, PRIMARY DRIVE | NT:49

21111-45100

1
Out of stock

17

PIN

04221-08129

1
Out of stock

18

WASHER

08211-28403

1
Out of stock

19

BEARING This part replaces 09264-32002.

09264-32009

5
Out of stock

20

C RING, BREARING RH

09390-72004

1
Out of stock

21

PIN

04221-07129

5
Out of stock

22

OIL SEAL, RH

09283-30021

1
Out of stock

23

OIL SEAL, STARTER CLUTCH GEAR | 48x60x8 This part replaces 09289-48001.

09289-48002

1
Out of stock

24

PISTON (STD)

12111-45110

4
Out of stock

24

PISTON SET This part replaces 12111-45110-050.

12103-45830-050

4
Out of stock

24

PISTON (OS:1.0)

12111-45110-100

4
Out of stock

25

RING SET, PISTO This part replaces 12140-45120.

12140-45121

4
Out of stock

25

NO DESCRIPTION AVAILABLE This part replaces 12140-45120-050.

12140-45121-050

4
Out of stock

25

PISTON RING SET (OS:1.0)

12140-49001

4
Out of stock

26

PIN, PISTON

12151-29001

4
Out of stock

27

SNAP RING This part replaces 09381-16002.

09381-16001

8
Out of stock
