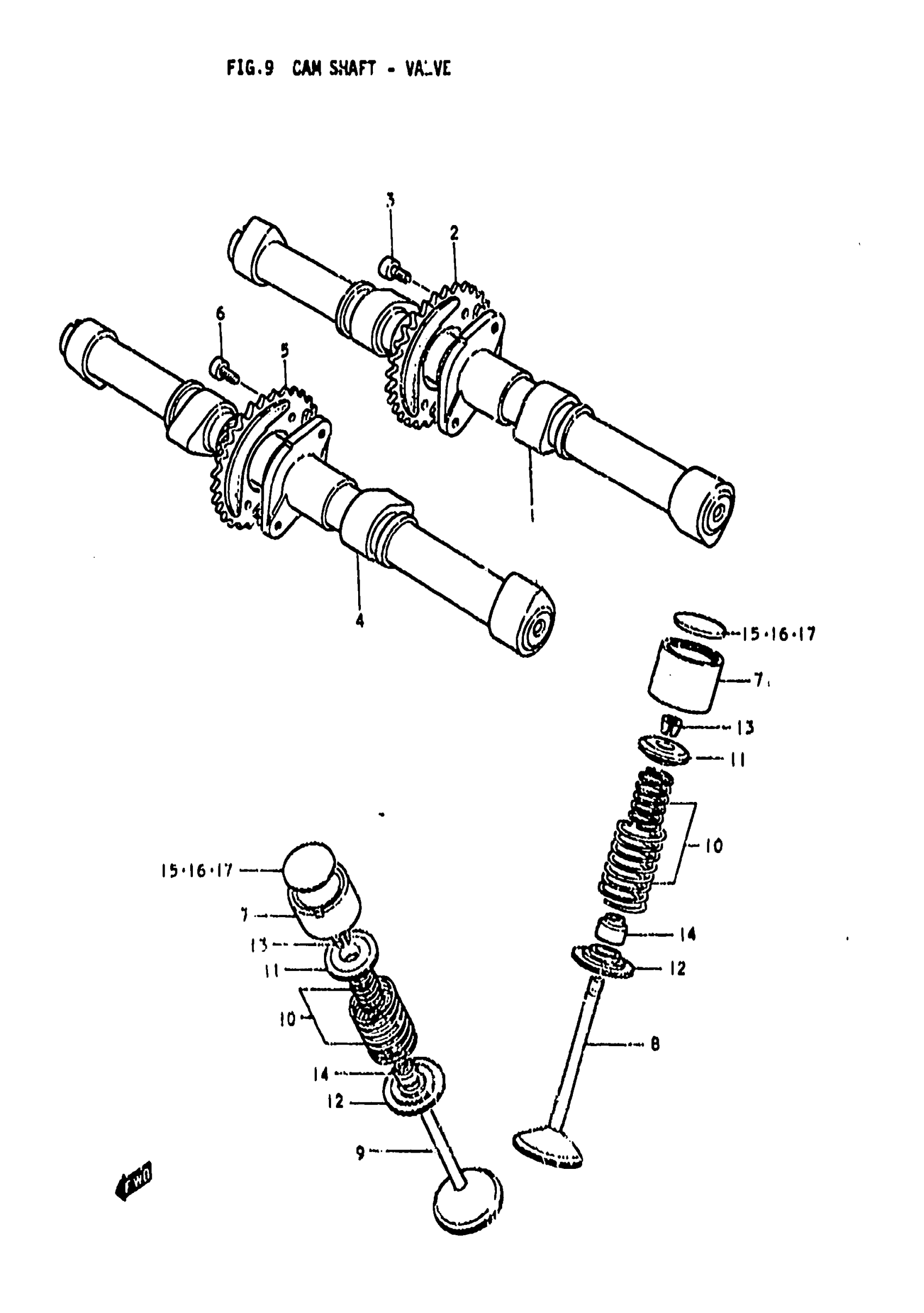

Suzuki GS850G (1979) CAM SHAFT-VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE This part replaces 12711-49000.

12711-49001

Unavailable

2

SPROCKET, INTAKE (NT:30) | NT:30 This part replaces 12741-45001.

12740-45042

Unavailable

3

BOLT, NO.3 This part replaces 09106-06024.

07130-0610B

$1.23

4

CAM SHAFT, EXHAUST This part replaces 12721-49000.

12721-49001

Unavailable

5

SPROCKET (NT:30) | NT:30 This part replaces 12751-45001.

12750-45041

Unavailable

6

BOLT, NO.3 This part replaces 09106-06024.

07130-0610B

$1.23

7

TAPPET This part replaces 12891-45000.

12891-45001

$63.26

8

VALVE, INTAKE This part replaces 12911-45011.

12911-45030

Unavailable

9

VALVE, EXHAUST This part replaces 12912-45011.

12912-45021

Unavailable

10

SPRING SET,VALV This part replaces 12900-45810.

12920-45011

$20.87

11

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

$9.17

12

SEAT, SPRING

12933-45001

$7.07

13

COTTER, VALVE This part replaces 12900-45820.

12932-45010

$2.60

14

OIL SEAL

09289-07002

$7.31

15

SHIM, TAPPET (T:2.15) | 0~8)T:2.15 This part replaces 12892-45000.

12892-45000-215

$24.43

15

SHIM, TAPPET (T:2.20) | 0~8)T:2.20 This part replaces 12892-45001.

12892-45000-220

$24.43

15

SHIM, TAPPET (T:2.25) | 0~8)T:2.25 This part replaces 12892-45002.

12892-45000-225

$24.43

15

SHIM, TAPPET (T:2.30) | 0~8)T:2.30 This part replaces 12892-45003.

12892-45000-230

$24.43

15

SHIM, TAPPET (T:2.35) | 0~8)T:2.35 This part replaces 12892-45004.

12892-45000-235

$24.43

15

SHIM, TAPPET (T:2.40) | 0~8)T:2.40 This part replaces 12892-45005.

12892-45000-240

$24.43

15

SHIM, TAPPET (T:2.45) | 0~8)T:2.45 This part replaces 12892-45006.

12892-45000-245

$23.57

15

SHIM, TAPPET (T:2.50) | 0~8)T:2.50 This part replaces 12892-45007.

12892-45000-250

$23.57

15

SHIM, TAPPET (T:2.55) | 0~8)T:2.55 This part replaces 12892-45008.

12892-45000-255

$23.57

16

SHIM, TAPPET (T:2.60) | 0~8)T:2.60 This part replaces 12892-45009.

12892-45000-260

$16.40

16

SHIM, TAPPET (T:2.65) | 0~8)T:2.65 This part replaces 12892-45010.

12892-45000-265

$16.72

16

SHIM, TAPPET (T:2.70) | 0~8)T:2.70 This part replaces 12892-45011.

12892-45000-270

$16.72

16

SHIM, TAPPET (T:2.75) | 0~8)T:2.75 This part replaces 12892-45012.

12892-45000-275

$24.43

16

SHIM, TAPPET (T:2.80) | 0~8)T:2.80 This part replaces 12892-45013.

12892-45000-280

$23.57

16

SHIM, TAPPET (T:2.85) | 0~8)T:2.85 This part replaces 12892-45014.

12892-45000-285

$24.43

16

SHIM, TAPPET (T:2.90) | 0~8)T:2.90 This part replaces 12892-45015.

12892-45000-290

$24.43

16

SHIM, TAPPET (T:2.95) | 0~8)T:2.95 This part replaces 12892-45016.

12892-45000-295

$24.43

16

SHIM, TAPPET (T:3.00) | 0~8)T:3.00 This part replaces 12892-45017.

12892-45000-300

Unavailable

17

SHIM, TAPPET (T:3.05) | 0~8)T:3.05 This part replaces 12892-45018.

12892-45000-305

$24.43

17

SHIM, TAPPET (T:3.10) | 0~8)T:3.10 This part replaces 12892-45019.

12892-45000-310

$24.43

18

SHIM SET | INCLUDUS REF. NO. 19 & 15-1~17-2. (3PCS.EACH); Includes Item(s) 19 This part replaces 12800-45810.

12800-45811

Unavailable

19

CASE, TAPPET SHIM | NOT SHOWN This part replaces 99000-69480.

99000-69521

Unavailable
