1979 Suzuki GS850G Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1979 Suzuki GS850G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

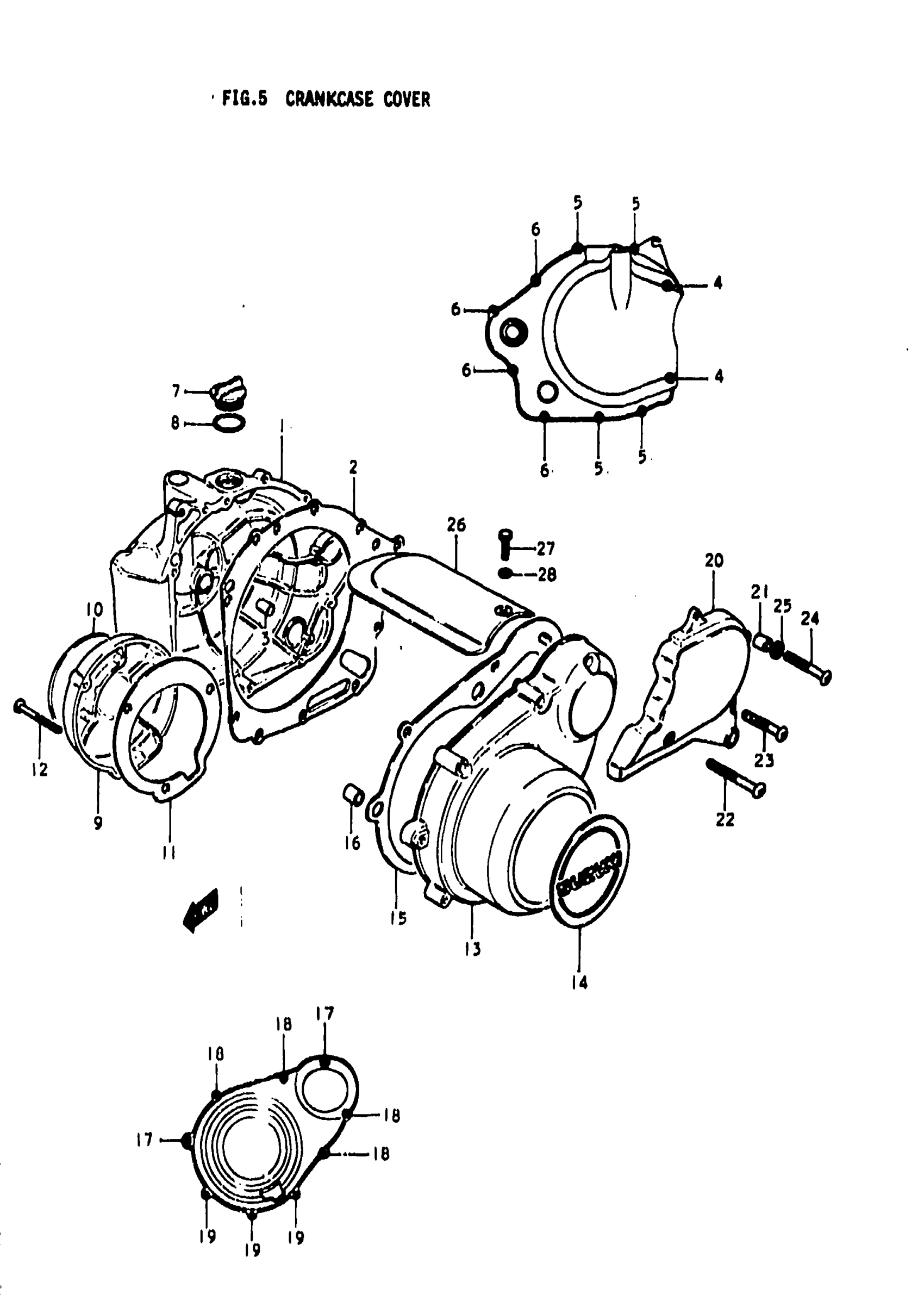

1979 Suzuki GS850G Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CIUTCH

11340-45100

1
Out of stock

2

GASKET,CLUTCH This part replaces 11482-45100.

11482-45100-H17

1
Out of stock

3

PIN

04211-09129

2
Out of stock

4

SCREW This part replaces 02112-06658.

02112-06657

2
Out of stock

5

SCREW This part replaces 02112-06258.

02112-06257

4
Out of stock

6

SCREW This part replaces 02112-06208.

02112-06207

4
Out of stock

7

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

1
Out of stock

8

O RING

09280-32005

1
Out of stock

9

COVER, CONTACT BREAKER This part replaces 11381-49000.

11381-49002

1
Out of stock

10

EMBLEM This part replaces 68235-45100.

68235-45200

1
Out of stock

11

GASKET

11491-45000

1
Out of stock

12

SCREW (4X30) This part replaces 02111-04308.

09125-04023

3
Out of stock

13

COVER, GENERATOR This part replaces 11351-45000.

11351-45001

1
Out of stock

14

EMBLEM This part replaces 68233-45100.

68233-45200

1
Out of stock

15

GASKET,MAG COVE This part replaces 11483-45000.

11483-45000-H17

1
Out of stock

16

PIN This part replaces 09206-13001.

04211-13189

1
Out of stock

17

SCREW (6X45) This part replaces 02112-06458.

02112-06457

2
Out of stock

18

SCREW (6X40) This part replaces 02112-06408.

02112-06407

4
Out of stock

19

SCREW This part replaces 02112-06358.

02112-06357

3
Out of stock

20

COVER, SECONDARY DRIVE UNIT This part replaces 11360-45100.

11360-49101

1
Out of stock

21

PIN

04211-09129

1
Out of stock

22

SCREW

02112-06307

1
Out of stock

23

SCREW This part replaces 02112-06208.

02112-06207

2
Out of stock

24

SCREW This part replaces 02112-06258.

02112-06257

1
Out of stock

25

.WASHER This part replaces 08322-11068.

08322-0106B

1
Out of stock

26

COVER, STARTER MOTOR This part replaces 11382-49001.

11382-49002

1
Out of stock

27

BOLT This part replaces 01104-05108.

01500-0510B

2
Out of stock

28

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock
