1983 Suzuki GS750S Cylinder Head Diagram

← All diagrams

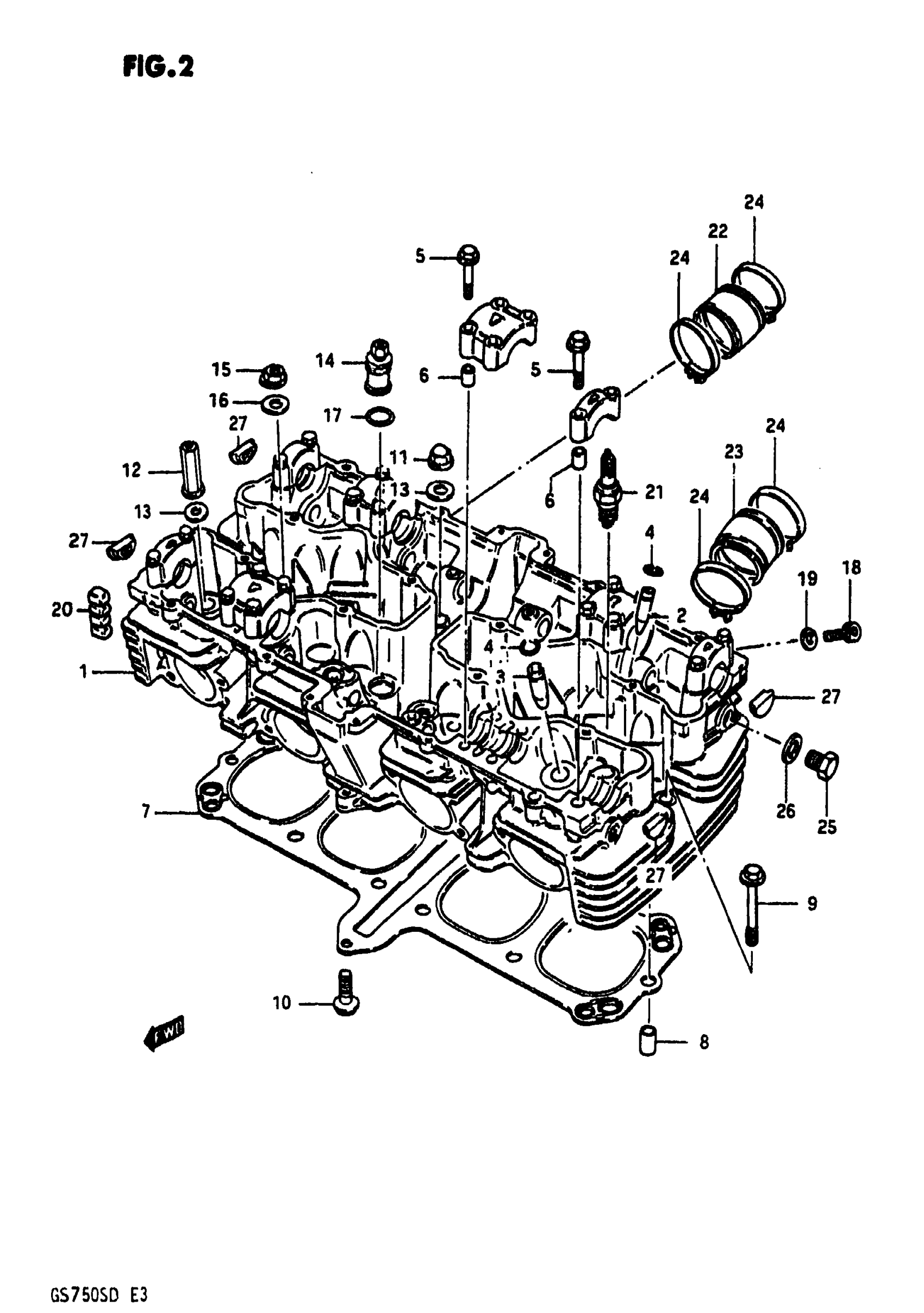

Find the part on the Cylinder Head diagram for your 1983 Suzuki GS750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS750S Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD SET | Includes Item(s) 2 - 6

11100-45470

1
Out of stock

2

GUIDE, INTAKE VALVE

11115-49290

8
Out of stock

3

GUIDE, EXHAUST VALVE

11115-49290

8
Out of stock

4

.RING (10X85)

09381-10004

16
Out of stock

5

BOLT (6X39)

09103-06026

24
Out of stock

6

PIN

09206-08001

16
Out of stock

7

GASKET

11141-45410

1
Out of stock

8

PIN

04211-11189

2

$1.94

In stock

9

2

$3.58

In stock

10

BOLT This part replaces 01517-06305.

01550-0630A

1
Out of stock

11

2

$6.13

In stock

12

NUT

09159-10029

4
Out of stock

13

GASKET

09168-10017

6

$2.94

In stock

14

SEAL NUT

11145-49200

2
Out of stock

15

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

4
Out of stock

16

WASHER

09160-10039

4
Out of stock

17

O RING

09280-17002

2
Out of stock

19

GASKET

09168-05010

4
Out of stock

20

RUBBER PAD (N9->4)

11251-36500

4

$6.68

In stock

21

4

$3.17

In stock

22

PIPE, INTAKE RH

13111-45500

2
Out of stock

23

PIPE, INTAKE RH This part replaces 13121-45500.

13111-45500

2
Out of stock

24

CLAMP

09402-50306

8

$4.71

In stock

25

4

$3.63

In stock

26

GASKET

09168-14004

4

$1.96

In stock

27

PLUG, CYLINDER HEAD

09241-23002

4

$5.98

In stock
